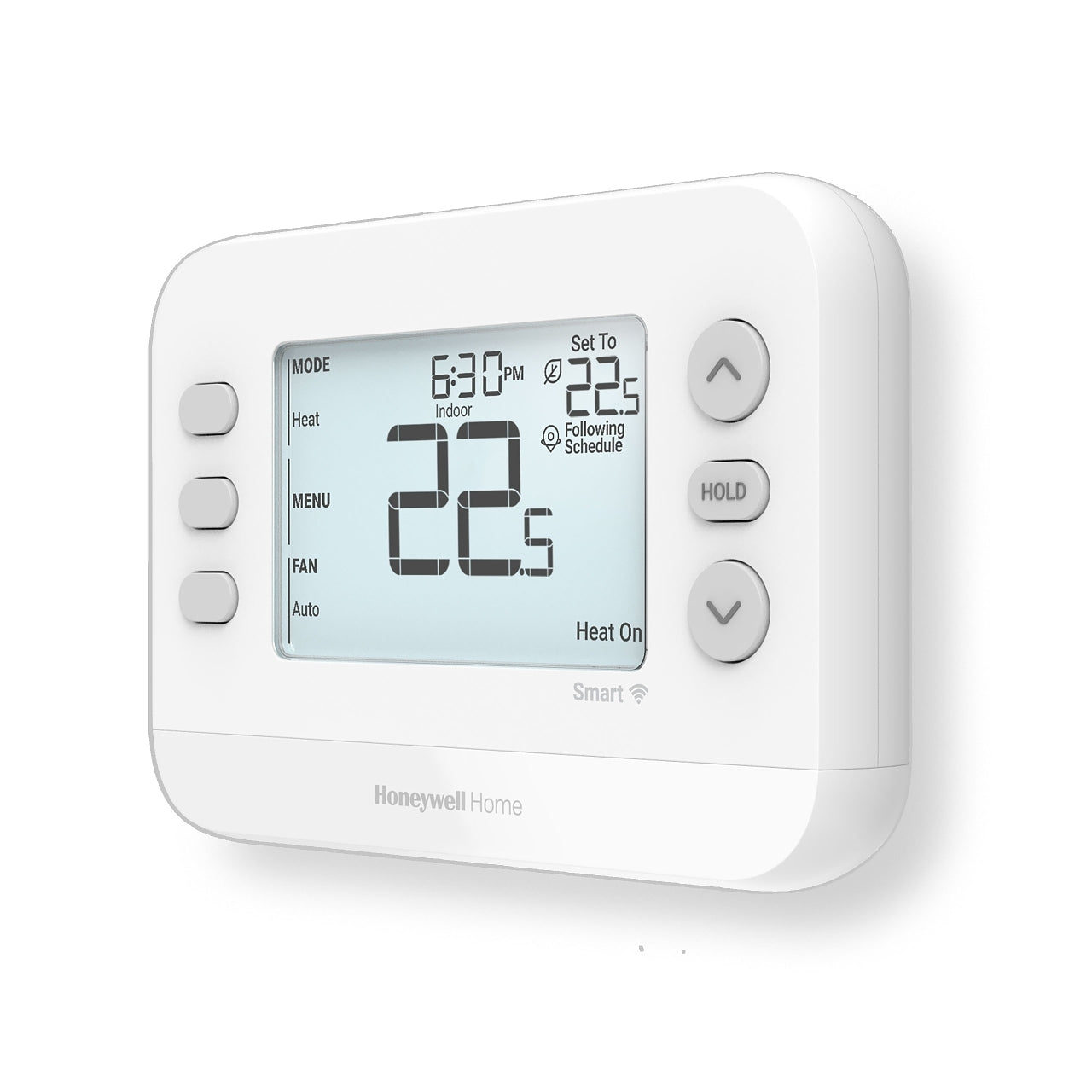

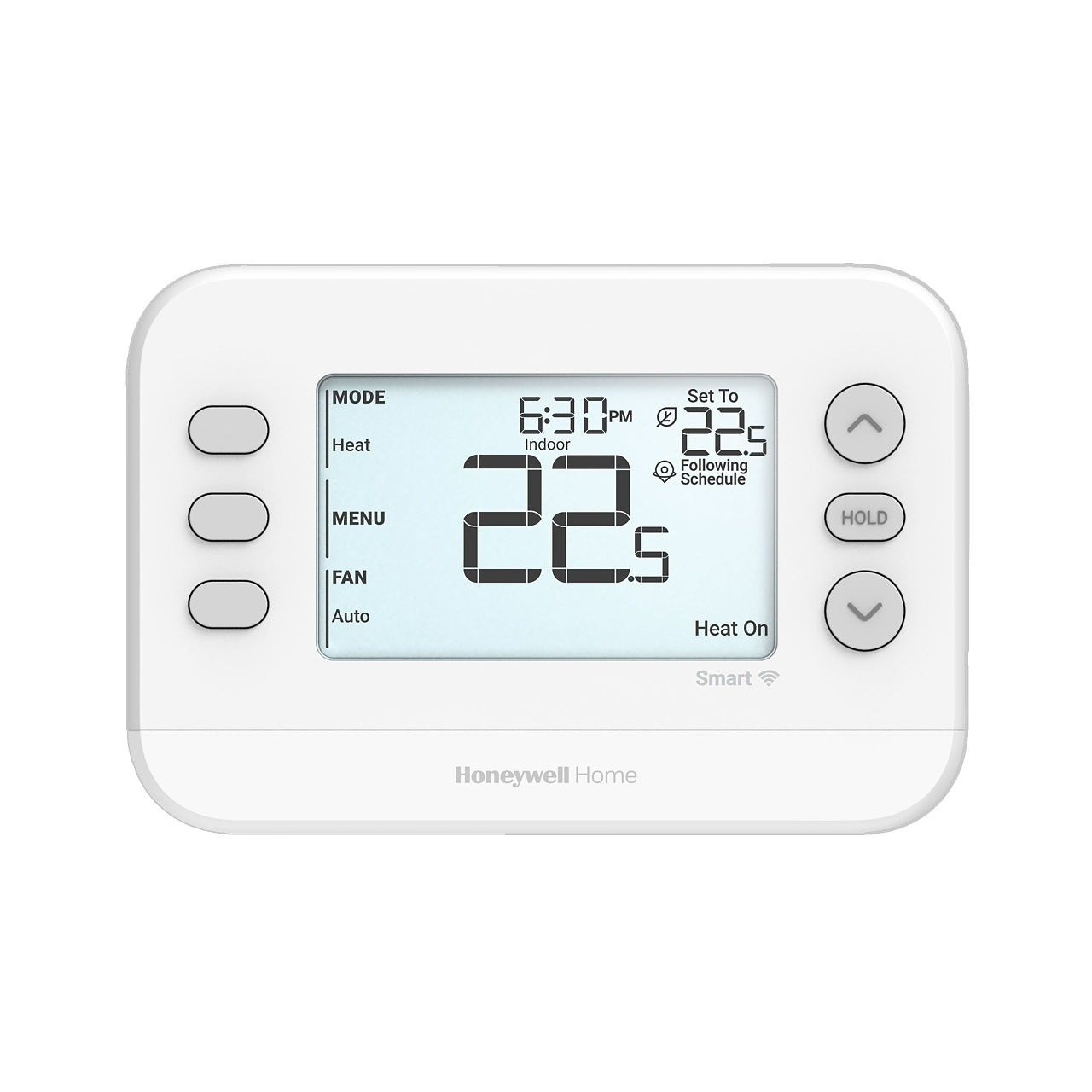

Honeywell TH2320WF4010/U Th2320wf4010/U 3H/2C S200 Wifi

Product Description

The Honeywell TH2320WF4010/U is a 3H/2C S200 WIFI. This thermostat is ENERGY STAR certified and designed for ease of use. It supports single-stage 1H/1C or up to 3H/2C heat pump and 2H/2C conventional systems. The UWP wall plate supports speedy installation and easy upgrades.

• UWP wall plate supports speedy installation
• Private label with customized snap-on accent piece
• Homeowners can control from anywhere using the First Alert by Resideo app

Product Highlights

The Honeywell TH2320WF4010/U thermostat offers broad system compatibility and flexible scheduling options.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: TH2320WF4010/U

Technical Specifications

• Application: 24 Vac heat + cool systems. Gas, Oil, Electric, or Steam/Radiant hot water Systems. Heat pumps with Auxiliary Heat
• Thermostat Type: Smart, WiFi, Programmable, Digital
• Stages: Up to 3 Heat/2 Cool Heat Pumps, Up to 2 Heat/2 Cool Conventional Systems
• Display Type: LCD Screen
• Display Size: 4.84 sq. in.
• Display Language: English
• Displayed Information: Mode, Current Temperature, Set Temperature, Status Display, Fan, Time
• Modes of Operation: Heat, Off, Cool, Auto, Emergency Heat
• Program Type: 7-Day Programmable, 5-1-1 Programmable, 5-2 Programmable, 1 Week
• Energy Star Certified: Yes
• Alerts and Reminders: Heat Pump Failure, Memory Error, Sensor Error, Filter Change
• Heat-Cool Changeover: Auto or Manual
• Power Supply: Hardwired
• Power Source: Hardwired
• Frequency: 60 Hz
• Includes: Thermostat, UWP mounting plate, Decorative cover plate with J-box adaptor, Mounting hardware, Literature
• For Use With: C7089U1006 wired outdoor sensor
• WiFi: Yes
• Ambient Operating Temperature (Max): 120 °F, 49 °C
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Differential Temperature: ± 1 °F, ± 0.5 °C
• Operating Relative Humidity (Max): 90% RH, non-condensing
• Operating Relative Humidity (Min): 5% RH, non-condensing
• Temperature Accuracy: 1 °F, 0.5 °C
• Electrical Connection Type: UWP Mounting System
• Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C
• Set point Temperature (Min): Heat: 32 °F, Cool: 50 °F, Heat: 0 °C, Cool: 10 °C
• Switch Type: Relay
• Product Height: 3.44 in, 87 mm
• Product Width: 5.13 in, 130 mm
• Product Depth: 1.188 in , 29.5 mm
• Features: ENERGY STAR Certified, Backlit Display , Filter Change Reminder
• Model Name: S200 FocusPRO
• Controller Type: Amazon Alexa, Google Assistant, Smartphone app
• Special Feature: Designed for professional ease-of-use
• Specific Uses For Product: Air Conditioner, Heating
• Temperature Control Type: Programmable
• Connectivity Technology: Wi-Fi
• Shape: Rectangular
• Control Type: Button Control
• Control Method: App
• Connectivity Protocol: Wi-Fi
• Mounting Type: Wall Mount
• Style: Modern
• Backlight: No
• Number of Batteries: 1 AAA batteries required.
• Smart Home Compatibility: Smart Home Compatible
• Item model number: TH2320WF4010/U
• System staging: 3H/2C heat pump or 2H/2C conventional (TH2320WF4010 model)
• Power & wiring: 24 VAC with R & C required (C-wire needed for S200 smart models)
• Wi-Fi: 2.4 GHz or 5 GHz home networks
• Set-point ranges: Heat 32–90 °F · Cool 50–99 °F
• Operating conditions: 32–120 °F, 5–90% RH non-condensing
• Electrical (device input): 1.1 VA @ 24 VAC, 60 Hz
• Typical control terminals: W, W2/Aux, E, Y, Y2, G, O/B, L/A, R, C
• Voltage Rating: 20/30 Volt AC 60 Hertz
• Current Rating: 0.02 to 1 Amp (Cooling/Heating), 0.02 to 0.05 Amp (Fan)
• Temperature Rating: 32 to 102 Deg F
• Type: 7/5-1-1/5-2 Day/1 Week Programmable/Non-Programmable, 3-Heat/2-Cool Heat Pump, 2-Heat/2-Cool Conventional, Auto/Manual Changeover, Dual Fuel
