RESIDEO Resideo TH1320U4002 FocusPRO N100 Non-Programmable Thermostat 24 Vac (3H/2C)
RESIDEO Resideo TH1320U4002 FocusPRO N100 Non-Programmable Thermostat 24 Vac (3H/2C)

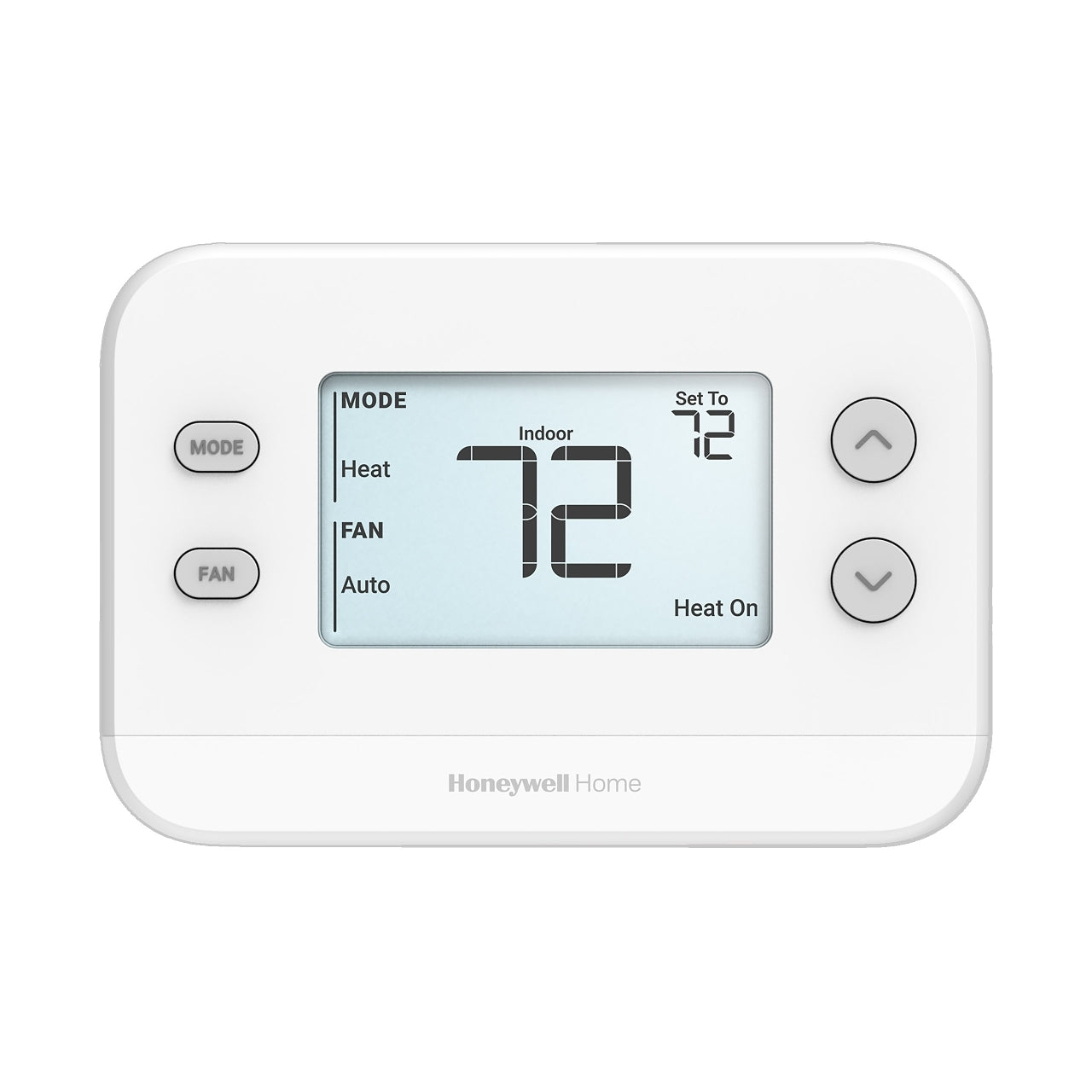

Resideo TH1320U4002 FocusPRO N100 Non-Programmable Thermostat 24 Vac (3H/2C)

Brand: RESIDEO
SKU: TH1320U4002
Availability: In Stock

Ships same day if ordered by 12 pm
$73.31
$73.31
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Resideo TH1320U4002 FocusPRO N100 is a non-programmable digital thermostat designed for professional installation and manual control of multi-stage residential HVAC systems. It supports up to 3 heat/2 cool heat pump systems and up to 2 heat/2 cool conventional systems, offers a large LCD with optional always-on backlight when hardwired, UWP mounting for fast installation, and dual-fuel and wired outdoor sensor compatibility.

  • Supports up to 3H/2C heat pump and up to 2H/2C conventional systems; relay switching and multiple operation modes (Heat, Off, Cool, Auto, Emergency Heat).
  • Large 4.09 sq. in. LCD display with configurable settings and optional always-on backlight when hardwired; snap-on interchangeable accent piece for private labeling.
  • Power via 24 Vac hardwire or 2 AA batteries; UWP mounting plate, fan lockout option, selectable filter reminders.

Product Highlights

Non-programmable multi-stage thermostat with LCD display, UWP mounting, optional backlight, and dual-fuel/outdoor sensor compatibility.

Product Information

Standard Information

  • Brand: RESIDEO
  • Manufacturer Part Number: TH1320U4002
Technical Specifications
Brand
Resideo
Manufacturer Part Number
TH1320U4002
Model
FocusPRO N100 (TH1320U4002)
Type
Non-programmable digital thermostat
Number of Stages
Up to 3 Heat / 2 Cool (heat pump); Up to 2 Heat / 2 Cool (conventional)
Input Voltage
24 Vac
Power Supply
Hardwired (24 Vac) or battery (2 AA)
Frequency
60 Hz
Display Type
LCD
Display Size
4.09 sq. in.
Display Language
English
Set Point Range
Heat: 32 to 90 F; Cool: 50 to 99 F
Temperature Accuracy
±1 F
Differential
±1 F
Operating Temperature
32 to 120 F (0 to 49 C)
Operating Relative Humidity
5% to 90% RH, non-condensing
Dimensions
3.44 in H x 5.13 in W x 1.188 in D (87 x 130 x 29.5 mm)
Mounting Type
UWP horizontal mounting
Batteries
2 AA alkaline
Modes
Heat, Off, Cool, Auto, Emergency Heat
Fan Control
Auto/On with fan lockout after cool call option
Switch Type
Relay
Compatible With
Dual-fuel systems; C7089U1006 wired outdoor sensor
Includes
Thermostat, UWP mounting plate, decorative cover plate with J-box adapter, mounting hardware, AA batteries, literature
