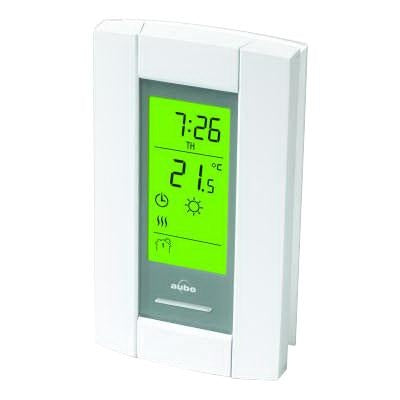

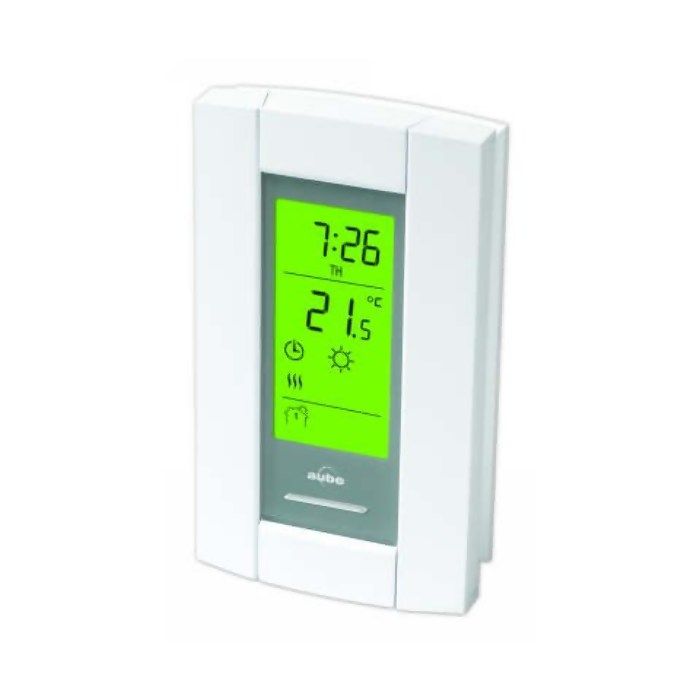

Honeywell TH115-A-120S/U Line Volt 7 Day Programmable Thermostat 40 to 86 deg F

Product Description

The Honeywell TH115-A-120S/U is a programmable thermostat designed for electric heating systems. This device is suitable for baseboard heaters, radiant ceilings, convector, or fan-forced heater applications. It offers temperature settings ranging from 32 degrees Fahrenheit to 158 degrees Fahrenheit. The thermostat supports a maximum load of 16.7 Amps, and it operates at 120 Volt AC.

• Advanced temperature control for consistent comfort.
• Early start function to reach desired temperature on time.
• Battery-free backup ensures schedules remain intact after power outages.

Product Highlights

The Honeywell TH115-A-120S/U features a backlit display for easy reading and a temporary bypass function that allows for manual temperature overrides. It has a sleek design with hidden programming buttons, making it user-friendly and efficient.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: TH115-A-120S/U

Technical Specifications

• Application: Electric Heating, Baseboard Heater, Radiant Ceiling, Convector and Fan-Forced Heater
• Control Range: 40 to 86 deg F
• Differential: 1 deg F
• Dimensions: 4.9 x 2.8 x 0.9 inches
• Power Source: Hardwired
• Sensor Type: Thermistor
• Series: TH115
• Switch Action: SPST
• Voltage Rating: 120 VAC
