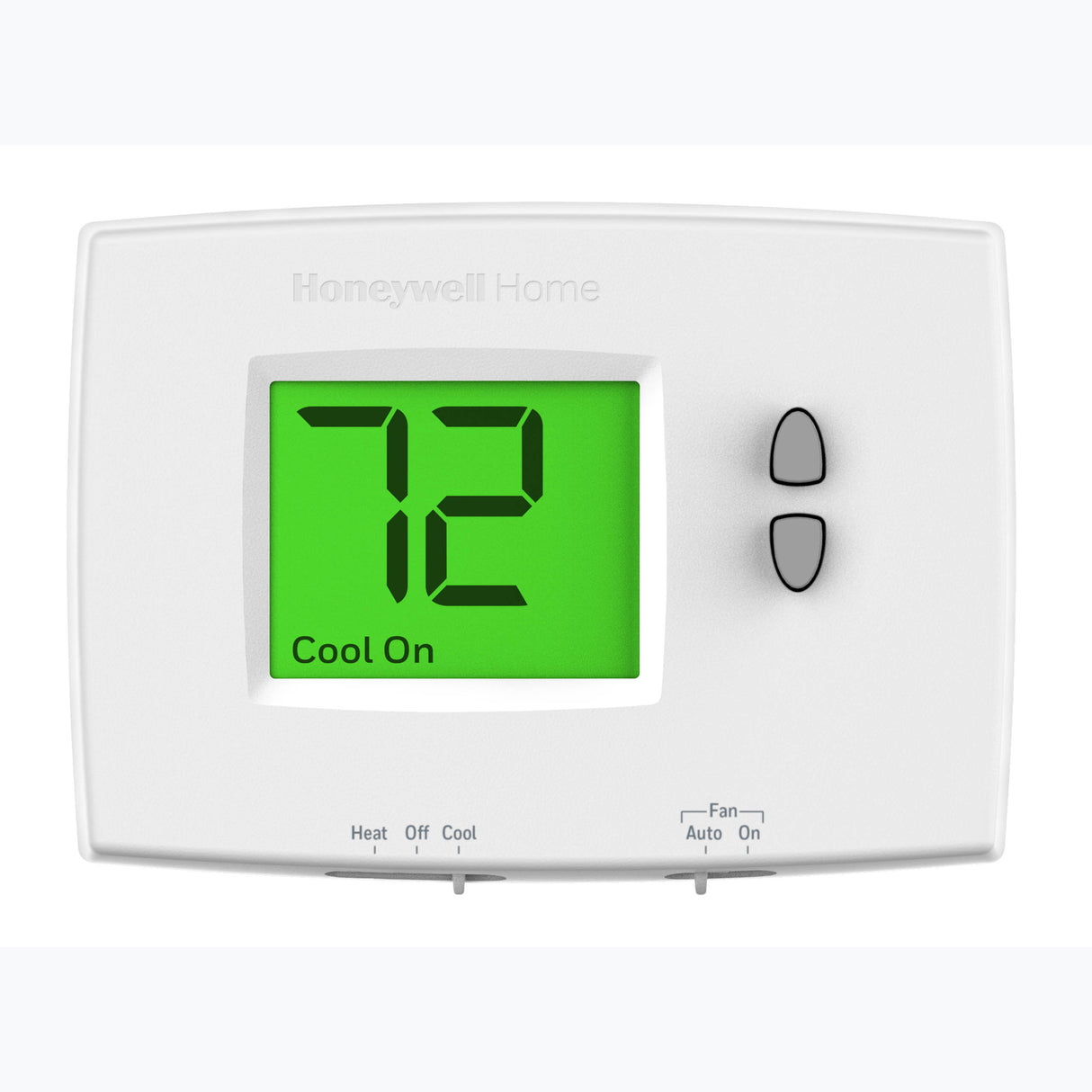

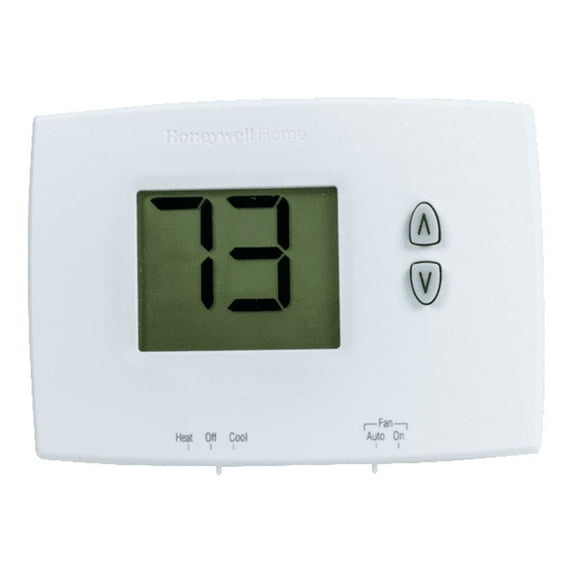

Honeywell th1110e1000/U e1 pro non-programmable thermostat 1 heat/1 cool

Product Description

The Honeywell TH1110E1000/U E1 Pro non-programmable thermostat is simple and easy to use. It features an easy-to-read display and simple operation. It provides precise comfort accuracy and fits expectations and budget. It is suitable for single-stage heat systems, single-stage cool systems, gas systems, oil systems, and electric systems.

• Simple to install
• Large, easy to read display
• Easy-to-use

Product Highlights

The thermostat offers precise comfort, minimal callbacks, and retrofit options for existing setups.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: TH1110E1000/U

Technical Specifications

• Activator: Push Button
• Application: 24 VAC Systems, Single Stage Heat Systems, Single Stage Cool Systems, Gas Systems, Oil Systems, Electric Systems, Steam / Gravity Systems, Single Stage Heat Pump Systems Without Aux Heat
• Changeover: Manual
• Color: White
• Display Type: 2.4 sq-in LCD
• Frequency: 50/60 Hz
• Includes: Thermostat, Wall Plate, Mounting Hardware, Literature
• Mounting Type: Wall Mount
• Options: Fan Control
• Power Source: Hardwired or Battery
• Stages: Up to 1 Heat / 1 Cool Conventional Systems, Up to 1 Heat / 1 Cool Heat Pump Systems
• Type: Non Programmable
• Voltage: 24 V
• Wattage: 0.4 to 30 W
• Accuracy: Plus/Minus 1 deg F
• Amperage Rating: 0.02 - 1 A Running and Heat, 0.02 - 0.05 A Fan
• Humidity Rating: 5 - 90% Relative Humidity, Non-Condensing
• Item Name: Non-Programmable Thermostat
• Model: E1 Pro
• Mounting: Horizontal
• Programmability: Non-Programmable
• Setting Temperature: 40 - 90 deg F Heat, 50 - 99 deg F Cool
• Switch Position: HEAT-OFF-COOL-AUTO (System), AUTO-ON (Fan)
• Switch Type: Relay
• Temperature Rating: 32 -120 deg F
• Terminal Designation: RC, R, C, W, Y, G, O, B
• Voltage Rating: 30 VAC
• WiFi: No
• Modes of Operation: Heat; Cool
• Program Type: Manual / Not Programmed
• Alerts and Reminders: Battery Replacement
• Display Language: English
• Energy Star Certified: No
• Control Range: 32 to 102 deg F
• Fan Switching: Auto/On
• Humidity Range: 5 to 90 %
• Series: E1 Pro
• Stages Cool: 1 Heat Pump/1 Conventional
• Stages Heat: 1 Heat Pump/1 Conventional
• System Switching: Heat/Cool/Off
• Temperature Settings per Day: 40 to 90 deg F Heating/50 to 99 deg F Cooling
• Terminal Designations: RC, R, C, W, Y, G, O, B
• Thermostat Type: Non-Programmable
• Features: Backlit Display, Smart control, Google Assistant
• Power type: Battery
• Installation type: Screw-In
• Control type: Button
• Display: Digital
