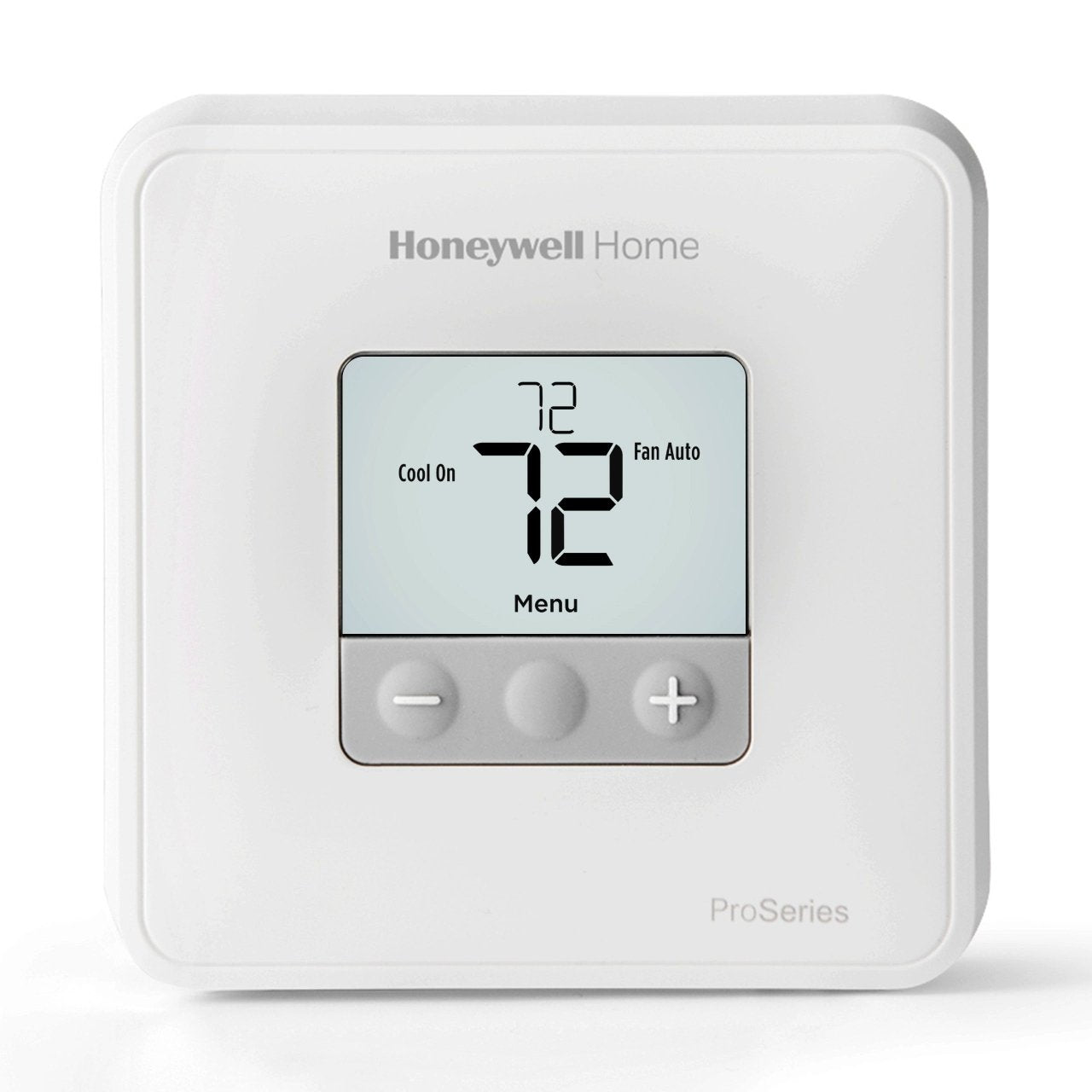

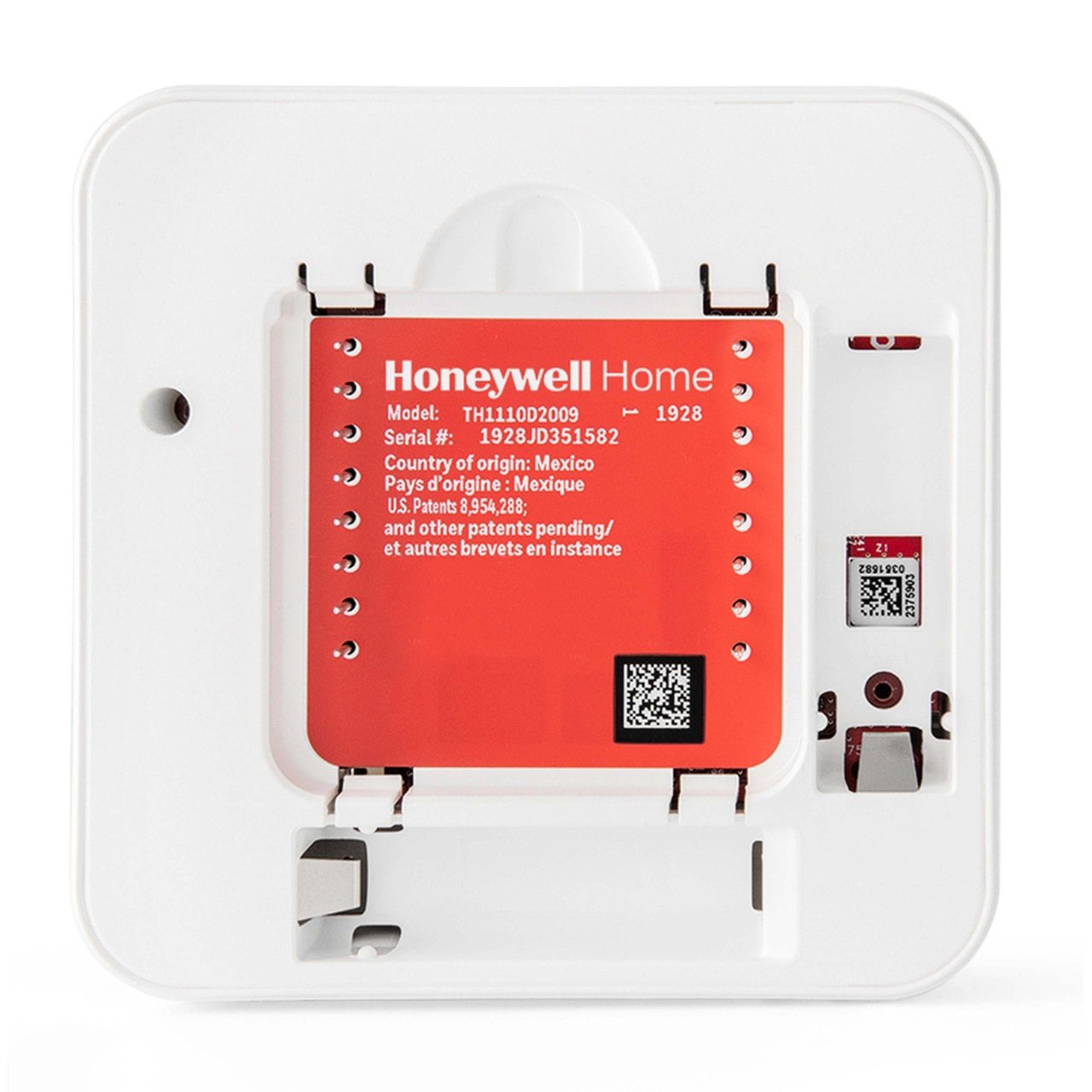

Honeywell TH1110 T1 Non-Programmable Thermostat

Product Description

The HONEYWELL TH1110 T1 Pro Non-Programmable Thermostat features a standard UWP mounting system. Soft key controls and an easy-to-read LED backlight on the 2.37 sq. in. display make this thermostat a practical choice for temperature control. It is compatible with 24 Vac systems, including gas, oil, and electric warm air, hot water coil, hydronic, and steam/gravity systems.

• Simple installation
• Push-button control
• Sleek aesthetic
• Easy to read display

Product Highlights

Ideal for residential use, this thermostat offers straightforward temperature management with a focus on ease of use and clear display.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: TH1110

Technical Specifications

• Thermostat Type: Non programmable
• WiFi: No
• RedLINK: No
• Includes: T1 Pro Thermostat; UWP Mounting System; Honeywell Home Standard Installation Adapter (J-box adapter); Decorative Cover Plate; Screws and anchors; 2 AA Batteries; Installation Instructions and User Guide
• Stages: 1 Heat or 1 Cool Conventional Systems
• Modes of Operation: Heat; Cool
• Program Type: Manual / Not Programmed
• Display Type: LCD Screen
• Display Language: English
• Product Height: 4.06 in, 104 mm
• Product Width: 4.06 in, 104 mm
• Product Depth: 1.09 in, 28 mm
• Energy Star Certified: No
• Features: Backlit Display
• Power Source: Hardwired; Battery Operated
• Application: 1H/1C Conventional Systems, Heat Pumps with No Auxiliary Heat
• Product Features: Easy to Use Soft key controls., Easy to Read LED back light., Comes with the standard UWP mounting system.
• Smart Home Integration: No
• Display Size: 2.37 sq in
• Display Time Format: 24 Hour, 12 Hour (AM/PM)
• Power Supply: Battery Powered, Hardwired
• Battery Life: 1
• Battery Size: AA
• Battery Type: Alkaline
• Sensor Type: Thermistor
• Ambient Operating Temperature (Max): 102 °F, 39 °C
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Differential Temperature: ± 1 °F, ± 0.5 °C
• Backlight Options: None
• Temperature Accuracy: ± 1 °F, ± 0.5 °C
• Electrical Connection Type: UWP Mounting System
• Mounting Type: UWP Wall Plate
• Power Supply Frequency: 50 Hz, 60 Hz
• Set point Temperature (Max): Heat: 90 °F, Heat: 32 °C, Cool: 99 °F, Cool: 37 °C
• Set point Temperature (Min): Heat: 32 °F, Heat: 0 °C, Cool: 50 °F, Cool: 10 °C
• Shipping and Storage Temperature (Max): 120 °F, 49 °C
• Shipping and Storage Temperature (Min): -20 °F, -29 °C
• Mounting Location: Wall
• Switch Type: Relay
• Z-Wave: No
