Resideo TH1100DV1000/U Pro 1000 Heat Only 24 VAC/Battery (Vertical) TH1100DV1000/U

Product Description

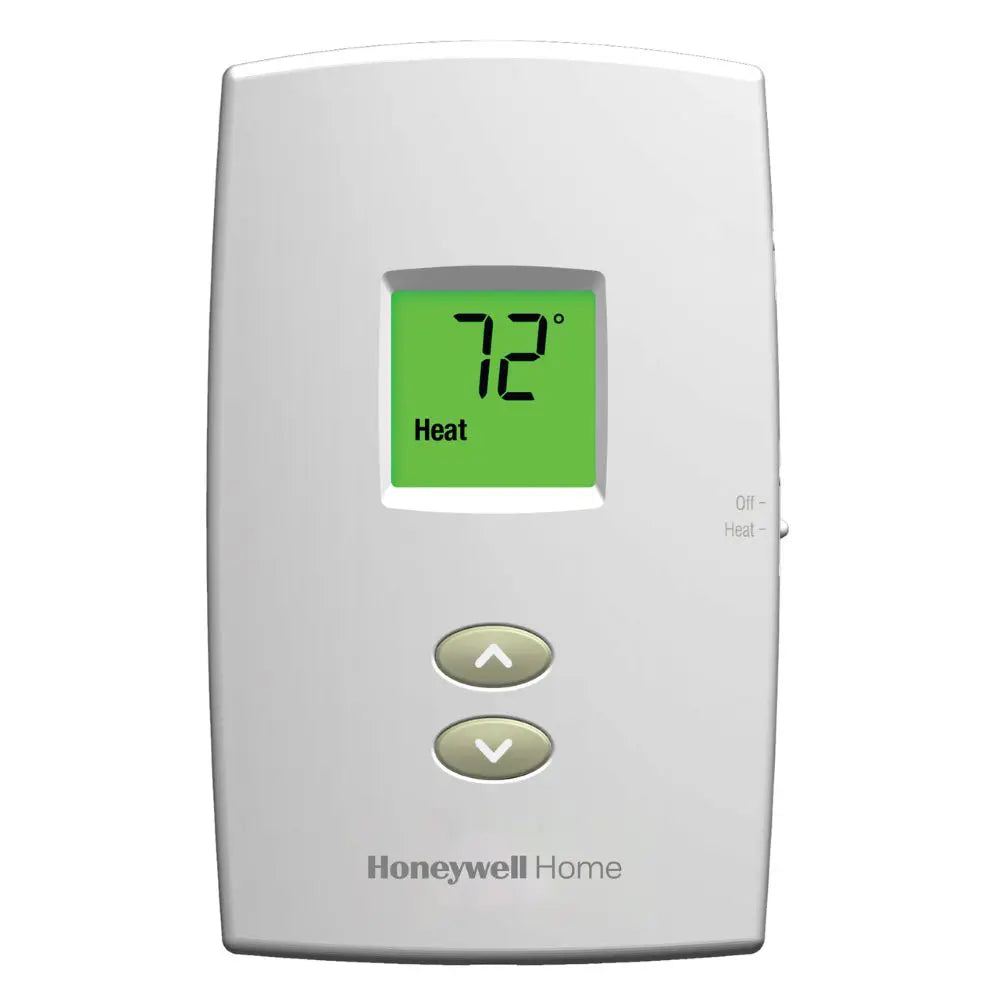

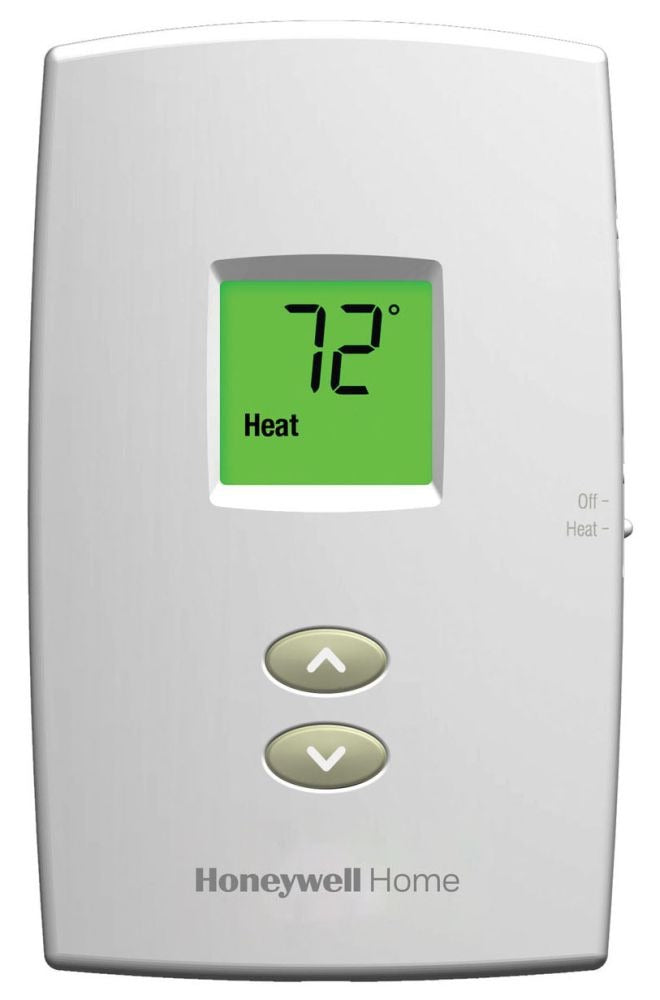

Resideo TH1100DV1000/U is a Pro 1000 series digital, non-programmable thermostat designed for single-stage heat-only systems. The unit is dual powered (battery or hardwired), accepts 20 to 30 VAC or 750 millivolt input, and provides basic on/off temperature control via R, C, and W terminals. The vertical enclosure includes a backlit digital display (1.32 sq in) and measures 2-7/8 in W x 1-1/8 in D x 4-11/16 in H.

• Type: Digital, non-programmable, single-stage (1 heat); manual slide/push controls
• Power: Dual powered — battery or hardwire; voltage rating 20 to 30 VAC / 750 millivolt
• Environmental and performance: Operating temperature range 40 to 90 °F; humidity 5 to 90% RH; heating cycles 2 to 6 per hour

Product Highlights

Single-stage heat control, dual power (battery/hardwired), backlit digital display, compact vertical form factor with R/C/W terminals

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TH1100DV1000/U
