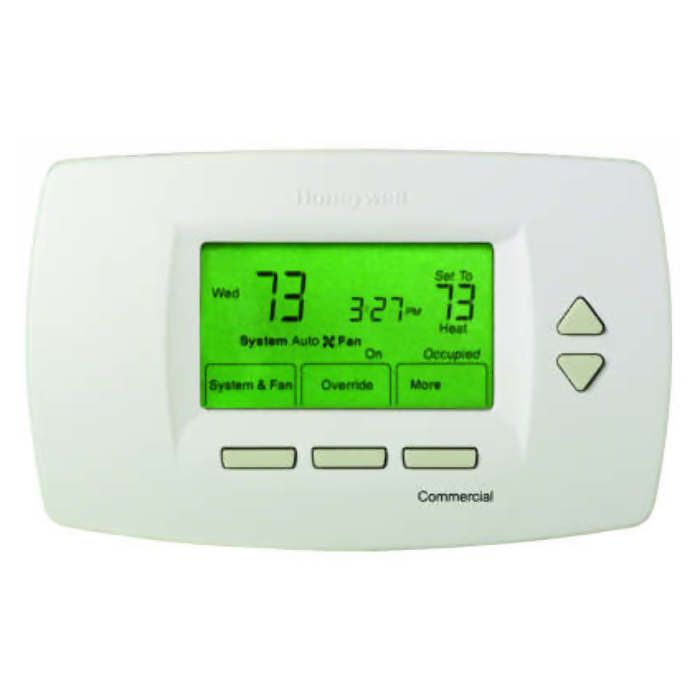

Honeywell TB7220U1012/U CommercialPRO 7000 Thermostat Low Voltage

Product Description

The Honeywell TB7220U1012/U is a programmable thermostat for both conventional and heat pump systems. This model supports up to three heating stages and two cooling stages. It operates at a temperature range of forty to ninety degrees Fahrenheit for heating and fifty to ninety-nine degrees Fahrenheit for cooling. The device is built for 24 VAC systems and features a large, clear LCD display that is easy to read.

• Compatible with conventional and heat pump systems
• Supports multiple stages for heating and cooling
• Easy-to-use menu-driven programming

Product Highlights

This thermostat includes powerful features like real-time clock functions and easy programming options, making it user-friendly. The ergonomic design fits well in any home environment.

Product Information

Standard Information

• Brand: Honeywell
• MPN: TB7220U1012/U

Technical Specifications

• Type: Low Voltage
• Color: Premier White
• Application: Conventional or Heat Pump
• Stages Heat: 3
• Stages Cool: 2
• Voltage Rating: 24 VAC, 50/60 Hz
• Control Range: 40 - 90 deg F Heat, 50 - 99 deg F Cool
• Number of Stages: 3 Heat/2 Cool
• Temperature Settings Per Day: 4
• Programs Per Week: 7
• System Switching: Auto-Heat-Cool-Off-Emergency
• Fan Switching: Auto-On
• Terminal Designations: R, Rc, W, W2, Y, Y2, A, G, C, S1, S2
• Dimensions: 3-3/4 Inch L x 6 Inch W x 1-3/8 Inch D
• Power Source: Hardwired/Battery
• Mounting Type: Horizontal
