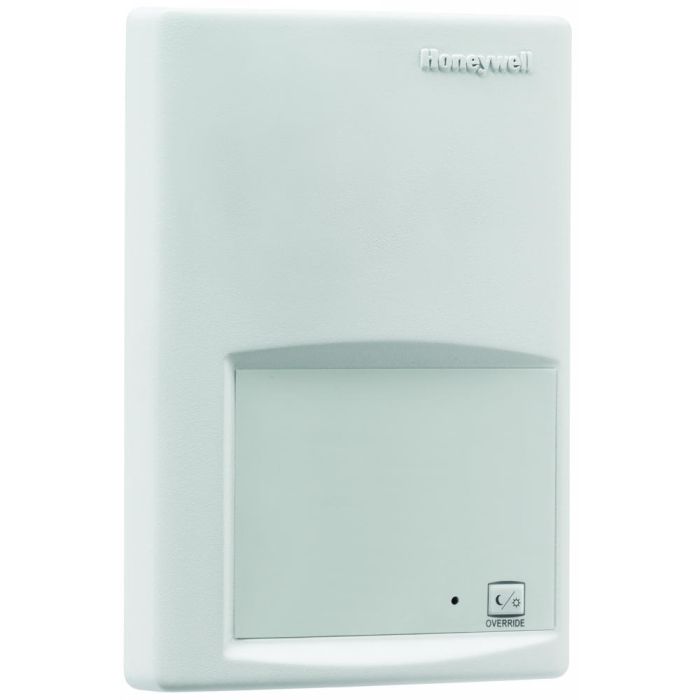

HONEYWELL TB-WALLOVR-1014/U 10K TYPE II WALL TEMP SENSOR, OVERRIDE

Product Description

The HONEYWELL TB-WALLOVR-1014/U is a 10K ohm NTC Type II wall temperature sensor designed with an override feature. This device is suitable for use with the TB7200, TB7300, and TB7600 series communicating thermostats. It provides reliable temperature readings in various environments.

• Compatible with TB series thermostats
• Accurate temperature readings
• Suitable for temperature averaging applications

Product Highlights

This wall sensor enhances temperature control in commercial settings. It is efficient for temperature averaging when used with multiple sensors.

Product Information

Standard Information

• Application: Wall temperature sensor with override
• Mounting: Wall mount

Technical Specifications

• Sensor: 10 K ohm NTC @ 77 F Type II
• Operating Humidity Range: 0 to 95% RH, non-condensing
• Operating Temperature Range: 32 F to 122 F
• Dimensions: 5 inches high x 3 3/8 inches wide x 1 5/32 inches deep
• Shipping and Storage Temperature Range: -22 F to +122 F
