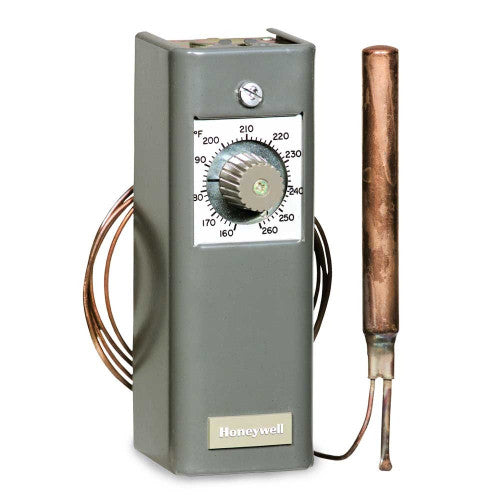

Honeywell T991A1343 proportional temperature controller 24 Vac to 30 Vac 3-9/16 inch bulb length 5 ft capillary

Product Description

The Honeywell T991A1343 is a proportional temperature controller designed for modulating control of water or air temperature. It operates within a 24-30Vac voltage range and features a 55-175 F setpoint temperature range. This controller is suitable for applications in ducts, tanks, and similar environments, providing precise temperature regulation. It includes a 5 ft capillary and a 3-9/16 inch bulb length.

• Fast response models feature a coiled sensing element for quicker response.
• Ambient temperature compensation is included for the case and tubing.
• Sensing element capillary tubing enables remote mounting.

Product Highlights

Modulating control for water or air temperature in ducts and tanks.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: T991A1343
• Country of Origin: United States

Technical Specifications

• Product Type: CONTROLLER
• Country of Origin: United States
• Application: Provide modulating control of water or air temperature in ducts or tanks
• Type: Modulating Remote bulb
• Output Type: Analog
• Analog Output: One 280 Ohm Potentiometer
• Input Voltage: 24 Vac to 30 Vac, 24V
• Frequency: 60 Hz, 50 Hz
• Color: Gray
• Sensor Element: Copper bulb
• Number of Sensor Inputs: 1
• Capillary Length: 5 ft
• Bulb Size: 1/2 in. diameter x 4-3/16 in. long
• Setpoint Temperature Range: 55F to 175 F
• Maximum Operating Temperature: 200 F
• Throttling Range: 3 F to 30 F
• Includes: 107324A Duct Bulb holder
