Honeywell T87N1000/U Heat/Cool Thermostat 24 Vac Pack of 1 T87N1000

Product Description

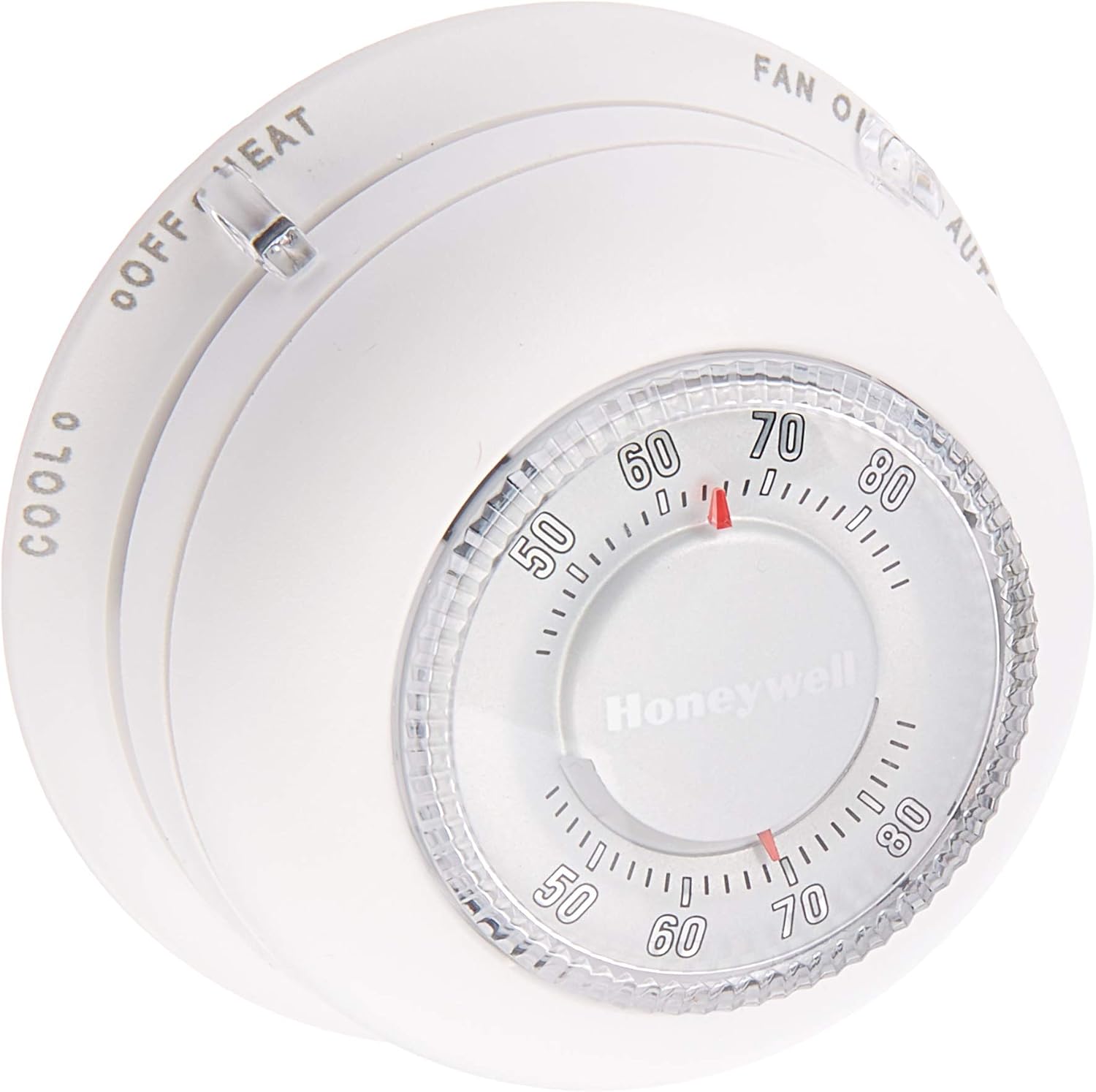

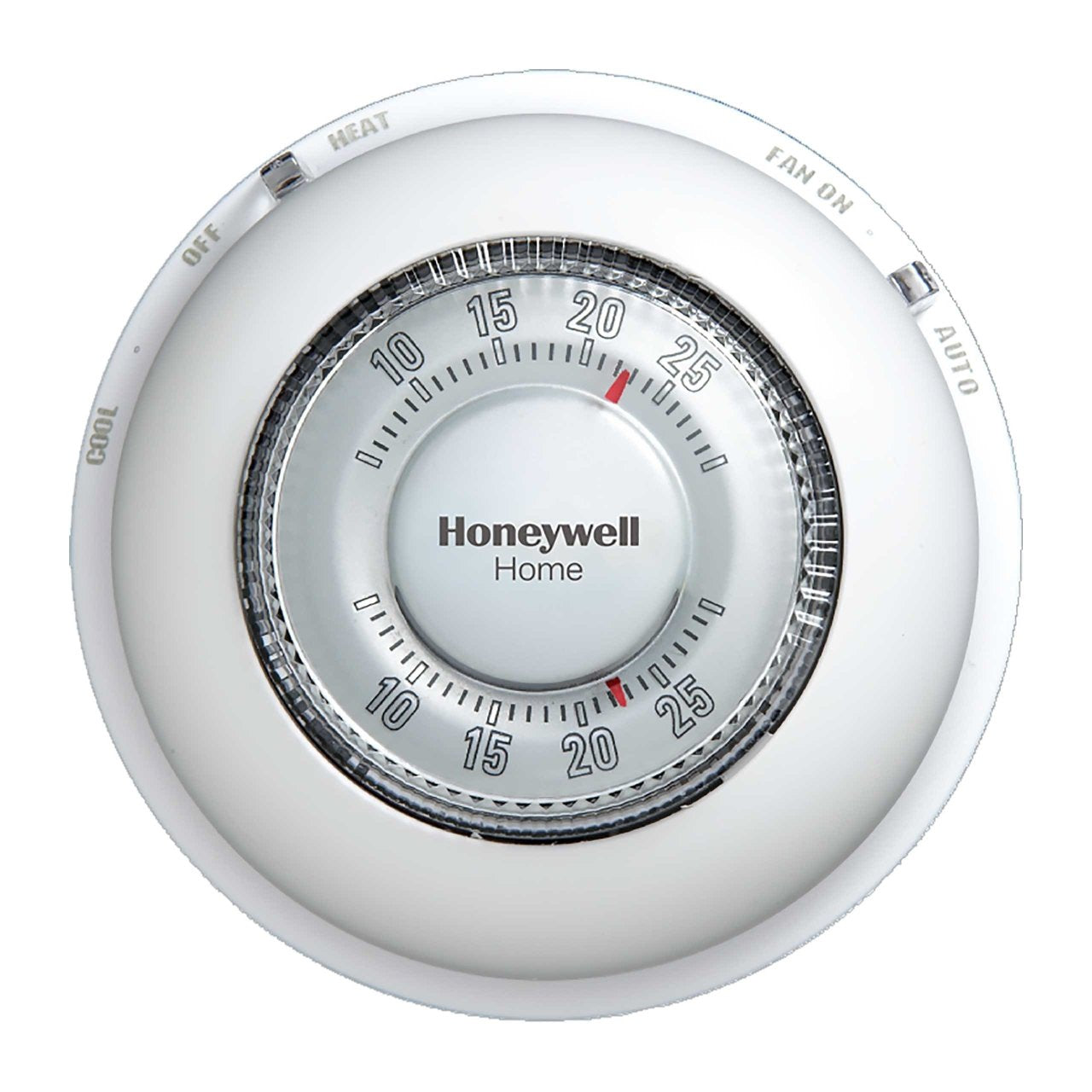

Honeywell T87N1000/U is a round, manual heat/cool thermostat designed for single-stage 24 Vac HVAC systems. The battery-powered unit uses a relay switch with button control and a manual dial display with backlight. It supports 1 heat/1 cool configurations and is suitable for forced air, hot water, steam, and compatible heat pump systems. Typical physical size is compact (approximately 4.5-inch diameter, ~1.5-inch depth).

• Battery powered relay thermostat with manual dial and backlight
• Designed for 24 Vac single-stage systems: 1 heat / 1 cool compatibility
• Compact round design (approximately 4.5 x 4.5 x 1.5 inches diameter x depth)
• Mechanical (bimetal) sensing element, mercury-free
• Adjustable cycles per hour (1, 3, 5, 9)

Product Highlights

Manual round thermostat, relay switching, button control, backlit manual display for single-stage 24 Vac heating and cooling systems

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: T87N1000/U
• Country of Origin: Mexico

Technical Specifications

• Brand: Honeywell
• MPN: T87N1000/U
• Model: T87N1000
• Product type: Non-programmable manual thermostat
• Input Voltage: 24 Vac
• Power Source: Battery powered
• Stages: 1 heat / 1 cool (single-stage)
• Switch Type: Relay
• Control Type: Button control
• Display Type: Manual dial
• Backlight: Yes
• Temperature Range: 40 to 90 F
• Accuracy: ±1 °F
• Amperage (heat/cool running): 0.02 A to 1.0 A
• Shape: Round
• Material: Plastic
• Mounting Type: Wall mounted
• Sensor Element: Bimetal (mechanical sensing element)
• Terminal Designations: R, Rc, W, Y, G, O, B
• Cycles Per Hour: Adjustable 1, 3, 5, 9
• Operating Humidity: 5 to 90% RH, non-condensing
• Programmability: Non-programmable
• Mercury Free: Yes
• Compatibility: Forced air (gas, oil, electric), hot water and steam, heat pumps without backup and other 24 Vac systems
• Package Quantity: 1
• Country of Origin: Mexico
