Honeywell T8775C1005 1-Heat/1-Cool Non-Programmable Thermostat

Product Description

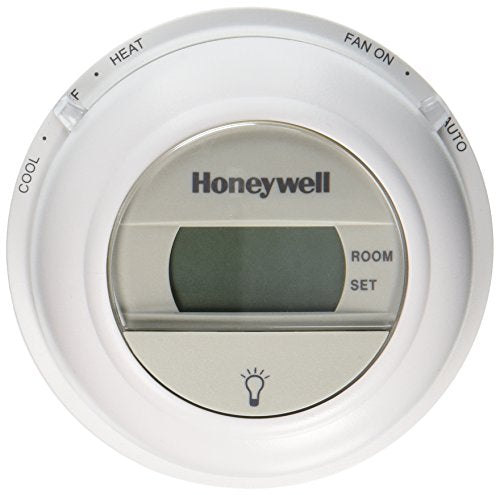

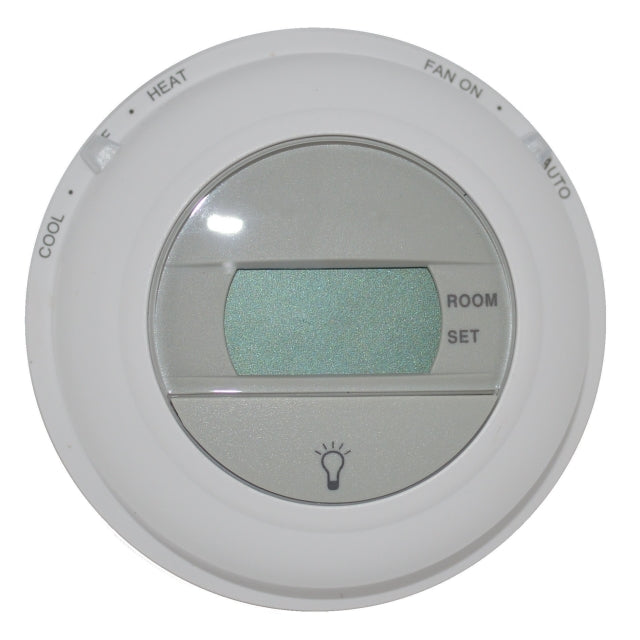

The Honeywell T8775C1005 is a 1-Heat/1-Cool non-programmable thermostat. This digital round thermostat provides 24V control of heat only or heat/cool systems. It features a cover ring that twists for simple temperature adjustments and a one-touch display lighting. The thermostat includes indicators for current or set temperature and specifies heating and cooling modes with snowflake and flame symbols.

• Attractive styling complements any decor
• One-touch backlit display
• Familiar twist-to-see operation

Product Highlights

Digital round thermostat with easy-to-use twist operation and backlit display. Ideal for simple, non-programmable temperature control in residential settings.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: T8775C1005
• Country of Origin: United States

Technical Specifications

• Brand: Honeywell
• Product UPC: 08526724418
• 12-Digit UPC: 085267244183
• MPN: T8775C1005
• Application: 1 Heat/1 Cool
• Voltage: 18 - 30 VAC
• Heat: 40 - 90 deg F
• Cool: 45 - 99 deg F
• Program: No
• Power Source: Hardwire
• Stage: 1 Heat/1 Cool
• Touchscreen: No
• Series-Brand: The Digital Round
• Wireless: No
• Thermostat Type: Digital, Non-Programmable
• Frequency: 60Hz
• Color-Finish: White
• Mfg Color-Finish: Premier White
• Mounting Type: Round
• MfgNum: T8775C1005
• Main Category: HVAC
• Category: Controls
• SubCat: Thermostats
• SubSubCat: Residential
• ItemNum: T8775C1005
• Vendor Name: Honeywell
• Programmability: Non-Programmable
• Stages: 1 Heat/1 Cool
• Voltage Rating: 18 to 30 Volt AC 60 Hertz
• Current Rating: 0.02 to 1.5 Amp Running/6 Amp Inrush (Cooling), 3.5 Amp Inrush (Heating), 0.02 to 0.5 Amp Running/2.5 Amp Inrush (Fan)
• Switch Type: Electronic
• Display Type: 0.75 Square Inch Backlit
• Switch Position: Heat-Off-Cool (System), Auto-On (Fan)
• Includes: Wall Plate, Resistor Assembly, Mounting Screw, Wall Anchor
• Parts Application: Std heat/Cool
• UL Listed: False
• UL Recognized: False
• Terminal Designations: R, Rc, W, Y, G, O, B
• Setting Temperature Range (F): 40 to 90 in heat; 45 to 99 in cool
• Setting Temperature Range (C): 4.5 to 32 in heat; 7 to 37 in cool
• Electrical Ratings: 18 to 30 Vac
• MFR Part No: T8775C1005/U
• Fan Switching: Auto/On
• Finish: Premier White®
• Humidity Range: 5 to 90 %
• Number of Stages: 1
• Sensor Type: Thermistor
• System Switching: Heat/Cool/Off
• Line Voltage (60Hz): 24V AC
• Support Capacitive Touch: False
