Honeywell T7771A1005/U Room Temperature Sensor

Product Description

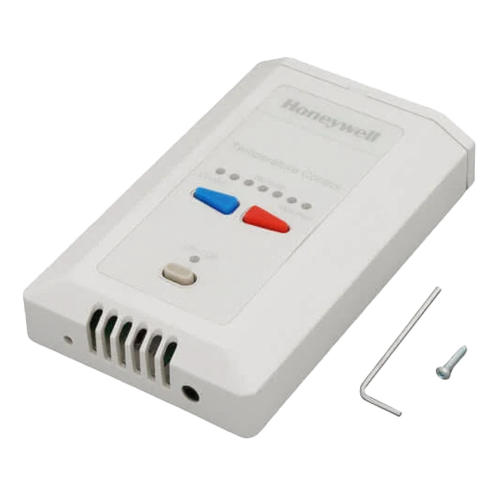

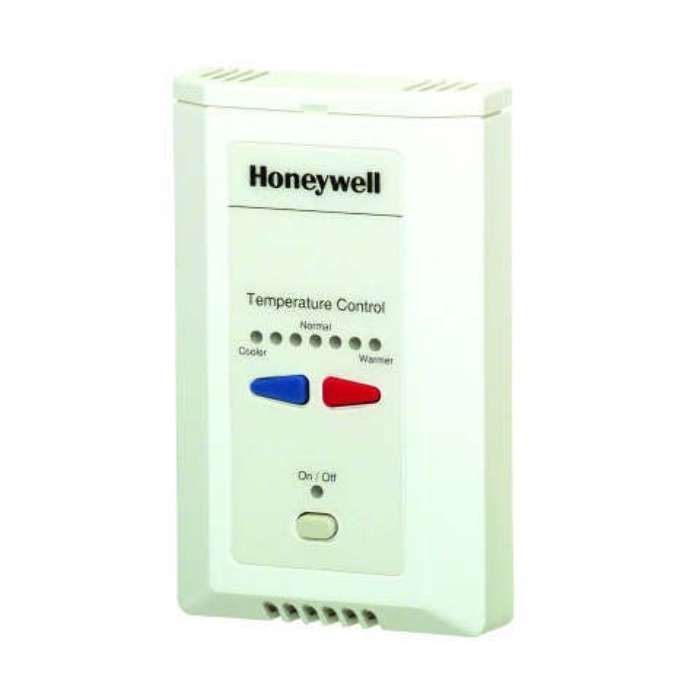

The HONEYWELL T7771A1005/U is a room temperature sensor with a 20K ohm NTC thermistor sensing type. It features an LED push button setpoint adjustment and override with LED, all within a plastic white enclosure. Designed for use with the Honeywell T7350 Commercial Programmable Thermostat.

• Includes LED push button setpoint adjustment
• Features occupied/unoccupied override with LED indicators
• Equipped with a LONWORKS bus jack

Product Highlights

Remote temperature sensor for use with T7350 thermostat. Features push button setpoint adjustment with LED indicators and occupied/unoccupied override.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: T7771A1005/U
• Country of Origin: MX

Technical Specifications

• Mounting: Wall Mount
• Enclosure: Plastic
• Configuration: Room
• Sensors Application: Temperature
• Temperature Sensor Type: 20K
• Application: Indoor
• Sensor Type: 20 K ohm NTC non-linear
• Color: White
• Operating Humidity Range (% RH): 5 to 95% RH, non-condensing
• Setpoint Temperature Range (F): offset +/- 3F
• Setpoint Temperature Range (C): offset +/- 1.67C
• Operating Temperature Range (F): 45 F to 99 F
• Operating Temperature Range (C): 7 C to 37 C
• Shipping Temperature Range (F): -40 F to +150 F
• Shipping Temperature Range (C): -40 C to +65 C
• Dimensions (in.): 5 1/32 in. high x 3 5/32 in. wide x 1 in. deep
• Dimensions (mm): 128 mm high x 80 mm wide x 25 mm deep
• Approvals, N.E.C.: Class II
• Used With: T7350
• Network Jack: LonWorks Bus
• Category: Commercial Building Controls
• Manufacturer: HONEYWELL
• Product: Sensors
• Style: Sensors
• Manufacturer Part Number: T7771A1005/U
• Product Series: T7771
• Family Series: Honeywell HVAC Sensors, T7771 Series
• Description: 20K WALL, RED/ BLUE LEDS
• Output: 20 kOhm NTC
• Humidity Range: 5-95% RH
• Operating Temperature: -40-150 °F
• Function: Humidity, Temperature
• Display: LED Indicator
• Override: Yes
• Set Point: Yes
• Net Weight: 0.13 lbs
• Gross Weight: 0.0081 lbs
• Brand: HONEYWELL
• MPN: T7771A1005
• UPC: Does Not Apply
• Condition: New
• Vendor Name: Honeywell
• URI Part Number: T7771A1005
• Vendor Part Number: T7771A1005/U
• Length (In.): 5.00
• Width (In.): 3.50
• Height (In.): 2.25
• Shipping Weight (Lbs.): 0.40
• Country of Origin: MX
• Use with: T7350
• Prop65: No
