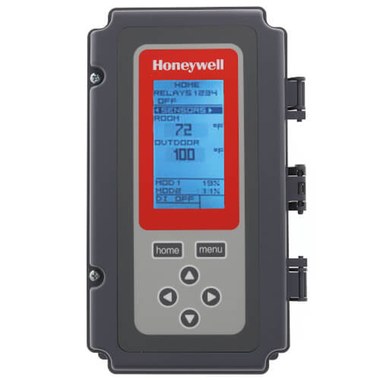

Honeywell T775R2001/U Electronic Stand-Alone Controller 24, 120, or 240 VAC

Product Description

The Honeywell T775R2001/U is an electronic stand-alone controller designed for HVAC systems. This unit features a user-friendly graphical interface for easy programming and monitoring. It supports multiple power options, including twenty-four, one hundred twenty, or two hundred forty volts alternating current. The T775R2001/U is highly configurable and includes four single pole double throw relay outputs and two floating outputs.

• Reset option for simplified setup
• NEMA 1 enclosure for protection
• Internal time clock scheduler for automation

Product Highlights

This controller is suitable for various temperature control applications and provides reliable performance in a variety of conditions.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: T775R2001/U

Technical Specifications

• Power: 24, 120, or 240 VAC
• Operating Conditions: -40 F to 125 F (-40 C to 52 C), RH: 5% to 95% non-condensing
• Approvals: UL 60730-1 for US and Canada
• Outputs: 4 SPDT relay outputs, 2 floating outputs
• Sensor Inputs: 2
• Enclosure Type: NEMA 1
• Configuration: Configurable integral and derivative times
• Reset: Reset models with simplified setup
