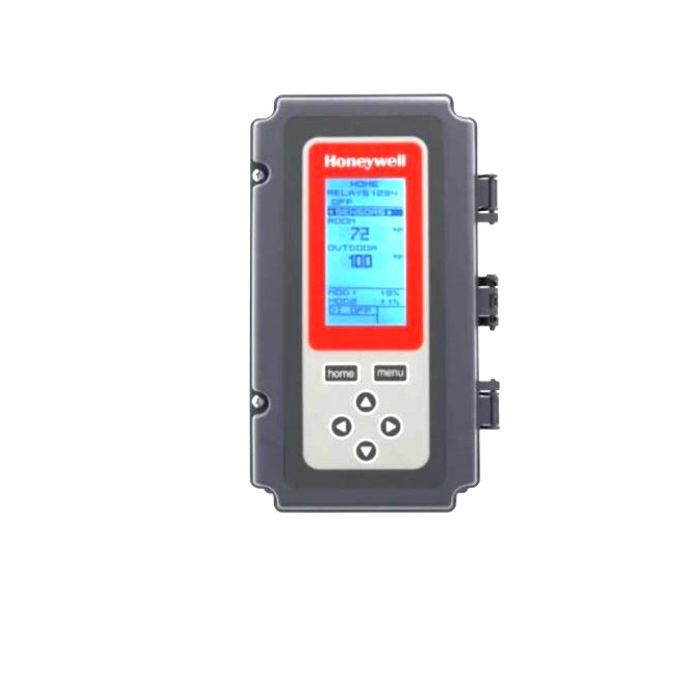

Honeywell T775M2030/U Electronic Stand-Alone Controller 24, 120, or 240 VAC

Product Description

The Honeywell T775M2030/U is an electronic stand-alone controller designed for HVAC applications. This controller features a modulating design that supports up to four SPDT relay outputs and two analog outputs. Its versatile configuration allows for adjustments suitable for various HVAC systems. The NEMA 1 enclosure provides protection in typical indoor environments.

• Easy to use graphical interface
• Configurable for modulating high or low limit control
• Features an internal time clock scheduler and sensor calibration

Product Highlights

This controller is suitable for controlling heating and cooling applications with ease. It includes up to two independent modulating outputs which can effectively manage temperature settings. The device is built to withstand a range of environmental conditions.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: T775M2030/U

Technical Specifications

• Power Supply: 24, 120, or 240 VAC
• Operating Conditions: -40 F to 125 F (-40 C to 52 C), RH: 5% to 95% non-condensing
• Approvals: UL 60730-1 for US and Canada
• Enclosure Type: NEMA 1
