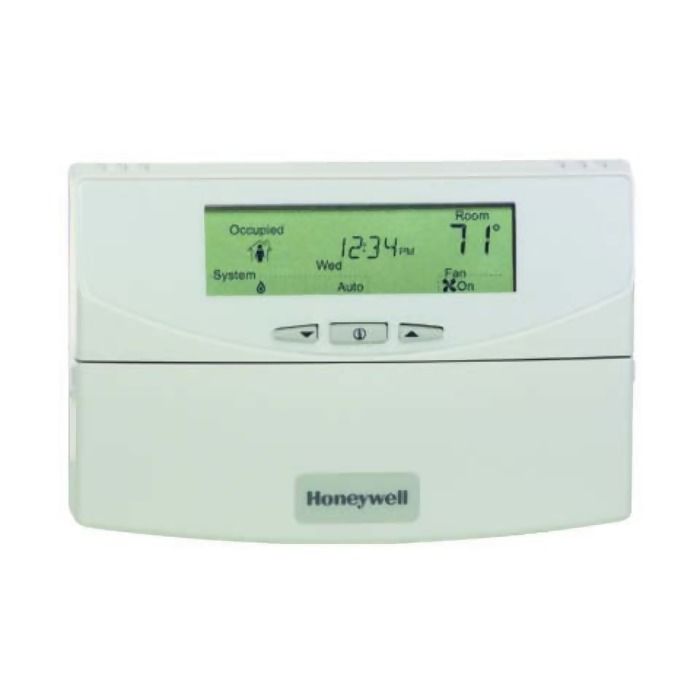

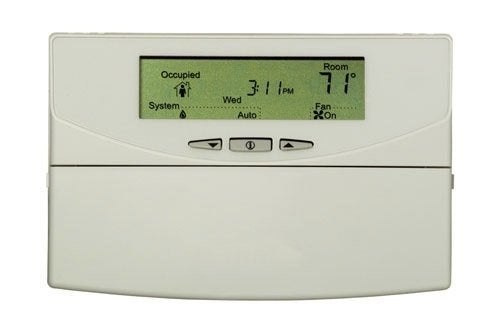

Honeywell T7350B1002 2 H/2 C Conventional or 3 H/2 C Heat Pump/Remote Temp/Discharge Air and Out Air Sensor Optional

Product Description

The Honeywell T7350B1002 thermostat controls 24 Vac commercial single-zone multistage conventional, heat pump and modulating HVAC equipment. It features 365-day programming and two occupied and two not occupied periods per day. P+I+D control minimizes temperature fluctuations. It also has thermostat interface module (TIM) connections to thermostat from PDA for advanced configuration.

• 365-Day programming
• Two occupied and two not occupied periods per day
• Thermostat interface module (tim) connections to thermostat from pda for advanced configuration, programming, keypad lockout, etc

Product Highlights

The Honeywell T7350B1002 is designed for commercial single-zone HVAC systems, offering precise temperature control and energy-saving programming options.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: T7350B1002
• Country of Origin: Mexico

Technical Specifications

• Brand: Honeywell
• Model / MPN: T7350B1002
• Number of Items: 1.0
• Item [Specifications]: Thermostat Control
• Fan Settings [Specifications]: Auto-On
• Contact Rating: Running 1.5A maximum. Inrush 7.5A maximum.
• Key Pad Lockout [Specifications]: Yes
• Sensor Location [Specifications]: Remote
• System Settings [Specifications]: Auto-Cool-Emergency Heat-Heat-Off
• Mounting Direction [Specifications]: Vertical
• System/Fan Settings [Specifications]: Auto-Cool-Emergency Heat-Heat-Off/Auto-On
• Temperature Limiting [Specifications]: Yes
• Programming Capability [Specifications]: 365 Day Programming
• Temporary Program Override [Specifications]: Yes
• Dual Transformer Compatible [Specifications]: Yes
• Temperature settings per day [Specifications]: 2 (Not Occupied Periods per Day), 2 Occupied
• For Use With Mfr. Model Number [Specifications]: T7350A1004
• Country of Origin (subject to change) [Specifications]: Mexico
• Type: Programmable
• Display: LCD
• Set Point Range: 40 to 99 °F
• Controls Outputs: 2H/2C
• Supply Voltage (Nominal): 24 VAC
• Supply Voltage: 20 to 30 Vac @ 5 VA, 50/60 Hz, W7350 100 to 240 Vac, 47 to 63 Hz, 0.5A
• Accuracy: ±1° F (±1°C).
• Setpoint Range Heating: 40°F to 90°F (4°C to 32°C).
• Setpoint Range Cooling: 45°F to 99°F (7°C to 37°C).
• Deadband: °F (1°C)
• Battery: No batteries required
• Clock Accuracy: ±1 min./month (30 days).
• Operating Temperature: 30°F to 110°F (-1°C to 43°C), W7350 32 to 122°F (0 to 50°C)
• Operating Humidity: 5% to 90% RH, noncondensing, W7350 5% to 95% RH, Non-condensing
• Mounting: Mounts on subbase., W7350 DIN rail or screw
• Dimensions: 4-1/2" x 6-3/4" x 2-3/16"
• Weight: 1.24 lb. (0.57 Kg)
• Application: 2 H/2 C Heat Pump, Conv
• Frequency: 50/60Hz
• Notes: Remote Temp, Outdoor, Discharge Air
• Program: 365-Day
• Stage: 2 Heat/2 Cool HP
• Thermostat Type: Electronic
• Touchscreen: No
• Voltage: 24V
• Wireless: No
