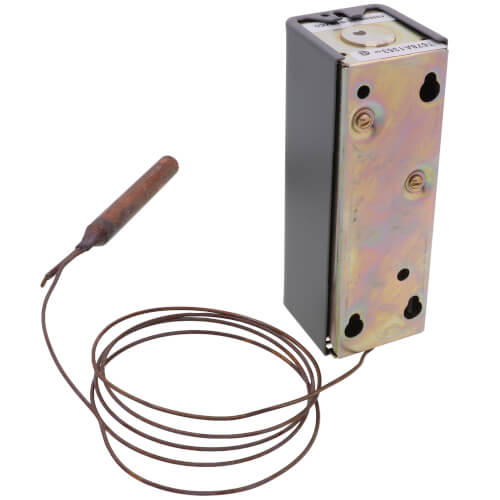

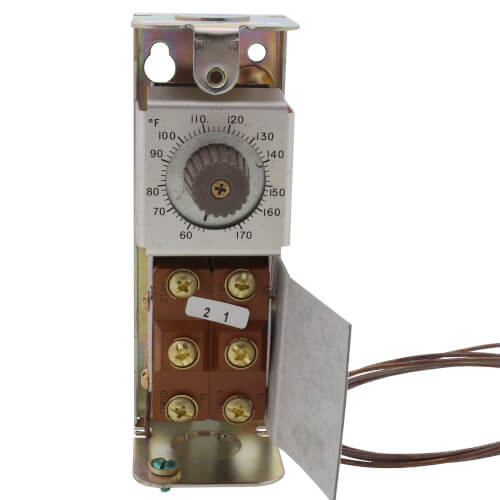

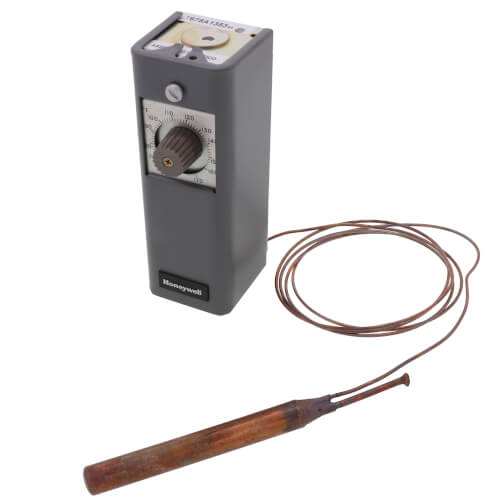

Honeywell T678A1353 Remote Bulb Temperature Controller 55 F to 175 F 5 ft Capillary

Product Description

The Honeywell T678A1353 is an essential device for managing temperatures in industrial environments. Its main functions include regulating the temperature of air or liquids within ducts, pipes, tanks, or boilers.

• Dual SPDT output for versatile control configurations.
• Capable of operating within a temperature range from 55 degrees Fahrenheit up to 175 degrees Fahrenheit.
• It features a 5-foot capillary tube for precise temperature measurement and regulation.

Product Highlights

Constructed for reliability, the Honeywell T678A1353 offers a robust temperature control solution. Its compact design includes a copper bulb sensor for quick and efficient thermal response, ensuring optimal performance even in demanding settings.

Product Information

Standard Information

• Brand: Honeywell
• Output Type: Relay

Technical Specifications

• Application: Controls temperature in ducts, pipes, tanks, boilers
• Voltage: 120 Vac or 240/277 Vac
• Frequency: 50, 60 Hz
• Sensor Type: Copper Bulb
• Number of Sensor Inputs: 1
• Output Configuration: 2 SPDT
• Capillary Length: 5 feet
• Max Temp: 175 degrees Fahrenheit
• Differential: 1 degree Fahrenheit
