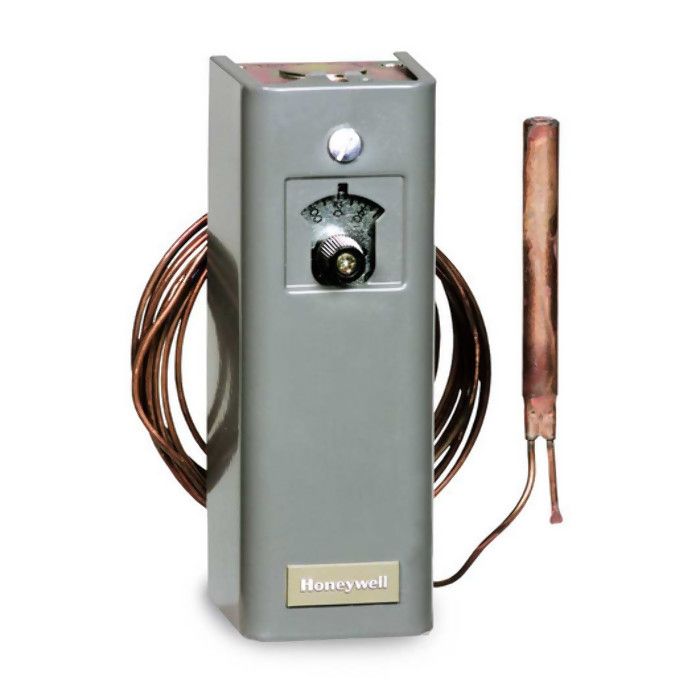

Honeywell T675A1136/U Remote Bulb Temperature Controller, 120/240/277 VAC, 1 Bulb Size

Product Description

The Honeywell T675A1136/U is a remote bulb temperature controller. It is suitable for temperature control applications for air or liquids, where it needs to be located outside the sensing area. This controller operates within a range of zero to one hundred degrees Fahrenheit.

• Designed for heating and cooling systems.
• Capillary length is twenty feet.
• Features one SPDT relay output for effective temperature management.

Product Highlights

The Honeywell T675A1136/U is ideal for controlling dampers and valves, ensuring efficient temperature regulation in HVAC systems.

Product Information

Standard Information

• Application: Regulates temperature of air or liquids in ducts, pipes, tanks and boilers
• Domestic/Import: Import

Technical Specifications

• Control Range: 0 to 100 degrees Fahrenheit
• Differential: 1 degree Fahrenheit fixed
• Dimensions: 2 inches wide x 2-5/8 inches deep x 5-5/8 inches high
• Voltage Rating: 120/240/277 VAC
• Sensing Bulb Size: 1/2 inch diameter x 4-3/16 inches long
• Number Of Relay Outputs: 1
• Sensor Type: Copper bulb
• Capillary Length: 20 feet
