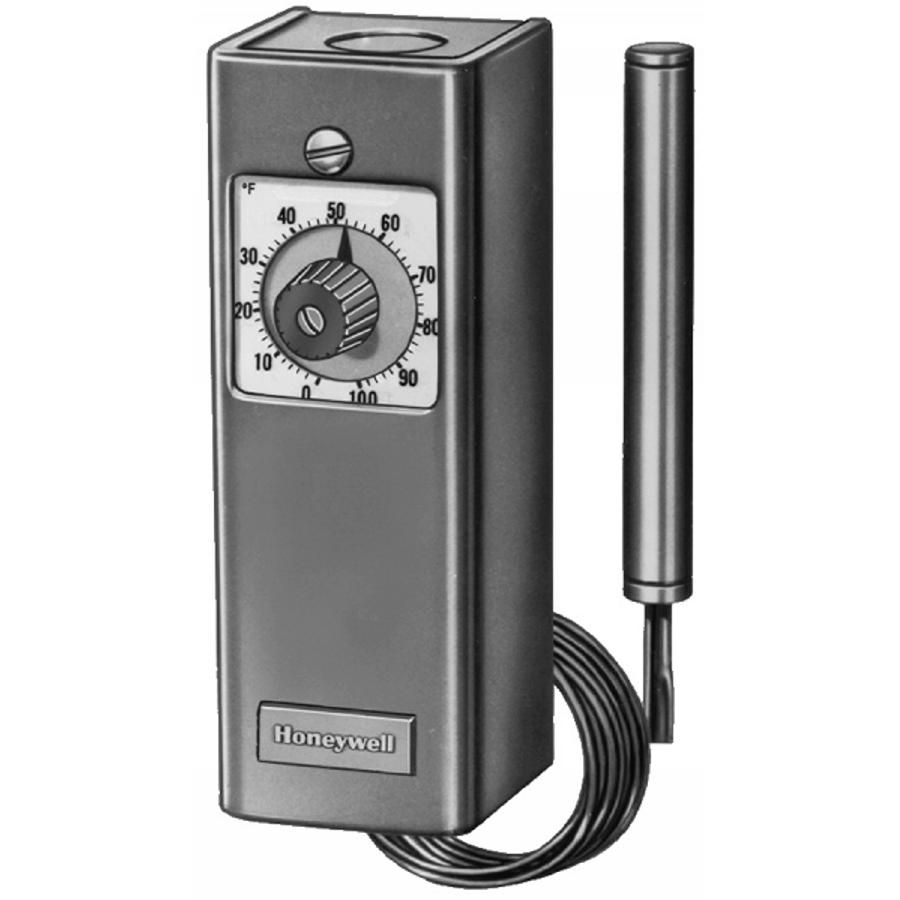

Honeywell T675A1102/U Remote Bulb Temperature Controller 120 VAC or 240/277 VAC 1/2 in. x 4-3/16 in. Bulb Size 20 ft. Capillary Length

Product Description

The Honeywell T675A1102/U is a remote bulb temperature controller. It operates on 120 VAC or 240/277 VAC and features a relay output. This controller maintains temperatures from 160 F to 260 F, utilizing a 1/2 inch x 4-3/16 inch copper bulb sensor element with a 20 ft capillary length. It includes a 1 SPDT switch for control applications.

• Suitable for applications requiring temperature control of air or liquids where controller must be placed outside the sensing area.
• Typical uses include control of dampers and valves in heating, cooling, and heating-cooling systems.
• Controller can be mounted in any position.

Product Highlights

Ambient temperature compensation provides good temperature control.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: T675A1102/U

Technical Specifications

• Input Voltage: 120 VAC Or 240/277 VAC
• Output Type: Relay
• Setpoint Temperature Range (F): 160 F To 260 F
• Bulb Size (in.): 1/2 in. x 4-3/16 in.
• Capillary Length (ft): 20 ft.
• Switch Type: 1 SPDT
• Sensor Element: Copper Bulb
• Application: Regulates temperature of air or liquids in ducts, pipes, tanks and boilers
• Frequency: 50 Hz; 60 Hz
• Certifications: UL Listed: E4436, Vol. 4, Sec. 11, Guide XAPX, CSA Listed: Report -1
• Contact Ratings: 120 Vac-- 8.0 AFL, 48.0 ALR; 240 Vac-- 5.1 AFL, 30.6 ALR; 277 Vac--4.2 AFL, 25.2 ALR
• Operating Temperature Range (F): 280 F Maximum
• Type: Remote bulb
• Sensor Inputs: 1
• Differential Temperature (F): 3 F to 10 F
• Style: Standalone Controllers
• Category: Commercial Building Controls
• Product Series: T675AB
• Family Series: Honeywell Controllers, T675AB Series
• Product Type: Controller
