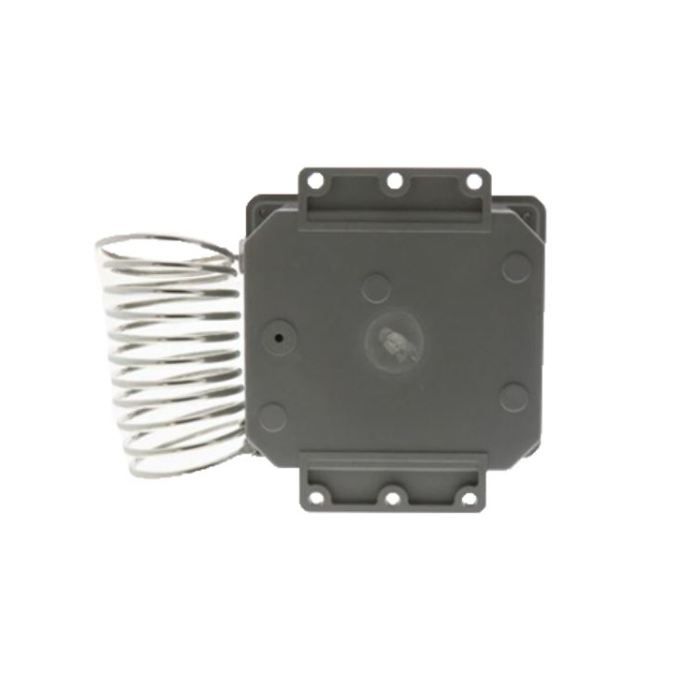

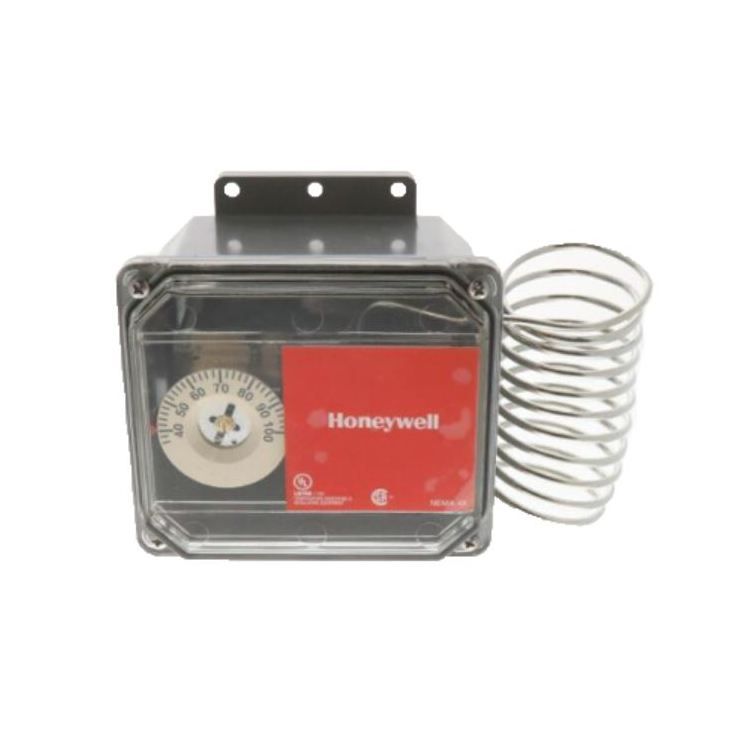

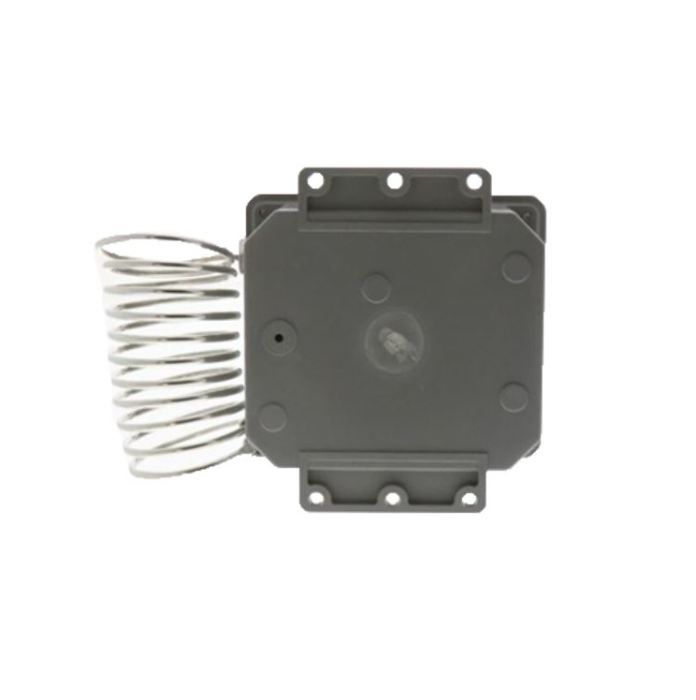

Honeywell T631F1068/U agricultural temperature controller 24/120/240 VAC 35 to 100F 2F differential

Product Description

The HONEYWELL T631F1068/U Agricultural Temperature Controller provides line voltage control for heating, cooling, and ventilating systems in farm buildings and storage areas. It operates on 24 VAC or 120/240 VAC, features a NEMA 4X rating, and includes a 1 SPDT switch with internal set point adjustment. The unit utilizes a coiled tin-plated copper tube sensor element for accurate temperature monitoring. Its watertight, dust-proof enclosure ensures durability in demanding environments.

• Designed for use in barns, brooder houses, poultry houses, hog barns, pump houses, milk houses, crop storage houses, and industrial environments.
• Features a NEMA 4X enclosure, protecting the thermostat and wiring connections from oil, water, dust, and corrosion.
• Includes a clear plastic cover that reveals the set point and discourages tampering.

Product Highlights

Watertight NEMA 4X enclosure with a tin-plated copper tube sensor and 35 to 100F control range.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: T631F1068/U
• Country of Origin: Import

Technical Specifications

• Input Voltage: 24 VAC or 120/240 VAC
• NEMA Rating: 4X
• Switch Type: 1 SPDT
• Set Point Adjustment: Internal
• Sensor Element: Coiled Tin-Plated Copper Tube
• Frequency: 50/60 Hz
• UL Approval: File No. E4436 Vol.1 Sec. UL Guide XAPX
• CSA Approval: Certified: File No. LR1620, Guide No. 400-E-O
• Contact Ratings: 24 Vac: 2.0A AFL; 120 Vac: 7.4 AFL, 44.4 ALR; 240 Vac: 3.7 AFL, 22.2 ALR
• Setpoint Temperature Range: 35 to 100 F
• Maximum Operating Temperature: 145 F
• Maximum Operating Temperature (C): 63 C
• Differential Temperature: 2 F
• Differential Temperature (C): 1.1 C
• Interstage Differential Temperature: 0 to 7 F adjustable
• Interstage Differential Temperature (C): 0 to 4 C adjustable
• Origin: Import
• Color: Gray
• Series: T631F
