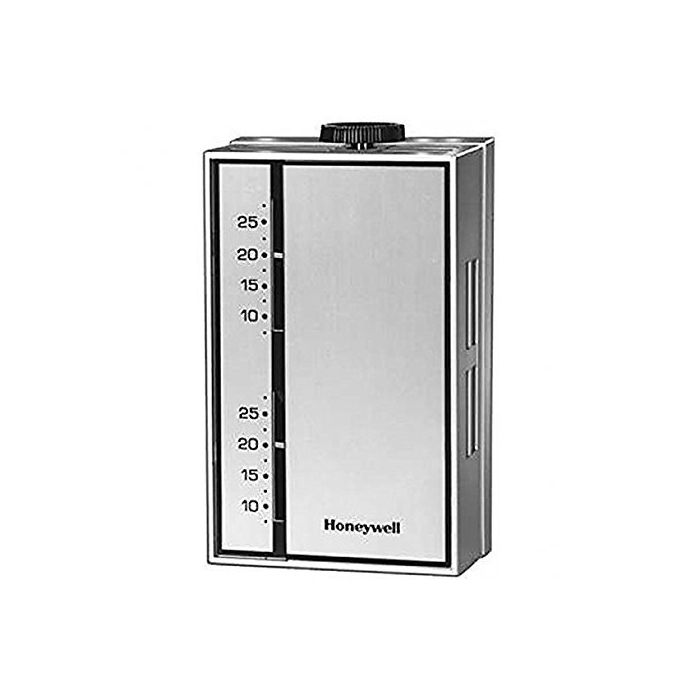

Honeywell T6052A1015 Heavy Duty Line Voltage Thermostat 46 to 84F

Product Description

The Honeywell T6052A1015 heavy-duty line voltage thermostat controls fan coils, fans, motor starters, valves, contactors, and circulator motors in heating and/or cooling systems. It provides good line voltage comfort control and can be used with Q651A,B subbases for system and fan switching. The removable setpoint knob locks the setpoint and prevents tampering.

• Non-Programmable
• Provide Good Line Voltage Comfort Control
• Removable Set Point Knob Locks Set Point and Prevents Tampering

Product Highlights

The Honeywell T6052A1015 is a heavy-duty line voltage thermostat with a temperature range of 46 to 84 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: T6052A1015

Technical Specifications

• Application: Electric Heat (Line Voltage), Multi-Stage (Heat/Cool)
• Stages: 2 Heat/2 Cool
• User Interface: Mechanical
• Programmability: Non-Programmable
• Mount: Vertical, Horizontal
• Switch: SPDT
• Power Method: Hardwired
• Temperature Range: 46 to 84 F
• Voltage: Line voltage, 120v, 240v
• Frequency: 50 Hz, 60 Hz
• Height: 5"
• Width: 3-1/8"
• Depth (Inches): 1-5/8"
• Amps (120V): 16
• Amps (240V): 8
• Type: Line Voltage, Heavy Duty, 2-Heat/2-Cool
• Cover Type: Plastic, Horizontal/Vertical, Locking
• Color: Tan
• Voltage Rating: 120/240 Volt AC 50/60 Hertz
• Current Rating: 16 Amp at 120 Volt AC, 8 Amp at 240 Volt AC (1-Stage)/8 Amp at 120 Volt AC, 4 Amp at 240 Volt AC (2-Stage) Full Load, 96 Amp at 120 Volt AC, 48 Amp at 240 Volt AC (1-Stage), 48 Amp at 120 Volt AC, 24 Amp at 240 Volt AC (2-Stage) Locked Rotor
• Switch Type: (2) SPDT
• Approval: UL, CSA

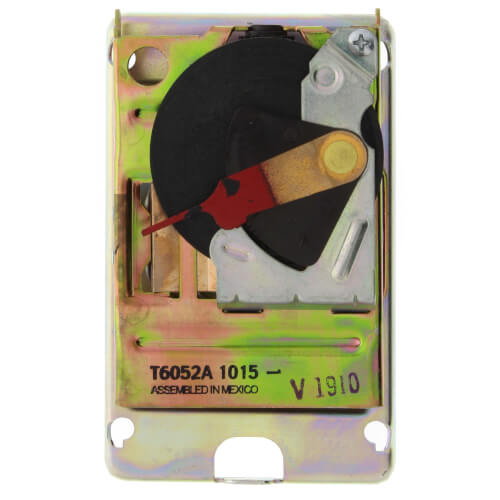

• Sensor Element: Vapor Filled Dual Diaphragm
• Setting Temperature Range: 46 to 84 Deg F
• Differential Temperature: 3.2 Deg F

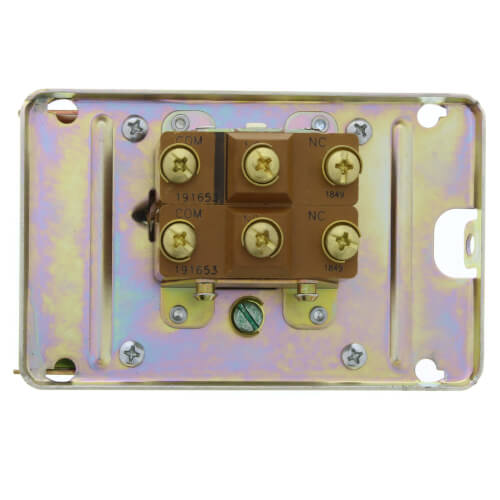

• Electrical Connection Type: Screw Terminal
• Brand: Honeywell
• Built In Wi-Fi: False
• Digital Programmable: False
• Support Capacitive Touch: False
• Parts Application: Std heat/Cool
• UL Listed: False
• UL Recognized: False
• MPN: T6052A1015
• Manufacturer: Honeywell
