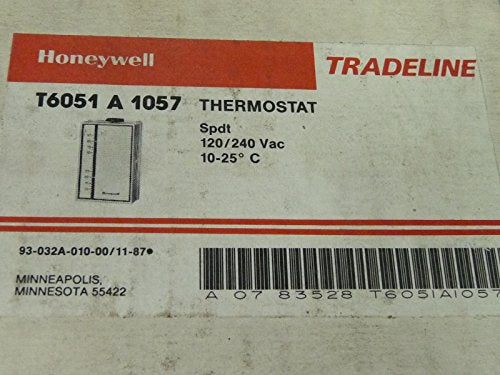

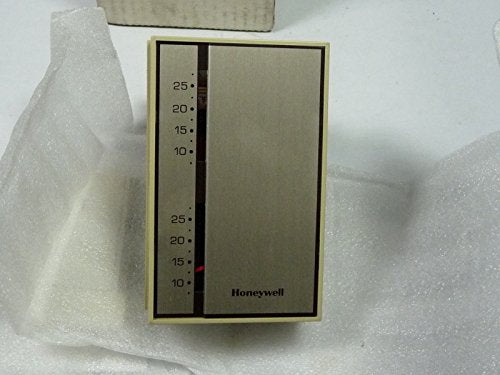

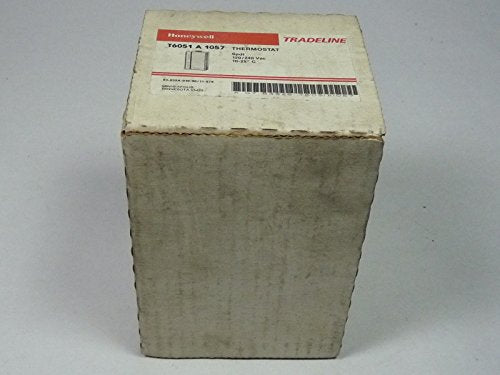

Honeywell T6051A1057 Heavy Duty Line Voltage Thermostat 8 to 29 C

Product Description

The Honeywell T6051A1057 is a heavy-duty line voltage thermostat designed to provide reliable control for heating and cooling systems. This unit is suitable for fan coils, fans, motor starters, valves, and circulator motors. It operates on both one hundred twenty volts and two hundred forty volts, making it versatile for various applications.

• Controls heating and cooling systems effectively.
• Utilizes removable setpoint knob to lock settings.
• Compatible with Q651A and B subbases.

Product Highlights

This thermostat offers a locking cover that prevents unauthorized adjustments, ensuring consistent temperature control in electric heating systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: T6051A1057

Technical Specifications

• Color: Plastic cover, tan
• Electrical Connections: Screw terminals
• Voltage: One hundred twenty Vac, two hundred forty Vac
• Frequency: Fifty Hz; sixty Hz
• Electrical Ratings: One hundred twenty Vac: sixteen AFL, ninety-six ALR; two hundred forty Vac: eight AFL, forty-eight ALR
• Sensor Element: Vapor filled dual diaphragm
• Temperature Range: Eight degrees to twenty-nine degrees Celsius
• Application: Electric heat (line voltage)
• Power Method: Hardwired
