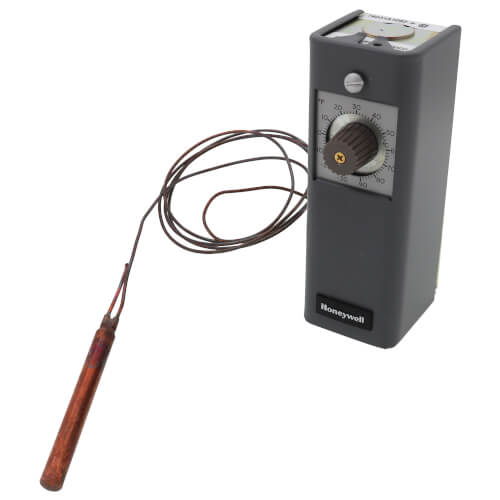

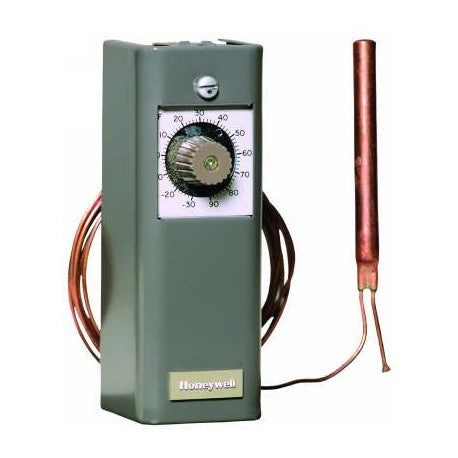

Honeywell T6031A1052 Refrigeration Temperature Controller -30/90F 5 feet Cap

Product Description

The Honeywell T6031A1052 refrigeration temperature controller provides limit or temperature control in refrigerated areas where remote mounting of sensing element is required. It uses liquid-filled copper elements for rapid sensing to control the compressor system. It can control temperature in a duct, tank, freezer or cooler.

• Liquid-filled copper elements provide rapid sensing.
• Controls temperature in a duct, tank, freezer, or cooler.
• Adjustable control setpoint.

Product Highlights

The Honeywell T6031A1052 is ideal for temperature control in refrigerated spaces, featuring a remote sensing element and adjustable setpoint.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: T6031A1052
• Country of Origin: United States

Technical Specifications

• Brand: Honeywell
• MPN: T6031A1052
• UPC: 085267089760
• Product Type: CONTROLLER
• Manufacturer: Honeywell, Inc.
• Product Group: BISS
• Number of Items: 1
• Type: Remote bulb
• Application: Provides control of cooled or refrigerated space
• Switching: 1 SPDT
• Setting Temperature Range: -30 F to +90 F
• Sensor Element: Copper bulb
• Capillary Length (ft): 5 ft.
• Maximum Operating Temperature (F): 125F
• Differential Temperature (F): 3.5 F
• Voltage: 120 Vac; 240 Vac
• Contact Ratings (120 Vac): 8.0 AFL, 48.0 ALR
• Contact Ratings (240 Vac): 5.1 AFL, 30.6 ALR
• Bulb Size (in): 3/8 in. diameter x 3 in. long
• Temperature Range: -30 to 90 F
• Max Temp (F): 90 F
• Min Temp (F): -30 F
• Capillary Length: 5 ft.
• Differential: 3.5 to 12 F
• Switch Action: SPDT
• Contact Ratings: 120 Vac-- 8.0 AFL, 48.0 ALR; 240 Vac-- 5.1 AFL, 30.6 ALR
• Setpoint Temperature Range (F): -30 F to +90 F
• Operating Temperature Range (F): 125 F Maximum
• Operating Temperature Range (C): 52 C Maximum
