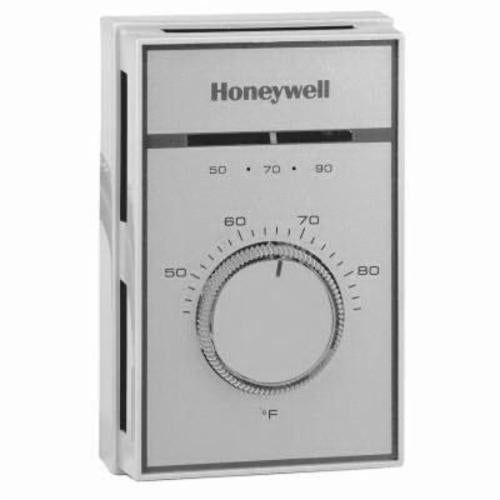

Honeywell T451A3005/U Line Voltage Thermostat 44 to 86 deg F

Product Description

The Honeywell Line Voltage Thermostat, MPN T451A3005/U, offers a control range from forty-four to eighty-six degrees Fahrenheit. This mechanical thermostat has a two-degree differential and features a single-pole, single-throw (SPST) switch action. It operates on a voltage rating of one hundred twenty to two hundred seventy-seven VAC, which makes it suitable for various heating and cooling applications.

• Control range: forty-four to eighty-six degrees Fahrenheit
• Mounting options: horizontal or vertical
• Includes a thermometer and locking cover for added security

Product Highlights

This thermostat is ideal for controlling line voltage valves, motors, and electric heat elements in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: T451A3005/U

Technical Specifications

• Control Range: forty-four to eighty-six degrees Fahrenheit
• Differential: two degrees Fahrenheit
• Dimensions: two and fifteen-sixteenths inches wide x one and one-half inches deep x four and one-half inches high
• Domestic/Import: Import
• Includes: Scaleplate with thermometer, range stops, and locking cover screws
• Mounting Type: Horizontal/Vertical
• Sensor Type: Vapor filled dual diaphragm
• Switch Action: SPST
• Voltage Rating: one hundred twenty to two hundred seventy-seven VAC
