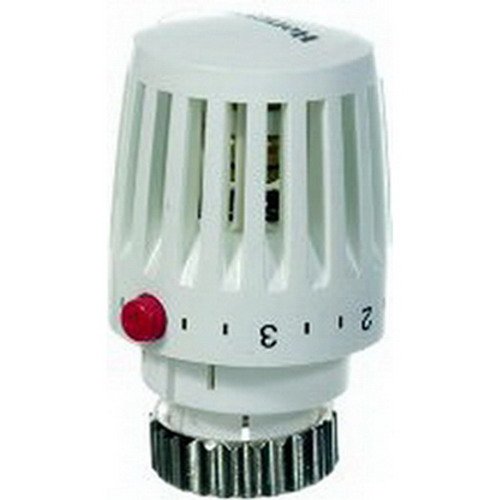

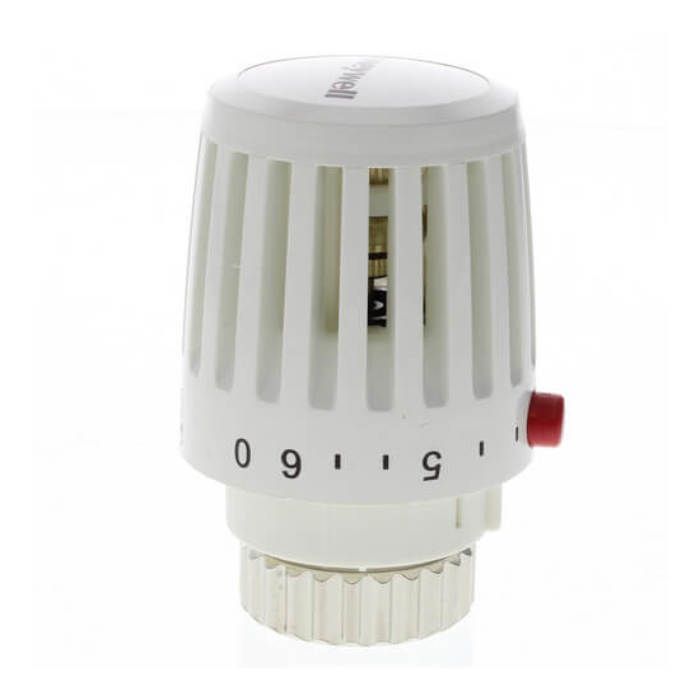

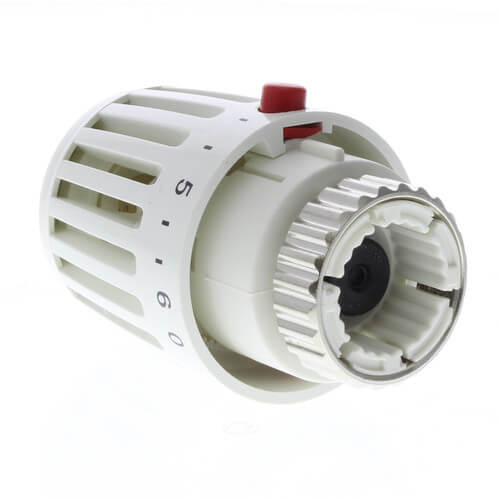

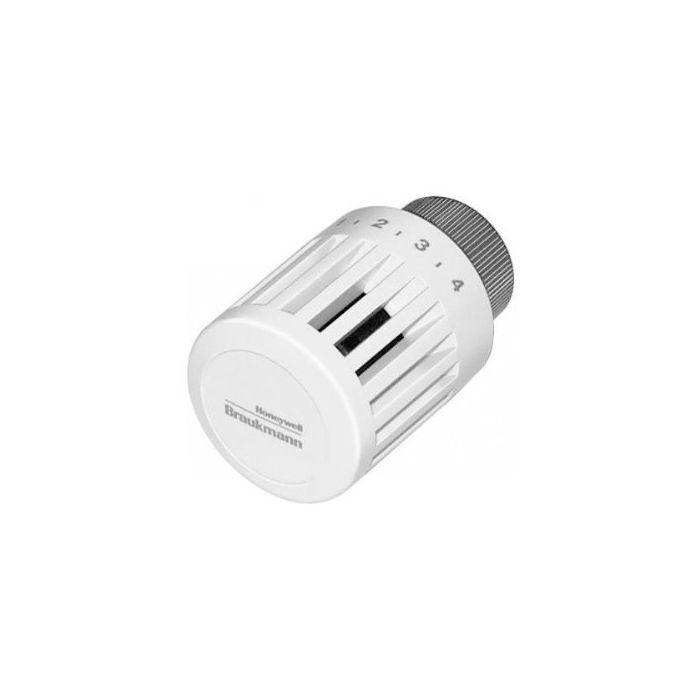

Honeywell T1002W0NA Thermostatic Radiator Actuator with integral sensor REPLACES T100A-1028

Product Description

The Honeywell T1002W0NA thermostatic radiator actuator features an integral sensor. This self-contained control includes a sensor, setpoint dial, and valve actuator in one unit. It continually monitors and adjusts room temperature for consistent comfort, preventing under-heating and overheating. Designed for horizontal mounting with adjustable limits.

• Monitors and adjusts room temperature for consistent comfort.
• Nickel-plated brass casted body with working parts in cartridge insert.
• Valve seat disc ensures tight shutoff on steam or hot water systems.

Product Highlights

This thermostatic radiator actuator allows automatic temperature control in two-pipe steam or hot water systems. It requires no electrical connections.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: T1002W0NA

Technical Specifications

• Item Model Number: T1002W0NA
• Part Number: T1002W0NA
• Product Dimensions: 3.7 x 2.2 x 2.1 inches
• Model / MPN: T1002W0NA
• MPN: T1002W0NA
• Collar Diameter (in.): 1 3/16 in. (30 mm)
• Product Type: HVAC_CONTROL_THERMOSTAT
• Application: Accessory
• Used With: V100 Series, V2000 Series
• Mount: Horizontal
• Setpoint: Integral
• Sensor Type: Integral
• Diameter (Inches): 1-3/16"
• Temperature Range (F): 43°F - 79°F
• Manufacturer Part Number: T1002W0NA
• UPC / GTIN: 085267996938
• Manufacturer: Honeywell
