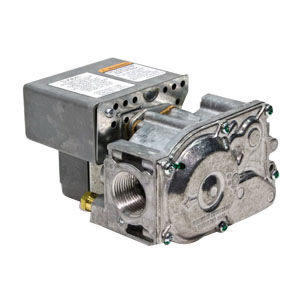

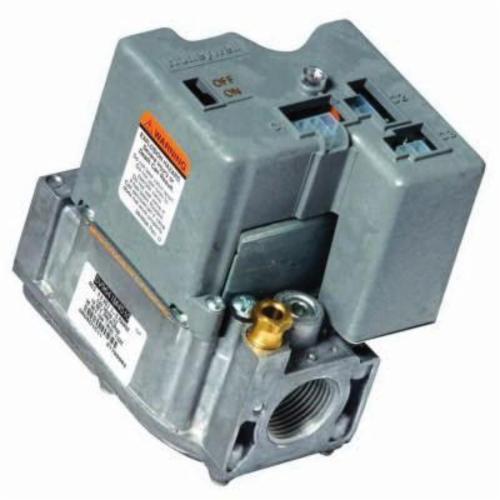

Honeywell SV9641M4510/U Standard Opening Gas Valve, 3/4 in, NPT, 0.5 psi

Product Description

The Honeywell SmartValve SV9641M4510/U is a standard opening gas valve designed for efficient control in various gas-fired appliances. This valve has a nominal size of three-fourths of an inch, and it connects via NPT threading. It operates at a pressure rating of 0.5 psi and is ideal for use with natural gas. The valve features an intermittent hot surface pilot ignition system.

• Designed for a wide range of heating appliances
• Includes two reducer bushings and an LP conversion kit
• Operates under extreme temperatures from negative forty to one hundred seventy-five degrees Fahrenheit

Product Highlights

This gas valve ensures reliable operation and can mount at angles from zero to ninety degrees from an upright position. Its advanced features include flame sensing and a robust ignition trial process.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: L9437

Technical Specifications

• Coil Voltage: 24 VAC, 50/60 Hz
• Country of Origin: MX
• Dimensions: 4.1 inches L x 3.2 inches W x 4.9 inches H
• Domestic/Import: Import
• End Style: NPT
• Gas Type: Natural Gas
• Ignition Type: Intermittent Hot Surface Pilot
• Mfg Standards/Approvals: CSA 112395
• Nominal Capacity: 0.8 to 11.8 cu-m/hr
• Nominal Size: 3/4 inches
• Pressure Rating: 0.5 psi
• Temperature Rating: -40 to 175 degrees F
• Type: Standard Opening
