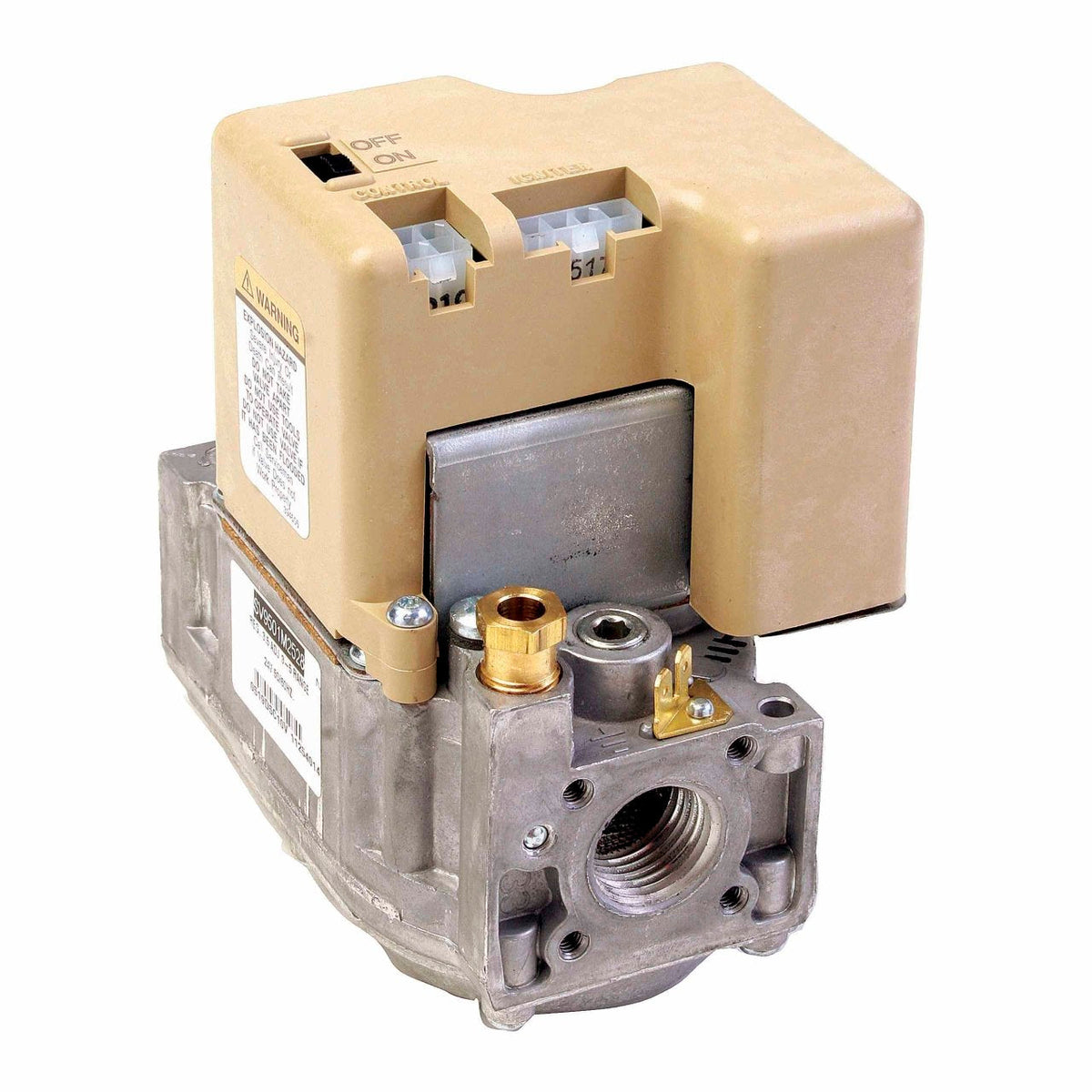

Honeywell sv9602p4816/u Smartvalve Gas Valve

Product Description

The HONEYWELL sv9602p4816/u SmartValve is a combination gas valve and electronic intermittent pilot sequencer integrated into a single control unit. It combines gas flow control with intermittent hot surface pilot ignition sequencing, eliminating the need for separate components. The valve uses a step-opening design, which stages gas flow during startup to reduce ignition shock. A timed trial for ignition is built into the ignition sequence. Licensed HVAC technicians and gas appliance service professionals are the intended installers for this control.

The sv9602p4816/u is suited for a wide range of gas-fired heating appliances including residential furnaces, rooftop furnaces, residential boilers, unit heaters, infrared heaters, space heaters, and commercial cooking units. It is directly compatible with the Q3450 and Q3480 Intermittent Pilot burners when used as a replacement for original controls on the appliance. The SmartValve System supports several different intermittent pilot sequences, making it adaptable across a broad range of application types. Final application suitability is the responsibility of the appliance manufacturer or the installing technician.

Key Features

• Combines gas flow control and electronic intermittent pilot sequencing in one unit
• Step-opening valve design stages gas flow at startup to reduce ignition shock
• Timed trial for ignition built into the control sequence
• Compatible with Q3450 and Q3480 Intermittent Pilot burners
• Supports multiple intermittent pilot sequences for a wide range of appliance types

Compatibility

Directly compatible with Q3450 and Q3480 Intermittent Pilot burners as a replacement for original controls. Suitable for use on residential furnaces, rooftop furnaces, residential boilers, unit heaters, infrared heaters, space heaters, and commercial cooking units.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified gas appliance service professional. Shut off the gas supply and disconnect power to the appliance before beginning any service work. Follow all applicable local codes and the appliance manufacturer's wiring and piping diagrams during installation. Do not attempt to repair or adjust the valve internally; replace the unit if it fails functional testing.

Technical Specifications

• Valve Type: SmartValve combination gas valve with electronic intermittent pilot sequencing
• Opening Type: Step opening
• Ignition Type: Intermittent hot surface pilot ignition
• Ignition Sequence: Timed trial for ignition

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: sv9602p4816/u
