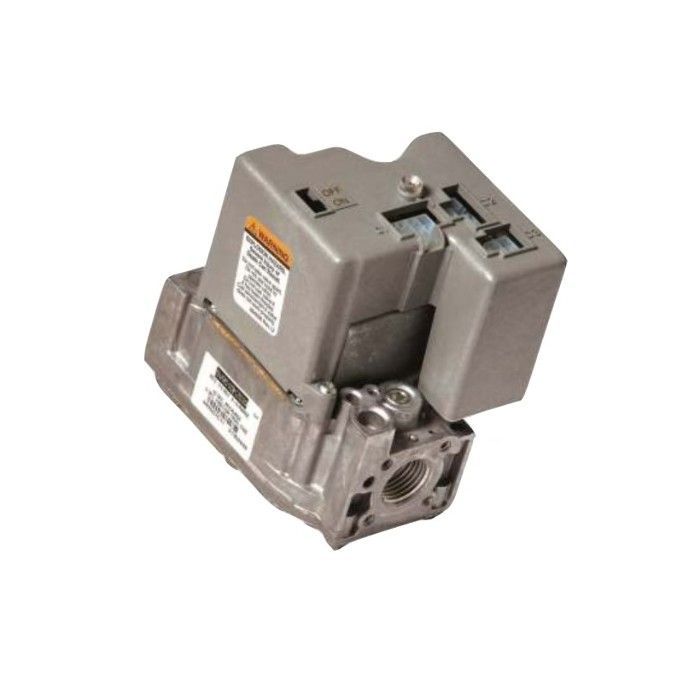

Honeywell SV9520H8513/U SmartValve 24 Vac 1/2 in NPT

Product Description

Honeywell SV9520H8513/U is a SmartValve direct hot-surface ignition gas valve for natural gas appliances. It features fast-slow valve opening, 1/2 in NPT inlet and outlet connections, and a factory pressure regulator set to 3.5 in. w.c. The control uses a 24 Vac coil, provides a 7 second HSI warm-up, supports a 15 second pre-purge and up to four ignition trials, and is intended for fan-assisted combustion equipment.

• Direct hot-surface ignition control for natural gas with 7 second HSI warm-up; coil voltage 24 Vac (50/60 Hz).
• Fast-slow straight-through valve design with 1/2 in NPT inlet/outlet and factory pressure regulator set to 3.5 in. w.c.; nominal capacity 0.6 to 5.7 cu m/hr (20 to 200 ft3/hr).
• Sequencing and safety features: pre-purge 15 seconds, ignition trial time 7 seconds, up to 4 ignition trials to lockout, diagnostic monitoring of airflow and limit circuits.

Product Highlights

Direct HSI SmartValve for natural gas; 24 Vac coil; 1/2 in NPT; 3.5 in. w.c. regulator; pre-purge 15s; 4 ignition trials.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: SV9520H8513/U
• Country of Origin: United States
