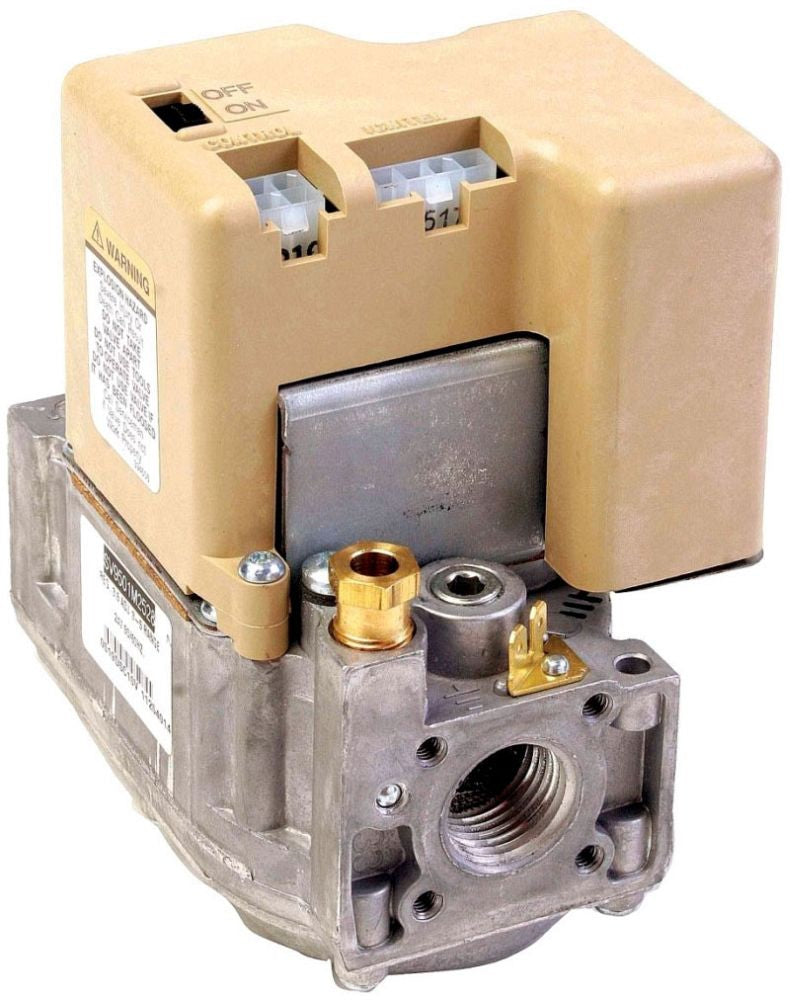

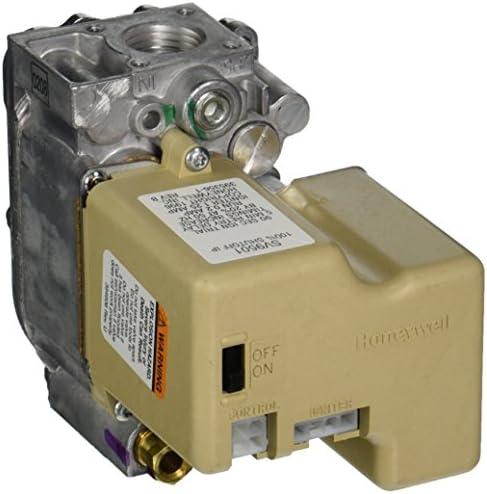

Honeywell SV9501M2528/U smart valve intermittent hot surface pilot 1/2 inches x 1/2 inches standard opening 3.5 inches wc replaces SV9500 SV9501 SV9502

Product Description

The Honeywell SV9501M2528/U is a Smart Valve Intermittent Hot Surface Pilot designed for gas-fired appliances. This 1-stage, pilot-operated valve control features a 1/2 inch NPT x 1/2 inch NPT standard opening and a 3.5 inch w.c. pressure setting. It operates on 24V AC and is suitable for residential furnaces, boilers, unit heaters, and commercial cooking units, handling natural gas media. The valve includes a continuous retry ignition sequence.

• Features a timed trial for ignition sequence.
• Designed as a 1/2 inch NPT x 1/2 inch NPT intermittent hot surface pilot ignition smart valve.
• Includes a standard opening and a 3.5 inch w.c. pressure regulator setting.

Product Highlights

This Smart Valve provides intermittent hot surface pilot ignition for various gas-fired appliances, ensuring reliable operation with its precise pressure setting and robust design.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: SV9501M2528/U

Technical Specifications

• Brand: Honeywell
• MPN: SV9501M2528/U
• Valve Type: Smart Valve Intermittent Hot Surface Pilot
• Type: 1-Stage, Pilot Operated, Standard Opening, Straight Through, Intermittent Hot Surface Pilot Ignition
• Pilot Type: Intermittent
• Opening Type: Standard
• Fuel Type: Natural Gas
• Pipe Connection Size: 1/2 inch NPT x 1/2 inch NPT
• Pressure Setting: 3.5 inch w.c.
• Ignition Sequence: Continuous Retry
• Input Voltage: 24 Volt AC at 50/60 Hertz
• Certifications: UL, CSA
• Application: Residential Furnace, Roof-Top Furnace, Residential Boiler, Unit Heater, Infrared Heater, Space Heater and Commercial Cooking Unit
• Operating Temperature: -40 to 175 Deg F
• Included Features: Natural to LP Conversion Kit, Extension Harness
• Max Pressure Rating: 1/2 PSI
• Mounting Type: Vertical
• Media Handled: Gas
• Pressure Tapping: 1/8 Inch Threaded
• Flame Failure Response Time: 1.6 Second at 3 Micro Amp
• Flame Sense Type: 2-Rod
• Ignition Source: Pilot
• Ignition Trial Time: 90 Second
• Material: Metal
• Number of Ports: 2
