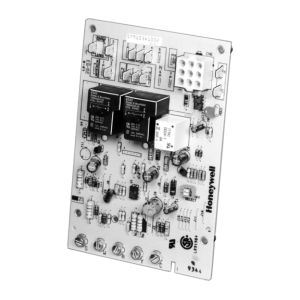

Honeywell ST9103A1002/U Electronic Fan Timer

Product Description

The Honeywell ST9103A1002/U is an electronic fan timer designed for use with oil furnaces. This product integrates control of burner and circulating fan operations effectively. It operates at a voltage range of ten to thirty VAC. The timer features a fixed forty-five-second heat fan-on delay and adjustable heat fan-off delays of sixty, ninety, one hundred twenty, and one hundred fifty seconds.

• Integrates burner and fan control in oil furnaces.
• Fixed and adjustable delays enhance operational efficiency.
• Suitable for two-speed circulating fans.

Product Highlights

This electronic fan timer is ideal for HVAC professionals looking to optimize circulation in oil furnace systems.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: ST9103A1002/U

Technical Specifications

• Voltage: 10 to 30 VAC
• Heat Fan On Delay: Fixed 45 seconds
• Adjustable Heat Fan Off Delay: 60, 90, 120, 150 seconds
