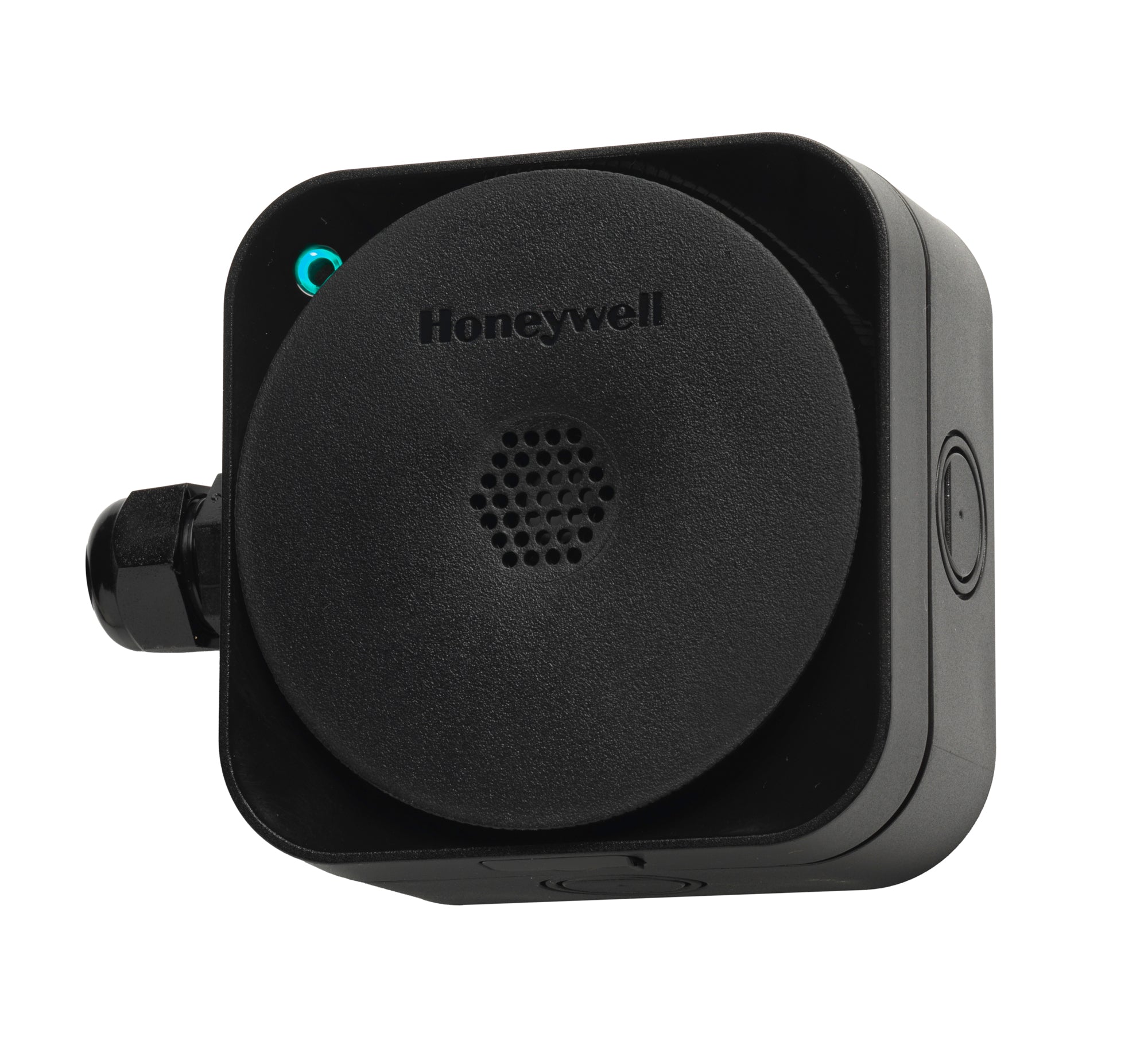

Honeywell SPLCF6BARCXNZZ Sensepoint Xcl Gas Transmitter

Product Description

The HONEYWELL SPLCF6BARCXNZZ is a fixed-point gas transmitter designed for safe area installations requiring continuous methane (CH4) detection. Using a catalytic bead sensing element, it outputs a standard 4-20 mA analog signal and includes an integrated relay output for direct connection to control panels, PLCs, or alarm systems. The enclosure carries an IP65 rating, providing protection against dust ingress and low-pressure water jets, making it suitable for demanding industrial environments. The charcoal housing finish is standard on this configuration. Licensed gas detection technicians and instrumentation specialists are the primary installers of this device.

This transmitter is intended for use in safe area classifications where flammable gas monitoring is required. Typical applications include industrial facilities, oil and gas processing sites, laboratory environments, agricultural operations, transportation infrastructure, and mining operations. The 4-20 mA output integrates directly with building management systems and gas detection controllers. The relay output provides a hardwired switching function for local alarms or ventilation interlocks. This unit is not rated for use in classified hazardous locations requiring ATEX or NEC Class I Division ratings.

Key Features

• Catalytic bead sensing element for methane (CH4) detection
• Standard 4-20 mA analog output for integration with gas detection controllers and PLCs
• Integrated relay output for direct alarm or interlock wiring
• IP65-rated enclosure resists dust and water ingress
• Designed for safe area installations across multiple industrial sectors
• Charcoal housing finish for field identification of configuration

Compatibility

Designed for use in safe area gas detection systems requiring a 4-20 mA transmitter with relay output for methane monitoring across industrial, oil and gas, laboratory, agricultural, transportation, and mining applications.

Installation Notes

Installation should be performed by a qualified instrumentation technician or licensed gas detection professional familiar with applicable local codes and the facility's gas detection system design. De-energize the control panel or detection system before wiring the transmitter. The 4-20 mA loop and relay connections must be made in accordance with the wiring diagram supplied with the unit and in compliance with applicable electrical codes. Do not install this unit in hazardous classified locations for which it is not rated.

Technical Specifications

• Target Gas: Methane (CH4)
• Sensing Technology: Catalytic bead
• Output Signal: 4-20 mA
• Additional Output: Relay
• Enclosure Rating: IP65
• Area Classification: Safe area
• Housing Color: Charcoal
• Applications: Industrial site, oil and gas, laboratory, agriculture, transportation, mining

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: SPLCF6BARCXNZZ
