Product Description

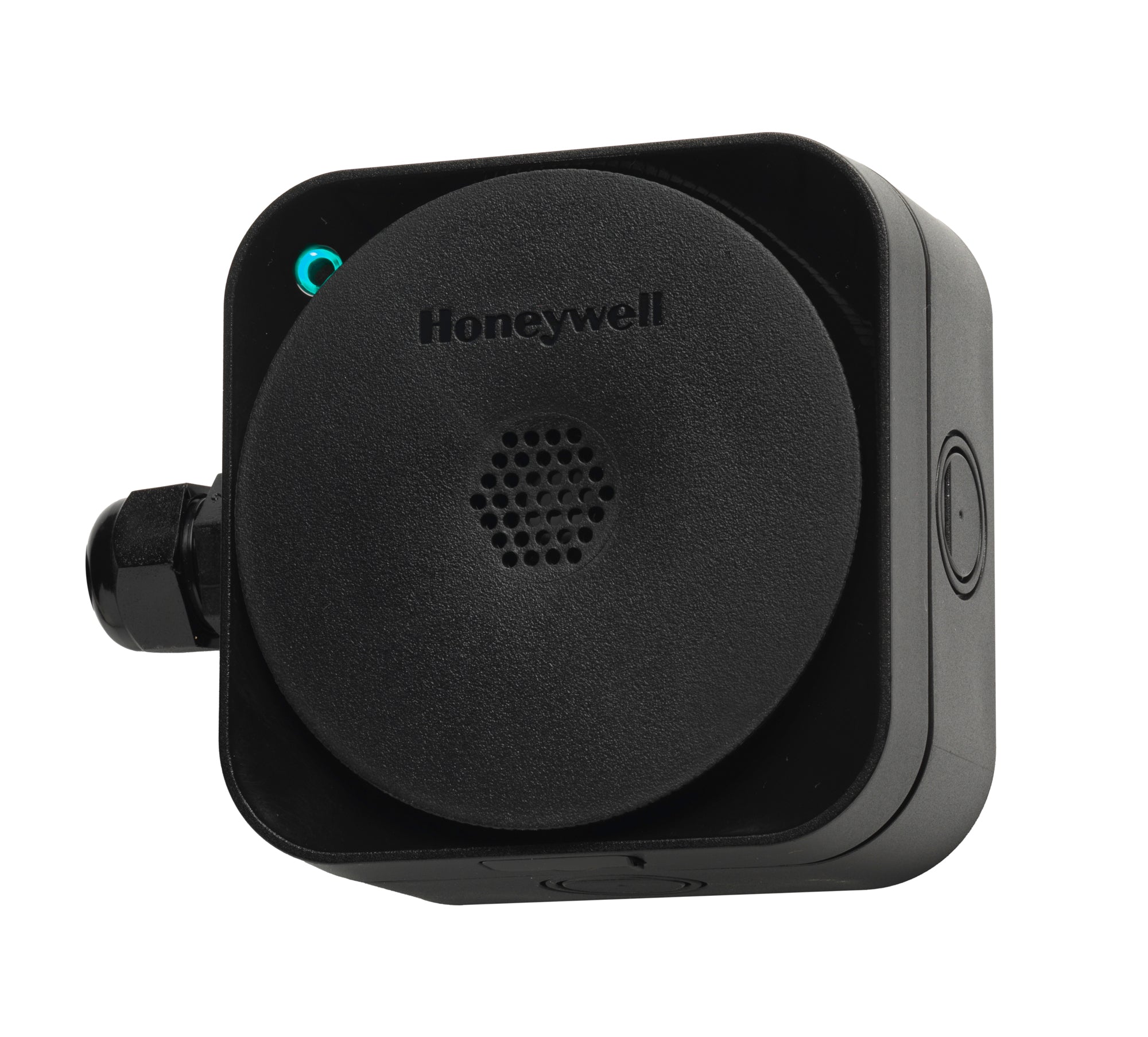

The HONEYWELL SPLCC1BARCXNZZ is a fixed-point carbon monoxide gas transmitter designed for safe area installations where continuous CO monitoring is required. Built on the Sensepoint XCL platform, it outputs a standard 4 to 20 mA current signal for integration with compatible gas controllers and building management systems. The unit is rated IP65 for dust-tight and water-resistant operation, making it suited for demanding indoor and outdoor service environments. An integrated relay provides local switching capability. The charcoal housing finish is standard on this configuration. Licensed gas detection professionals and industrial safety technicians are the primary installers.

The SPLCC1BARCXNZZ is applied across a broad range of commercial and industrial environments where carbon monoxide accumulation poses a life-safety or occupational hazard. Documented application areas include commercial buildings, industrial sites, hospitals, mines, and aircraft facilities. The 4 to 20 mA current loop output is compatible with most programmable logic controllers, dedicated gas detection panels, and SCADA systems. The measurement range of 50 to 1,000 ppm covers typical CO monitoring thresholds required by safety codes in these environments.

Key Features

• Carbon monoxide detection with a measurement range of 50 to 1,000 ppm
• 4 to 20 mA current signal output for direct integration with gas detection panels and BMS systems
• IP65-rated enclosure provides protection against dust ingress and water jets
• Integrated relay output for local alarm or control switching
• Safe area installation rating — not approved for use in classified hazardous locations
• Charcoal housing finish; no integral display

Compatibility

Designed for use in safe area fixed gas detection systems in commercial buildings, industrial sites, hospitals, mines, and aircraft facilities. Compatible with any gas detection controller or monitoring panel that accepts a standard 4 to 20 mA input signal.

Installation Notes

Installation should be performed by a qualified gas detection technician or licensed electrician in accordance with applicable local electrical codes and the manufacturer installation instructions. De-energize the circuit and verify loop power is off before making wiring connections to the transmitter. Mount the unit at the appropriate height for CO detection per the governing safety standard for the application. Do not install this transmitter in a classified hazardous area — it is rated for safe area use only.

Technical Specifications

• Gas Detected: Carbon Monoxide (CO)
• Measurement Range: 50 to 1,000 ppm
• Output Signal: 4 to 20 mA current
• Relay Output: Yes
• Enclosure Rating: IP65
• Display: None
• Area Classification: Safe Area
• Housing Color: Charcoal
• Application: Commercial Building, Industrial Site, Hospital, Mine, Aircraft

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: SPLCC1BARCXNZZ
