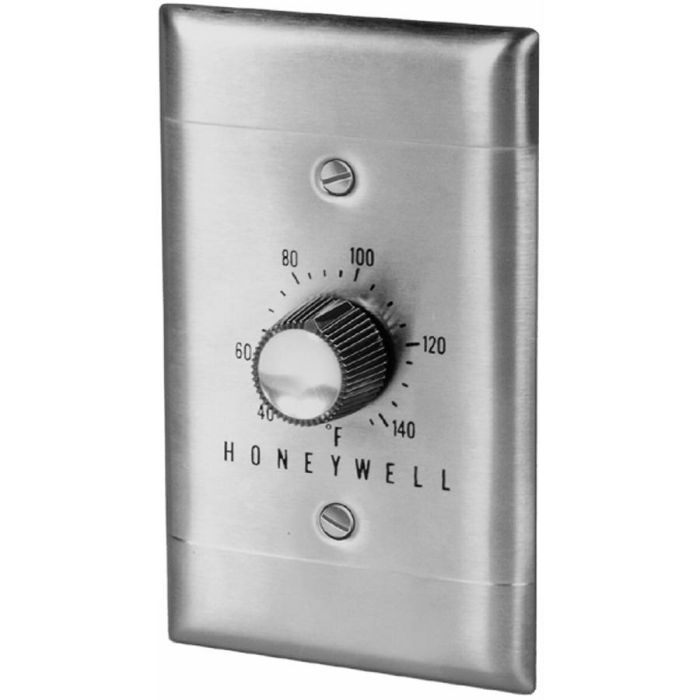

Honeywell S963B1177/U Manual Potentiometer 480 Ohm

Product Description

The HONEYWELL S963B1177/U is a manual potentiometer with a resistance of 480 ohm. It is designed for vertical mounting on a 2 inch by 4 inch outlet box, requiring a minimum depth of 1 3/4 inches. This potentiometer is suitable for use with Series 90 Modulating Controls and electronic motors and sensors, and can be used for checkout of W973 Logic Panels and W975 Satellite Sequencers.

• For use with Series 90 Modulating Controls
• For use with electronic motors and sensors
• Can be used with T7047 to provide set point adjustment remote from the thermostat

Product Highlights

Manual potentiometer for vertical mounting on standard outlet boxes, ideal for modulating controls and electronic systems.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: S963B1177/U

Technical Specifications

• MPN: S963B1177/U
• Resistance: 480 ohm
• Application: Manual Potentiometer
• Dimensions (inches): 4.25 in. high x 2.75 in. wide x 2.3125 in. deep
• Mounting: Vertical on 2 x 4 in outlet box (1 3/4 in deep minimum)
• Style: Building Management Systems
• Category: Commercial Building Controls
