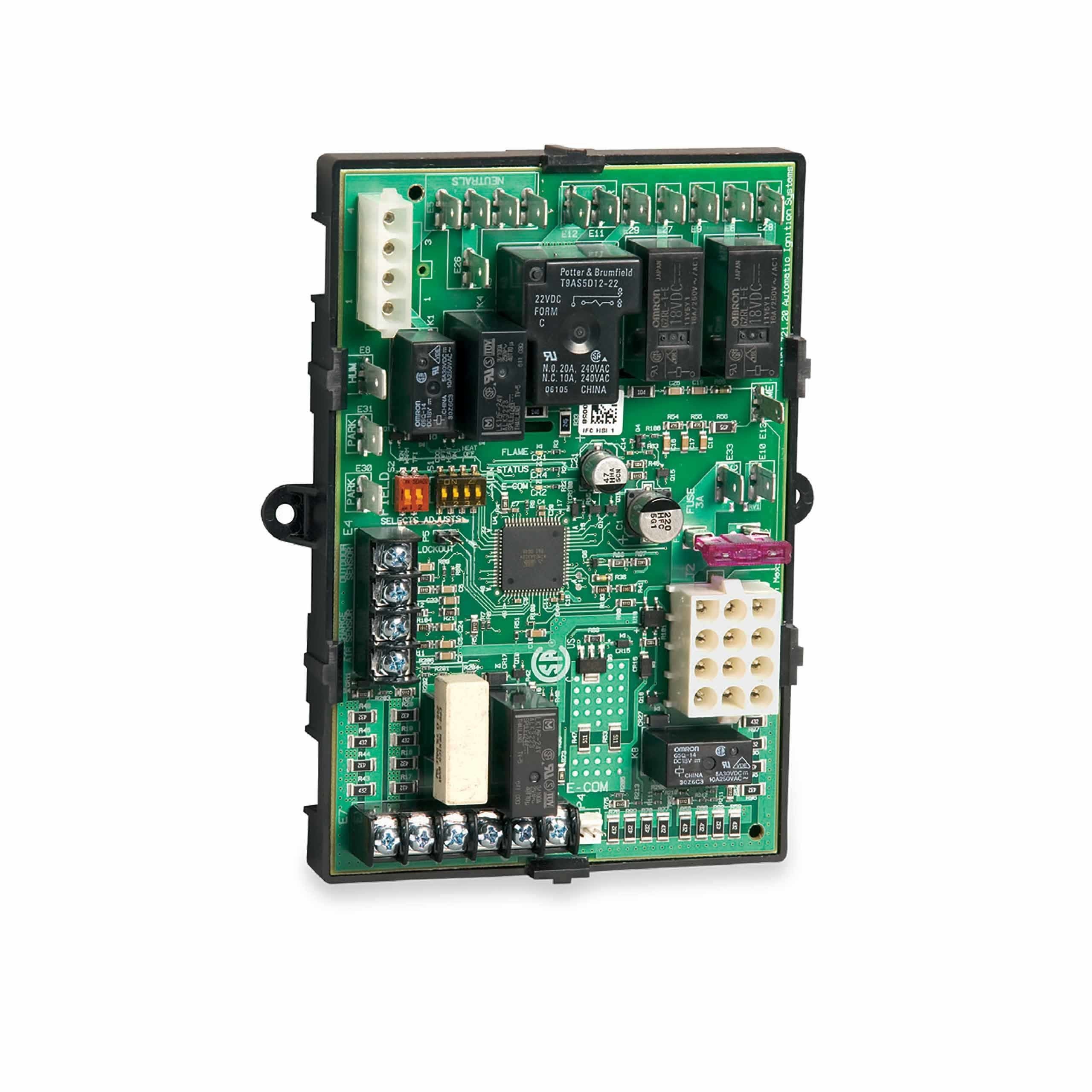

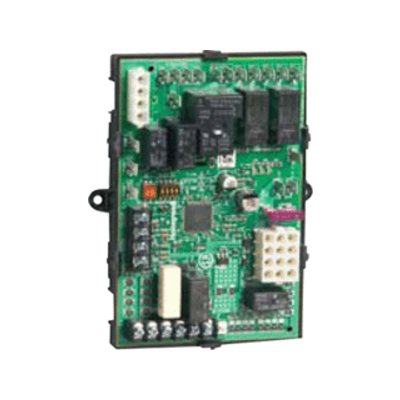

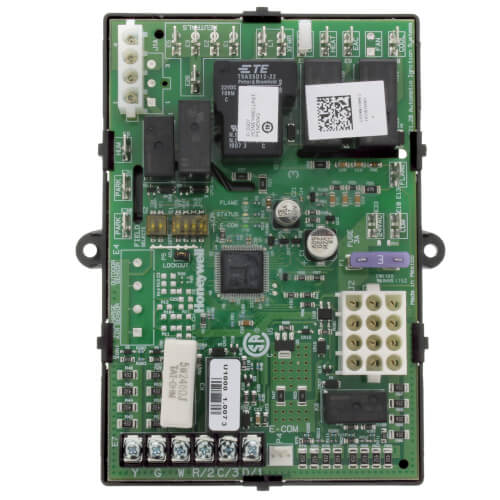

Honeywell S9200U1000/U Universal Integrated Furnace Control

Product Description

The HONEYWELL S9200U1000/U is a universal integrated furnace control designed for single-stage warm air furnaces. It operates on a 120 VAC line voltage with a 24V low voltage and supports a 5A resistive igniter current. It features three ignition trials for 4, 6, or 8 seconds, and a 30-second minimum pre-purge.

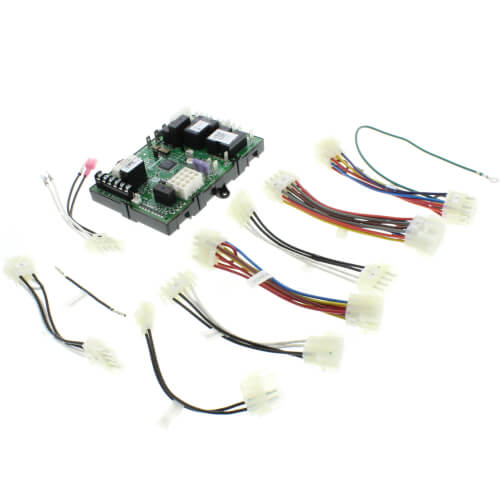

• Cross reference and wire harnesses provided for simple replacement over 195 existing furnace controls
• Main burner ignition using a 120V hot surface igniter
• Flame rectification circuit to monitor flame presence

Product Highlights

This control unit is designed for easy replacement and reliable monitoring of furnace operations, ensuring safety and efficient performance.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: S9200U1000/U
• Country of Origin: US

Technical Specifications

• MPN: S9200U1000/U
• Brand: HONEYWELL
• Application: Single Stage Warm Air Furnaces
• Line Voltage: 120 VAC
• Low Voltage: 24V
• Igniter Current: 5A Resistive
• Ignition Trials: 3 Trials For 4, 6, Or 8 Seconds
• Minimum PrePurge: 30 Second
