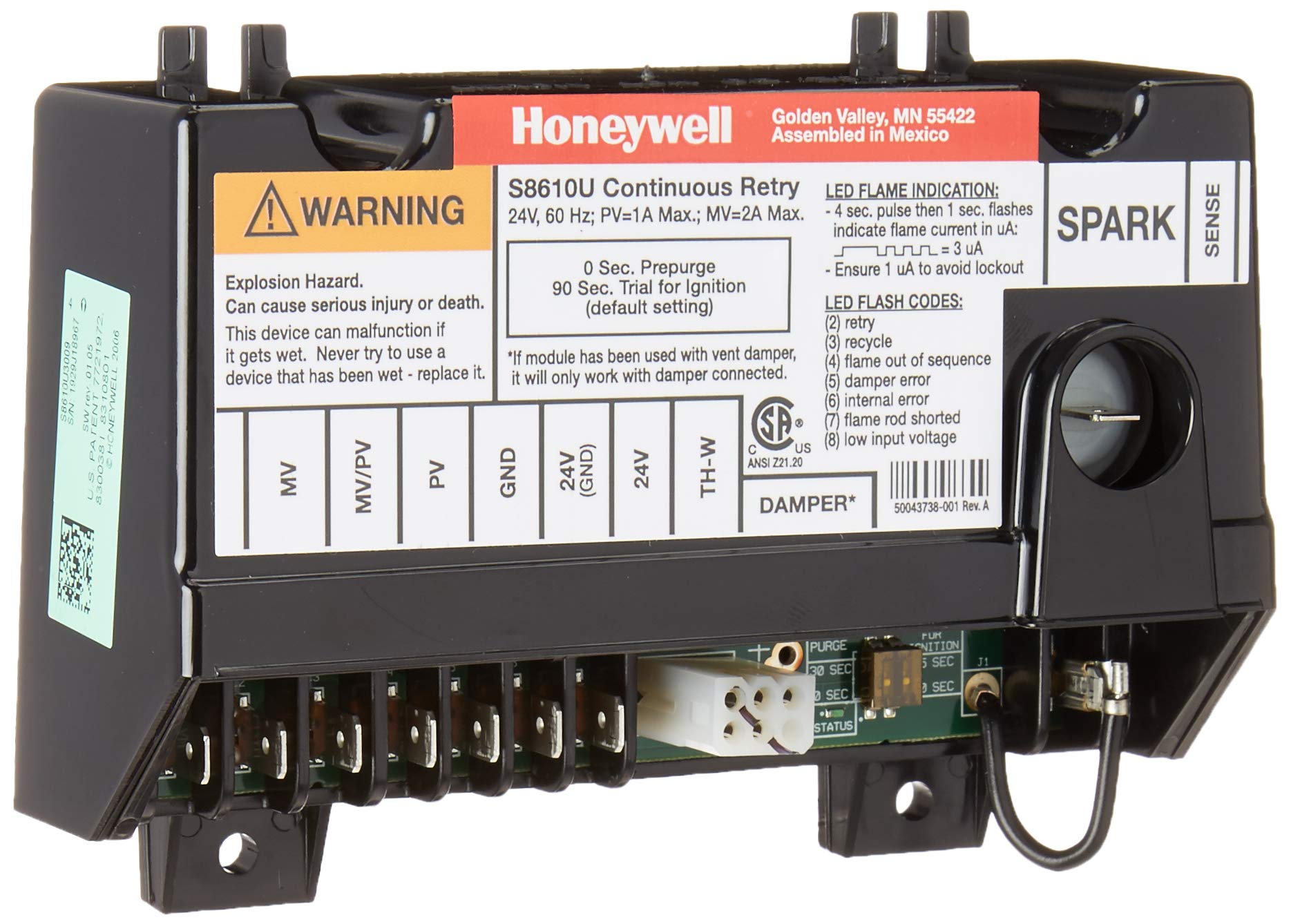

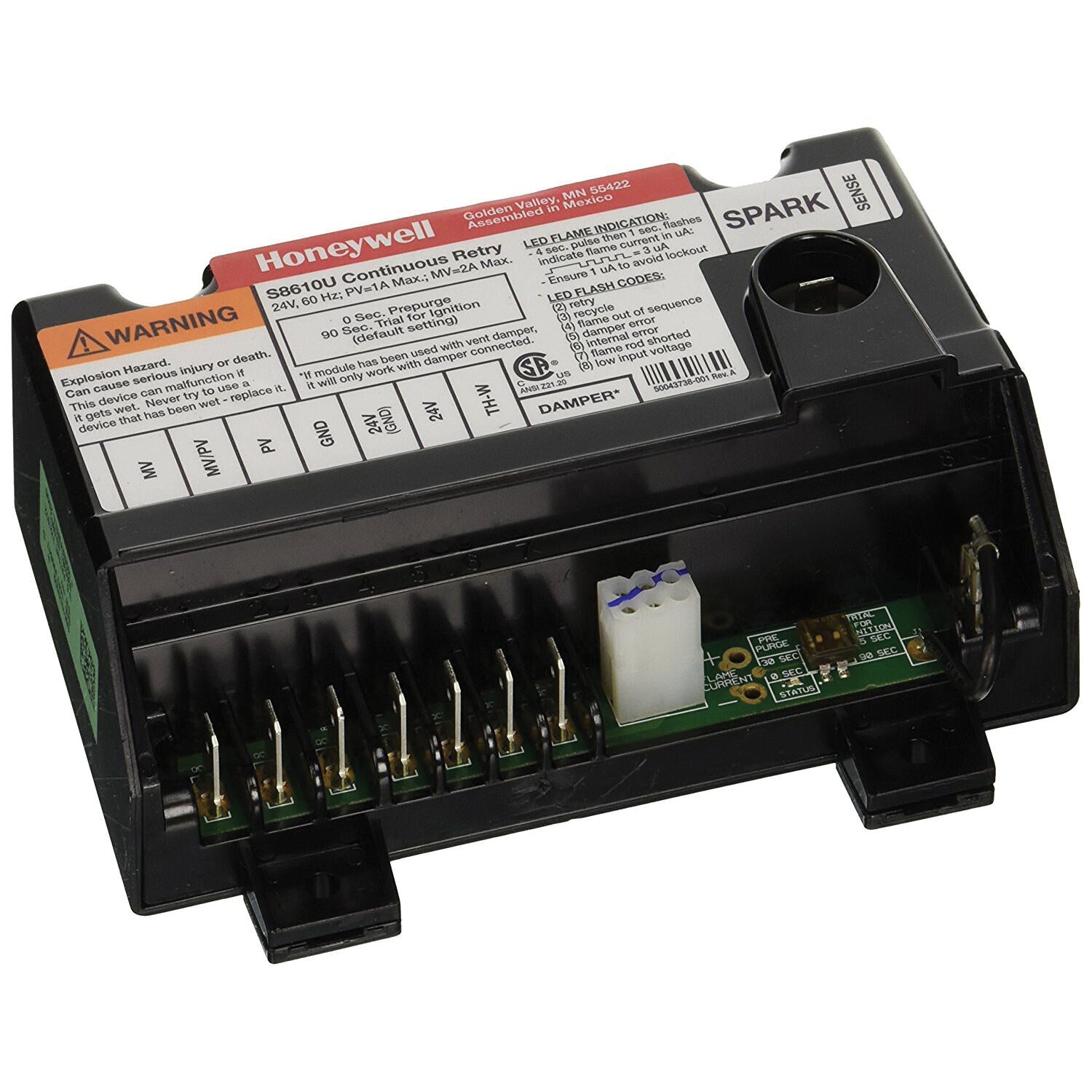

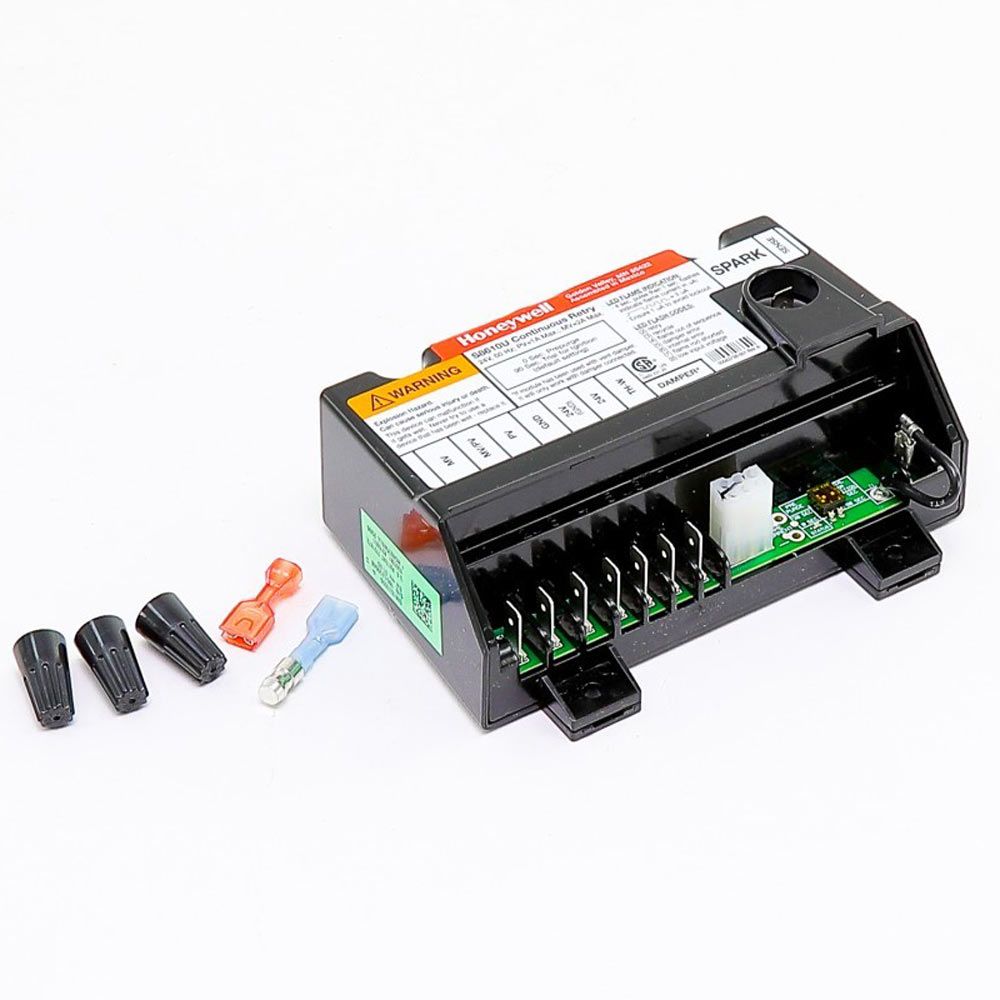

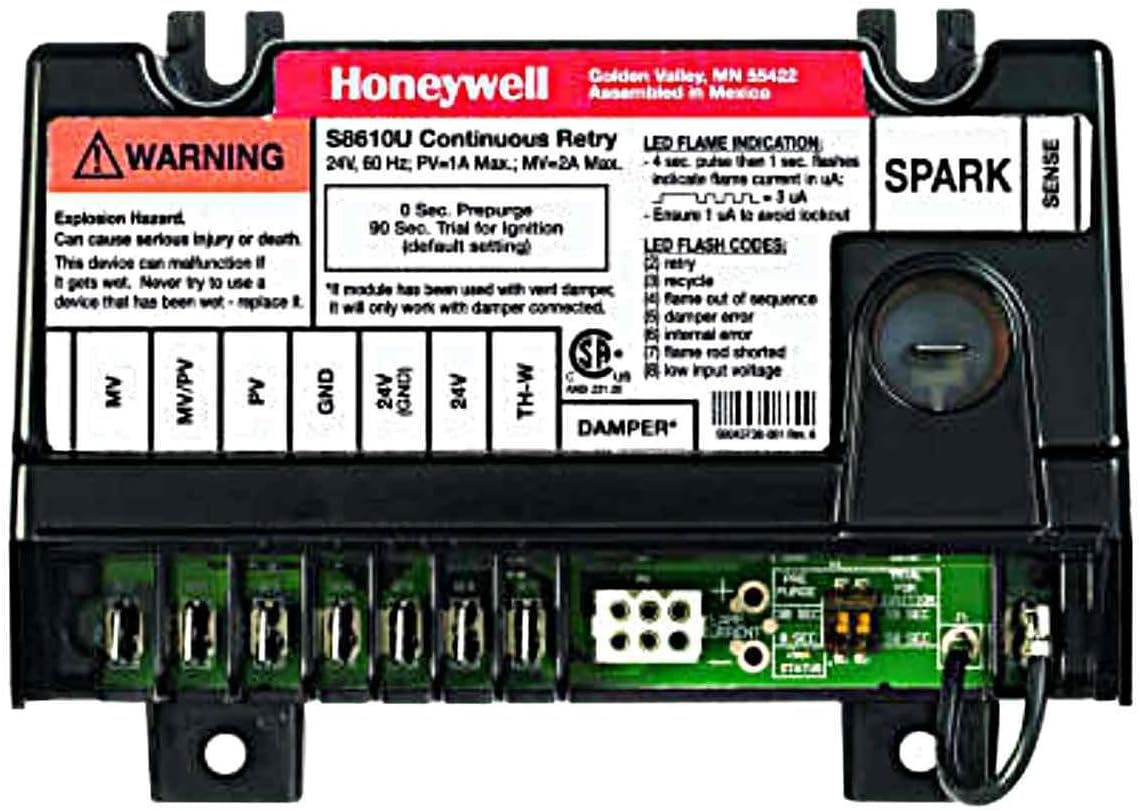

Honeywell S8610U3009 Universal Intermittent Pilot Control Module 24VAC

Product Description

The Honeywell S8610U3009 Universal Intermittent Pilot Control Module offers reliable control for pilot ignition in various heating systems, including furnaces and boilers. This module is designed for use with natural gas or liquid propane and is suitable for both single and dual rod applications.

• 24VAC control voltage
• Suitable for use with natural gas or liquid propane
• Includes damper connection with automatic vent damper plug

Product Highlights

This module features ignition sequencing, flame monitoring, and safety shut-off functions. It is a universal replacement for multiple field-installed intermittent pilot modules from various brands, including Honeywell, Robertshaw, and Johnson.

Product Information

Standard Information

• Brand: Honeywell
• MPN: S8610U3009

Technical Specifications

• Type: Universal Intermittent Pilot Control Module
• Gas Type: Natural Gas/Liquid Propane
• Control Voltage: 24VAC
• Prepurge Time: 30 seconds
• Retries: Continuous
• Amperage Rating: 1A
• Dimensions: 3-15/16 Inch L x 5-7/16 Inch W x 2-5/8 Inch D
• Electrical Connection: 1/4 Inch Spade Terminals and Molex Plugs
