Description

Product Description

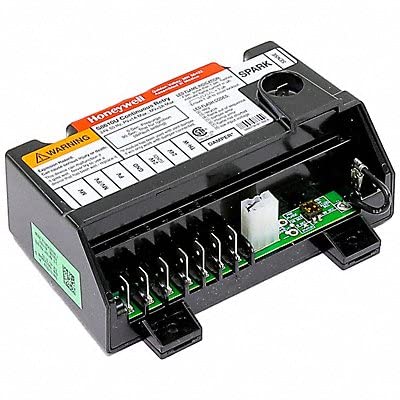

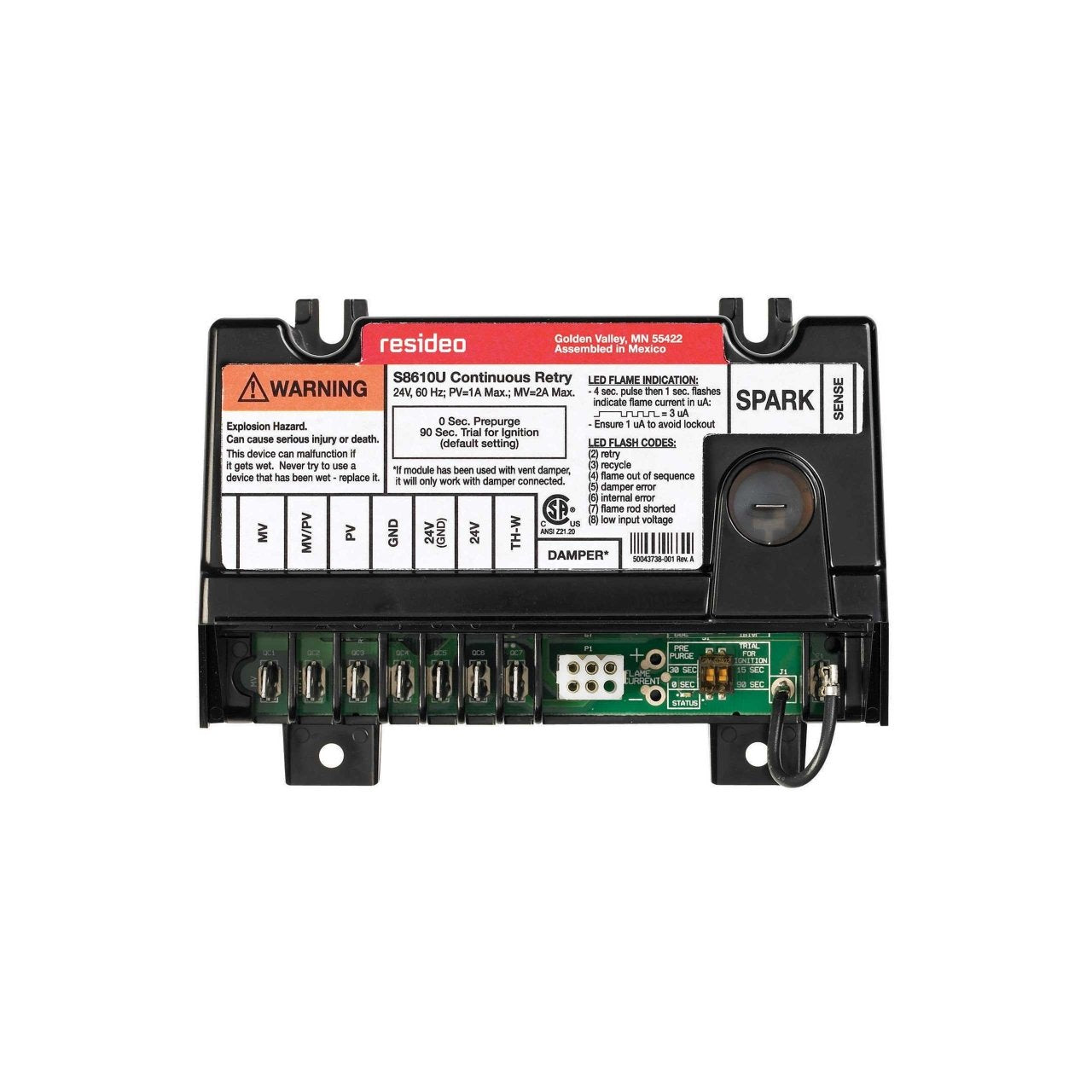

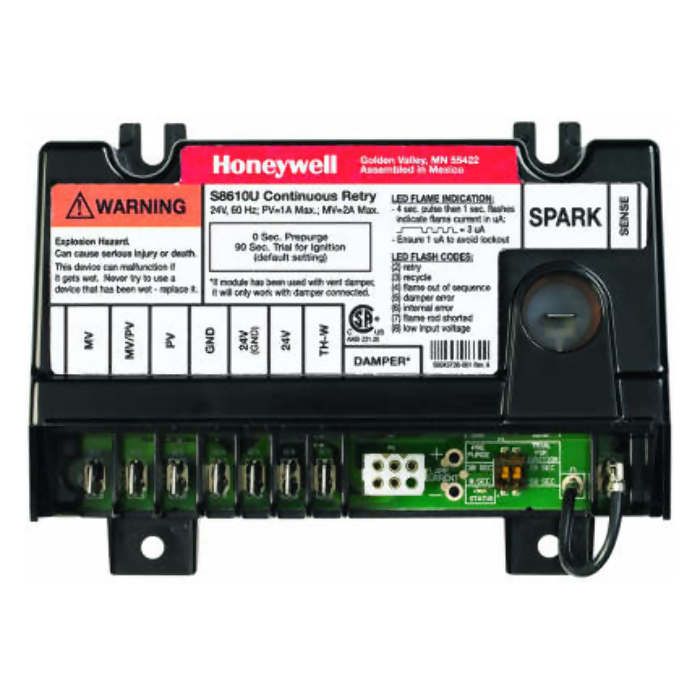

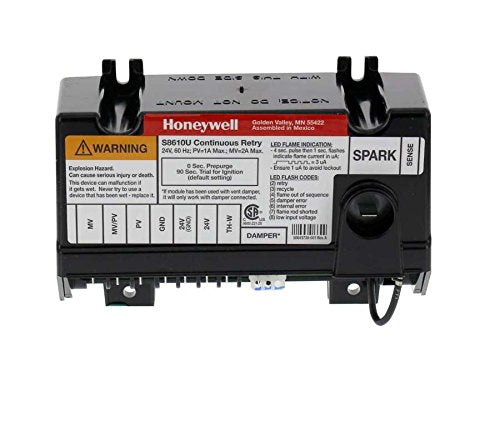

The Honeywell S8610U3009/U is a universal intermittent pilot ignition module. This module provides ignition sequencing, flame monitoring, and safety shutoff for intermittent pilot warm air furnaces and heating appliances. It replaces multiple field-installed intermittent pilot modules and uses an existing intermittent pilot burner.

  • Universal intermittent pilot ignition module
  • Replaces over 400 White-Rodgers, Robertshaw and Honeywell intermittent pilot ignition modules
  • For use with natural or LP gas

Product Highlights

The Honeywell S8610U3009/U intermittent pilot ignition module provides safety and reliability for gas-fired appliances with intermittent pilot ignition systems.

Product Information

Standard Information

  • Brand: HONEYWELL
  • Manufacturer Part Number: S8610U3009/U
  • Country of Origin: United States
Technical Specifications
Item Model Number
S8610U3009/U
Manufacturer
Honeywell
Brand
HONEYWELL
Type
Intermittent
Specifications
24 VAC
Country of Origin
MX
Domestic/Import
Import
Voltage Rating
24 V
Frequency Rating
60 Hz
Application
Intermittent Pilot
Product Features
For use with natural or LP gas, For use in single rod or dual rod or remote sense applications, Configurable to 30 sec, Universal Pilot Ignition Module, Intermittent, 24 V AC, Replaces over 400 White-Rodgers, Robertshaw and Honeywell intermittent pilot ignition modules, Provides ignition sequencing, flame monitoring and safety shutoff for intermittent pilot warm air furnaces and heating appliances, Provides 100 percent pilot gas shutoff if pilot fails to light after 6 min delay., No prepurge
Approvals and Standards
CSA: Design Certified
Type of Fuel
Natural Gas, LPG
Ignition Type
Intermittent Pilot
Ignition System Type
Intermittent Pilot
Pilot Type
Intermittent
Ignition Source
Internal high voltage spark generator
Ignition Between Trail Time
5 minute delay after failed trial for ignition.
Ignition Sequence
Continuous Retry
Ignition Trial Time
15 or 90 seconds
Ignitor Electrical Rating
24 V AC
Ignition Trials To Lockout
continuous retry
Number of Ignition Trials to Lockout
0
Pre-Purge
Configurable to 30 sec or no prepurge
Lockout Timing
Continuous Retry
Flame Failure Response Time
2 seconds maximum
Flame Sense
Two Rod, Single Rod
Early Spark Termination
Yes
Auto Reset Delay Timing
1 min
Thermostat Anticipator Rating
0.2 A plus pilot valve rating plus main valve rating
Current Draw
1 A Pilot Valve|2 A Main Valve
Power Consumption
2 VA
Load Relay Rating
24 V AC (Amps) 1 A Pilot, 2 A Main at 165 00b0F, 1A Pilot, 1A Main at 175 00b0F
Typical Ignition Hardware
Q345, Q3451, Q3452
Igniter-Sensor Rod
Dual, Single
Typical Gas Control
VR8204, VR8304
Product Depth
2.63 in, 67mm
Maximum Valve Load
1 A Pilot, 2A Main @ 165 00b0F, 1 A Pilot, 1A Main @ 175 00b0F
Power Supply Frequency
60 Hz
Frequency
60 Hz
Operating Voltage
24 V AC
Compatible With
Intermittent pilot warm air furnaces and heating appliances
For Use With
Q345, Q348, Q362, Q373, Q381, Q179C, Q354, Q345, Q348, Q362, Q373, Q381
Do Not Use With
Do Not Use the 24 V Terminal on S8610U
Includes

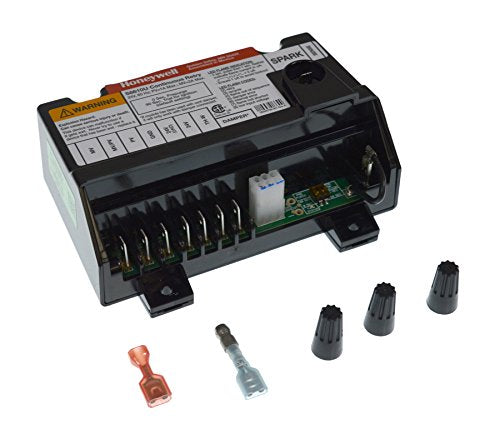

Spark cable adapters to allow field replacement of both Resideo and competitive controls without replacing existing spark cable
Product Height
3.94 in, 100 mm
Product Width
5.44 in, 138 mm
Ambient Operating Temperature (Max)
165 00b0F, 74 00b0C
Ambient Operating Temperature (Min)
-40 00b0F, -40 00b0C
Between Trial Time (sec)
5 minute delay after failed trial for ignition.
Electrical Ratings
24 Vac
Tradeline Value
Tradeline
Ambient Temperature Range (F)
-40 F to +165 F
Type of Gas
Natural or LP
Flame Failure Response Time (sec)
2 seconds maximum
Approvals
Canadian Standards Association",Design Certified
Ignition Trial Time (sec)
15 or 90 sec
Maximum Valve Load @ 24 Vac (Amps)
1A Pilot, 2A Main @ 165 F; 1A Pilot, 1A Main @ 175 F
Dimensions (in.)
3 15/16 in. high x 5 7/16 in. wide x 2 5/8 in. deep
Ambient Temperature Range (C)
-40 C to +74 C
Item Type
Product
Dimensions (mm)
100 mm high x 138 mm wide x 67 mm deep
