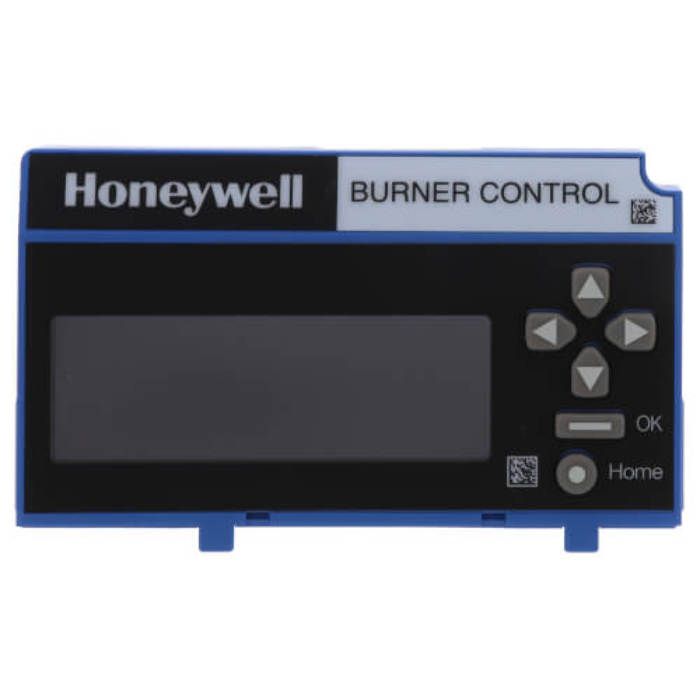

Honeywell S7800A2142/U Keyboard Display Module, 4 Line LCD

Product Description

The Honeywell S7800A2142/U is a keyboard display module designed for use with all RM7800 series burner controls. It offers a four-line LCD for clear information display. This module is essential for programming VPS and post-purge features on select models.

• Provides current burner sequence status and lockout information.
• Supports English, Spanish, and French language options.
• Includes real-time troubleshooting features.

Product Highlights

This module enhances operational management by allowing local or remote annunciation of system faults and performance metrics.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: S7800A2142/U

Technical Specifications

• Display Type: 4 Line Vacuum Fluorescent Display
• Power Requirement: 13 VDC Peak
• Maximum Power Consumption: 7 Watts
• Temperature Range: 0 F to 140 F
• Dimensions: Standard size for RM7800 series
• First-Out Annunciation: Yes
• Remote Reset Capability: Yes
• Compatibility: RM7800 Series Burner Controls
