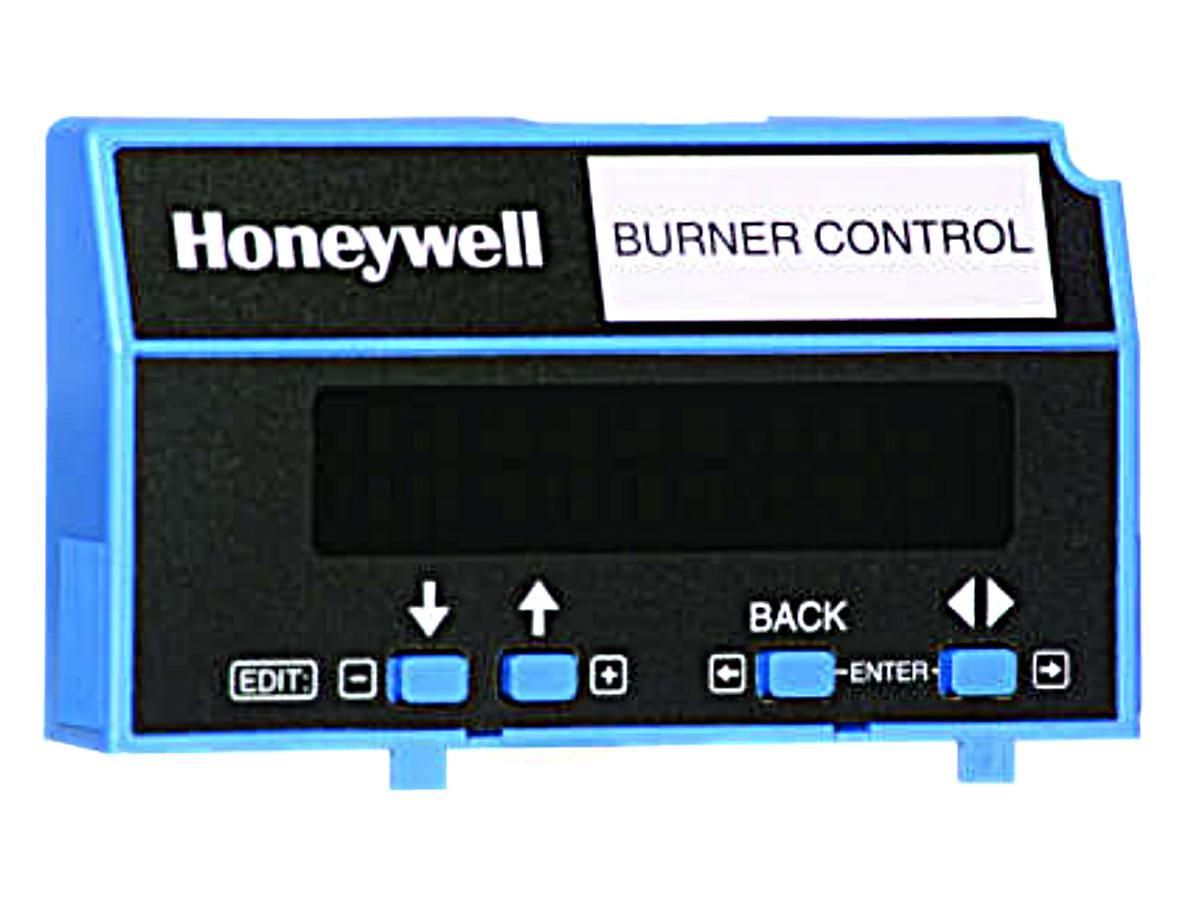

Honeywell S7800A1142/U Keyboard Display Module, English

Product Description

The Honeywell S7800A1142/U Keyboard Display Module is designed for use with the Honeywell 7800 series systems. This module provides essential information on burner sequence and operation status. It is capable of displaying special call service messages and is utilized in VPS programming, making it a vital component in managing combustion systems.

• Displays current burner status and timing information.
• Supports expanded annunciator messages with S7830A1005.
• Remote reset capability for user convenience.

Product Highlights

This device enhances system diagnostics with first-out annunciation and a 2-row by 20-column display, providing flexibility in application and remote monitoring options.

Product Information

Standard Information

• Brand: Honeywell
• MPN: S7800A1142/U

Technical Specifications

• Power Supply: 13 VDC Peak Fullwave Rectified
• Display Type: VFD (Vacuum Fluorescent Display)
• Rows and Columns: 2 Row by 20 Column
• Application Flexibility: Yes
• Remote Annunciation: Available
• First Out Annunciation: Yes
