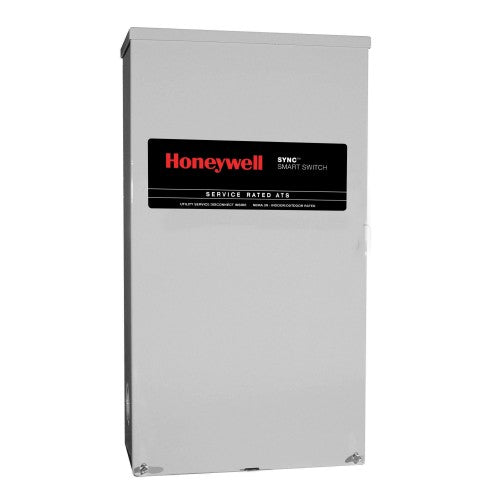

Honeywell RXSM150A3 150-Amp Smart Automatic Transfer Switch with Power Management

Product Description

The Honeywell RXSM150A3 is a 150-amp automatic transfer switch designed for use with Honeywell SYNC controllers. This switch is service entrance rated, making it suitable for installation between the main meter and the service panel. It features Direct Power Management technology, allowing the generator to cycle power on and off as needed for different appliances. This switch can manage up to four individual HVAC loads without additional hardware installation.

• Service entrance rated for load side and line side disconnect breakers.
• Capable of managing up to four HVAC loads.
• NEMA 3R rated for indoor and outdoor use.

Product Highlights

This product is designed specifically for Honeywell generators and includes features for easy load management and prioritization of power distribution.

Product Information

Standard Information

• Brand: Honeywell
• MPN: RXSM150A3

Technical Specifications

• Voltage: 120/240 Single-Phase
• Rated Amps: 150 Amps
• Rated Watts: 36000 Watts
• Frequency: 60 Hertz
• Load Transition Type: Open Transition
• Enclosure: NEMA 3R
• Overall Weight: 39 Pounds
• Dimensions: 30 inches (Length) x 13.5 inches (Width) x 7 inches (Height)
