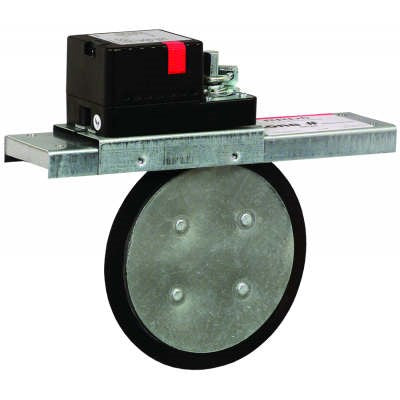

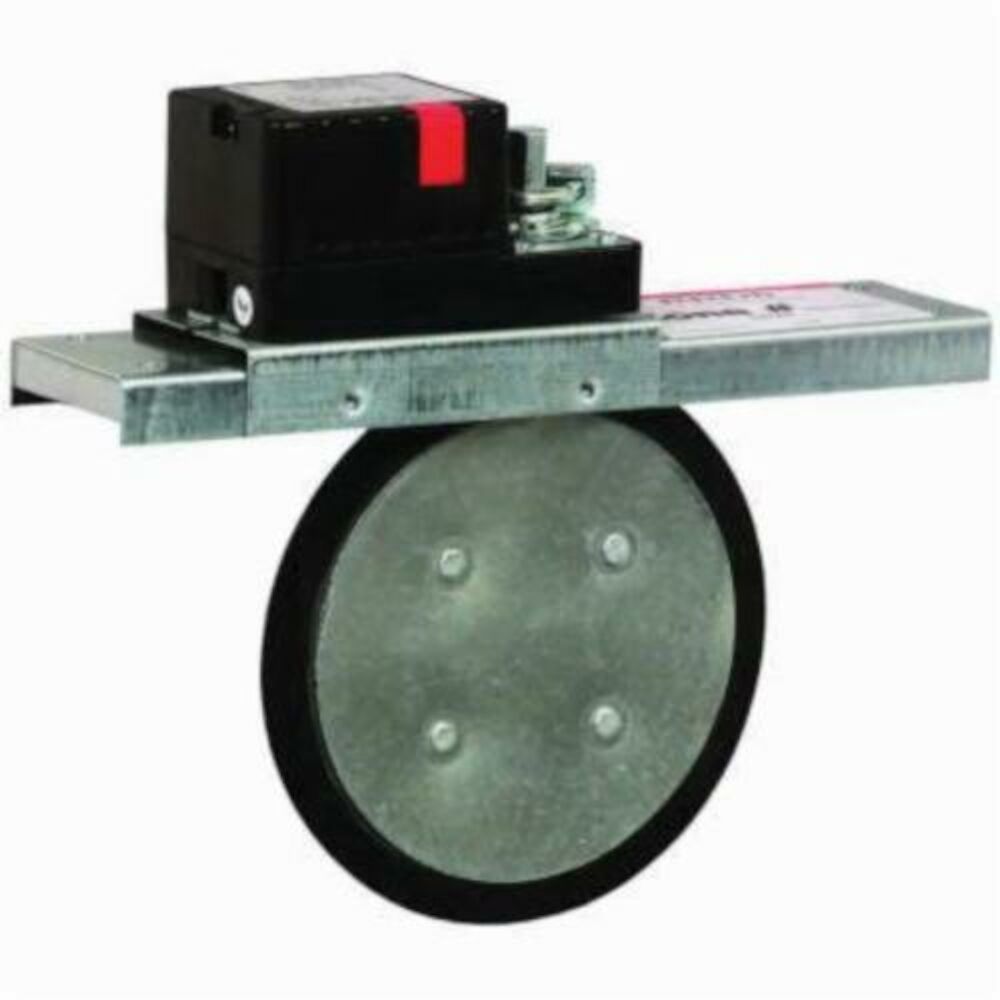

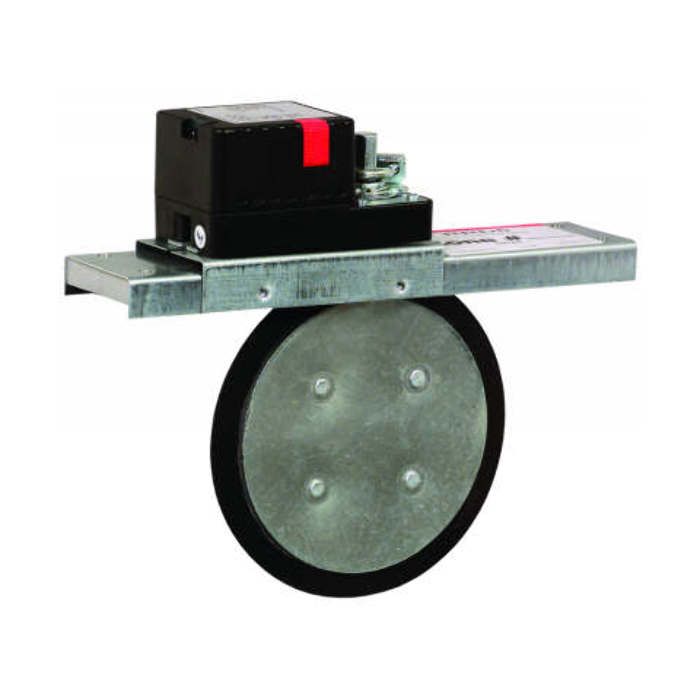

HONEYWELL RRD5/U Round Retrofit Damper

Product Description

The HONEYWELL RRD5/U is a round, low voltage damper for rigid round ducts. It is ideal for retrofit zoning in heating and cooling systems. This damper is compatible with Honeywell Home TrueZONE panels and similar zone control systems. The actuator operates on power open and power close, drawing 2.5 VA. Gaskets around the blade and motor housing enhance performance.

• Designed for five-inch ducts.
• Power open/power close actuator included.
• Manual blade positioning with push-button gear release.

Product Highlights

This damper is essential for efficient zoning in HVAC systems, allowing for better temperature control.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer: Resideo Technologies Inc.

Technical Specifications

• MPN: RRD5/U
• Damper Shape: Round
• Damper Size: 5 inches
• Voltage: 24 VAC
• Hertz: 50/60 Hz
• Motor Type: Power Open/Power Close
• Motor Timing: 90 seconds
• Electrical Connections: 3-Wire
• Rotation Angle: 90 degrees
• Operating Temperature: 41 to 122 degrees F
• Material: Steel
• Finish: Galvanized
• Dimensions: 3.18 x 2.63 x 10.75 inches
• Weight: 3 lbs
• Country of Origin: Mexico
