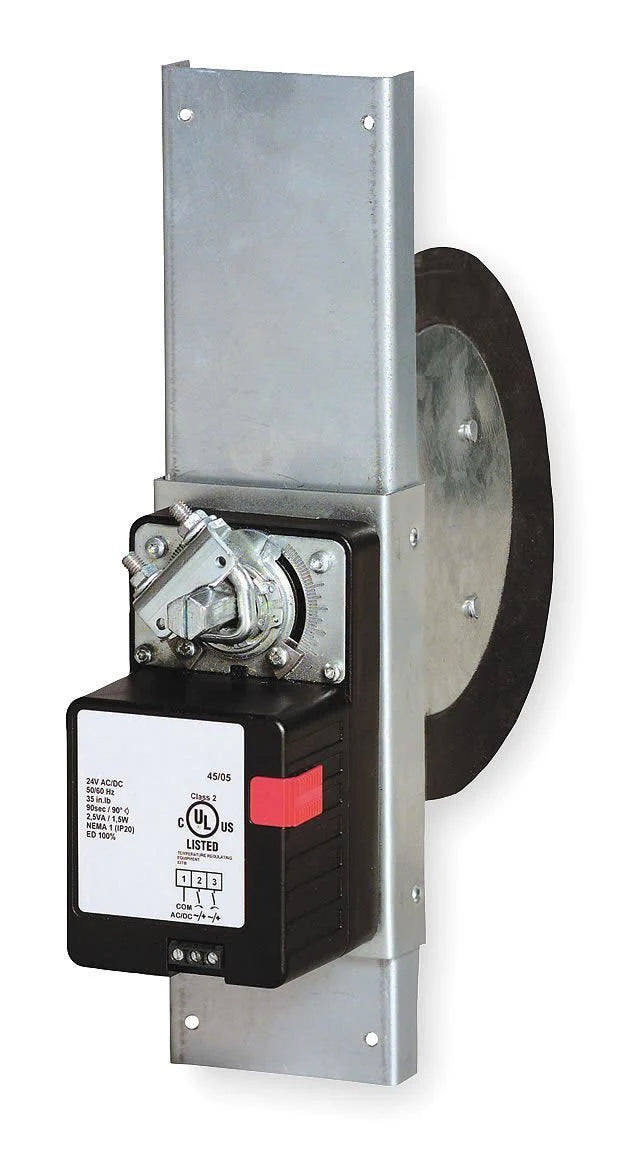

Honeywell RRD5 Round Motorized Damper 24 V 5 Inch Retrofit

Product Description

The Honeywell RRD5 Round Motorized Damper is designed for retrofit zoning applications in HVAC systems. This motorized damper has a diameter of 5 inches and operates at 24 volts. It is suitable for use in air heating and cooling systems, ensuring efficient zone control.

• Retrofit zoning damper
• Diameter of 5 inches
• Operates at 24 volts

Product Highlights

The Honeywell RRD5 damper features a power open/power close motor, ensuring reliable performance and easy integration into HVAC systems. It includes gaskets around the blade and under the motor housing for low internal leakage.

Product Information

Standard Information

• Manufacturer: Honeywell
• Model: RRD5
• Application: Air Heating and Cooling Systems

Technical Specifications

• Size: 5 inches
• Voltage Rating: 24 V
• Material: Galvanized Steel
• Frequency: 50/60Hz
• Amperage Rating: 2.5 VA
• Rotation Angle: 90 degrees
• Timing: 90 seconds
• Temperature Rating: 40 degrees F
• Electrical Connection: 3-Wire
• Finish: Galvanized
• Series: RRD
• Motor Type: Power Open/Power Close
• Country of Origin: United States
