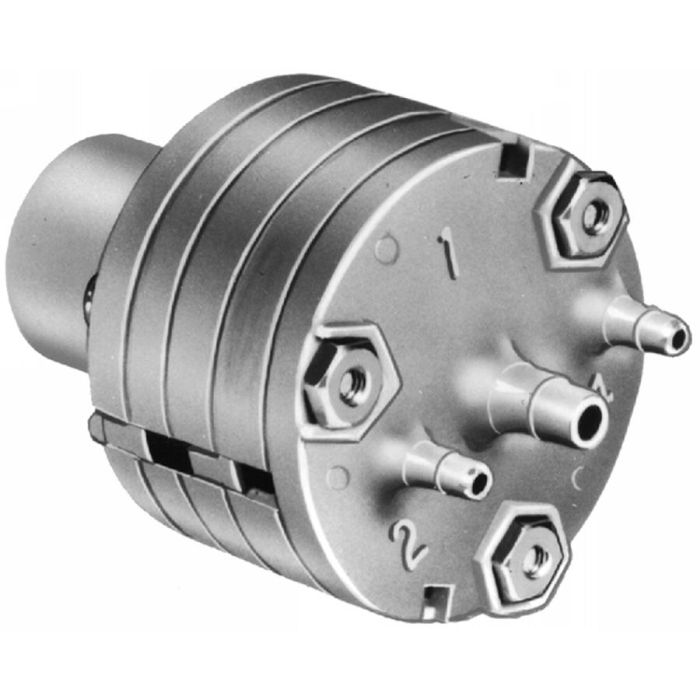

Honeywell RP972A1006/U Pneumatic Reversing Relay with Mounting Clips Replaces RP972A1030

Product Description

The Honeywell RP972A1006/U is a pneumatic reversing relay designed for use in various heating and air conditioning systems. The relay output varies inversely with the input and comes with an adjustable offset. It can mount on the wall or inline, making it suitable for diverse applications.

• In-line or wall panel mounting options
• Adjustable output based on the input signal
• Includes a mounting clip for easy installation

Product Highlights

This pneumatic reversing relay is ideal for commercial applications and HVAC controls, enhancing system efficiency and functionality.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: RP972A1006/U

Technical Specifications

• Application: Pneumatic Reversing Relay
• Airflow Usage: 0.002 scfm (1.0 mL/s) maximum
• Dimensions: 1.5 inches diameter x 2.25 inches deep
• Maximum Safe Operating Pressure: 30 psi (205 kPa) maximum
• Temperature Range: 0°F to 140°F (-18°C to +60°C)
• Mounting: Wall, inline, or panel
• Operating Humidity Range: 5% to 95% RH
• Action: Reverse Acting
• Air connections: Barb fittings for three 5/32 inches (4 mm) and one 1/4 inches (6 mm) O.D. plastic tubing
• Mounting Clip Included: Yes
• Operation: Output varies inversely with input with an adjustable offset
