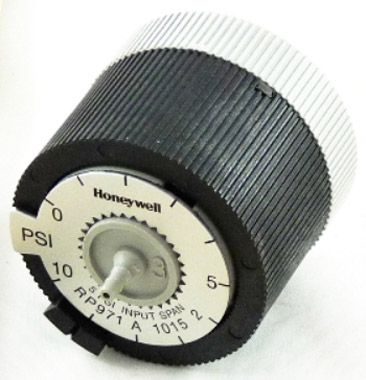

HONEYWELL RP971A1015 Ratio Relay 5 PSI Input Span 4-Port Configuration

Product Description

The Honeywell RP971A1015 is a 4-port pneumatic ratio relay designed to provide precise control over HVAC pneumatic valves and damper actuators from a single thermostat. This model offers a 5 PSI input span for a flexible 3-13 PSI output range.

• Adjustable pilot start pressures for tailored operation.
• Durable molded plastic construction with neoprene diaphragms.
• Includes a standard mounting clip for easy installation.

Product Highlights

Capable of handling airflow of 0.002 scfm with maximum safety operating pressure of 30 PSI. Ideal for industrial automation and control systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: RP971A1015

Technical Specifications

• Type: Pneumatic, Four Port Ratio Relay
• Action: Direct Acting
• Operation: Produces modulating pressure output proportional to pilot pressure input changes
• Capacity: 0.039 scfm at 1 psi differential
• Mounting: Wall or In-line or panel
• Temperature Range: 0 F to 140 F
