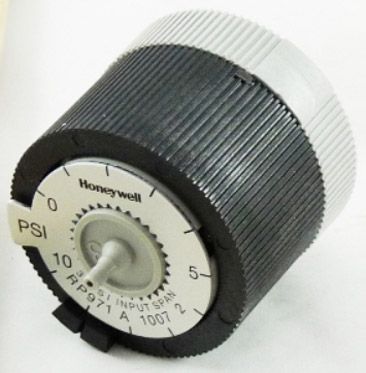

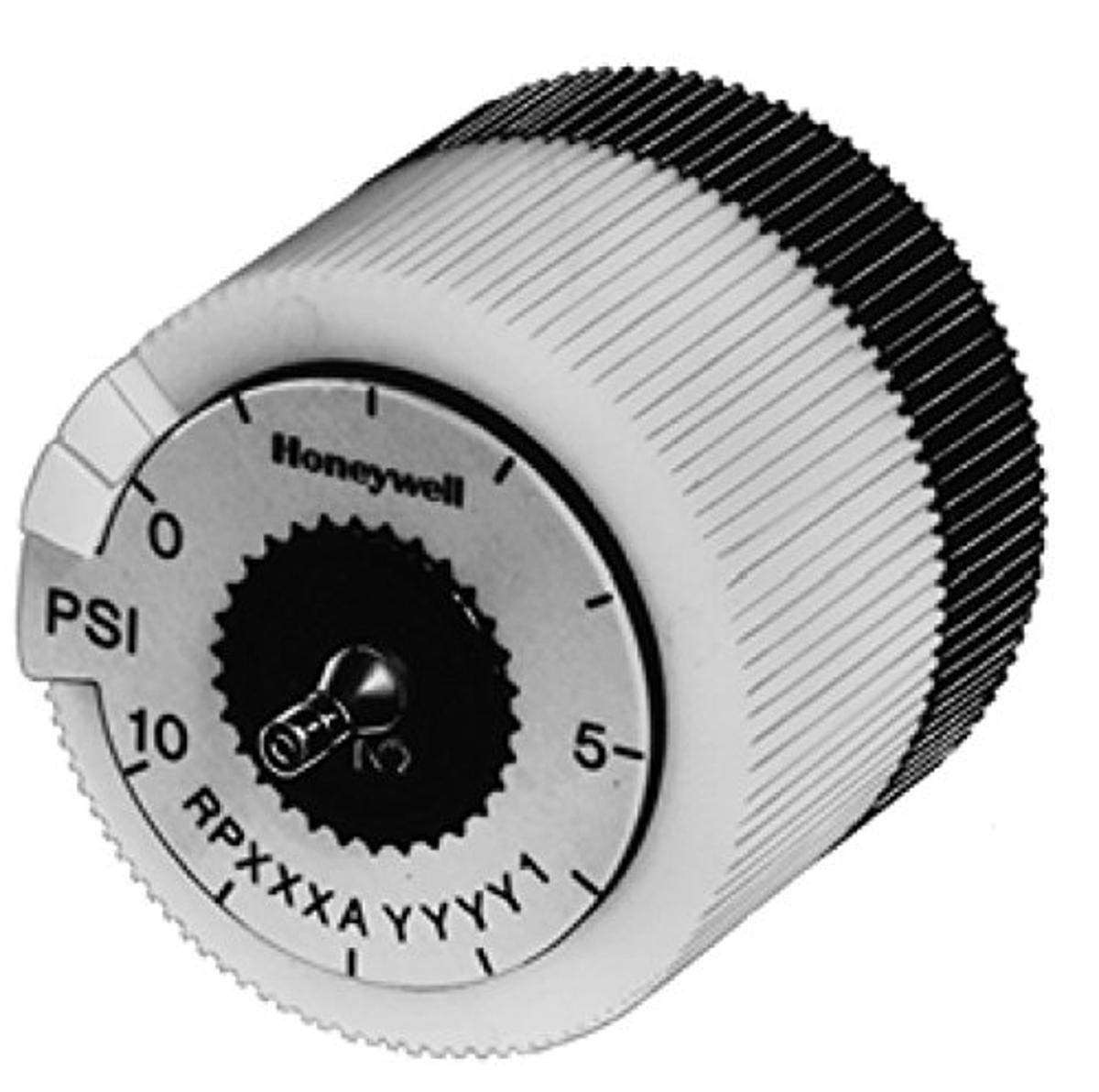

Honeywell RP971A1007 Pneumatic Ratio Delay 3 psi

Product Description

The Honeywell RP971A1007 Pneumatic Ratio Delay provides reliable control of pneumatic valves and damper actuators. It produces a modulating pressure output proportional to pilot input changes, ideal for industrial automation.

• Adjustable pilot start point pressures
• Four sharp-barb air connections
• Wall, in-line, or panel mounting

Product Highlights

This pneumatic relay from Honeywell is designed for durability and precise operation. It features molded plastic construction with neoprene diaphragms and stainless steel components. The RP971A1007 can replace older devices from various manufacturers.

Product Information

Standard Information

• Product Name: Honeywell RP971A1007 Pneumatic Ratio Delay, 3 psi
• Brand: Honeywell
• MPN: RP971A1007

Technical Specifications

• Description: Four port non-bleed pneumatic relay
• Type: Pneumatic, Four Port Ratio Relay
• Operation: Produces modulating pressure output
• Airflow Usage: 0.002 scfm (1.0 mL/s) maximum
• Air Connections: 1/4 in. (6 mm) and 5/32 in. (4 mm) plastic tubing
• Capacity: 0.039 scfm at 1 psi differential
• Mounting: Wall, in-line, or panel
• Operating Pressure: Up to 30 psi
• Operating Humidity: 5% to 95% RH
• Temperature Range: 0 F to 140 F
• Output Span: 3 to 13 psi
• Pilot Start Pressure: Adjustable 0 to 10 psi
