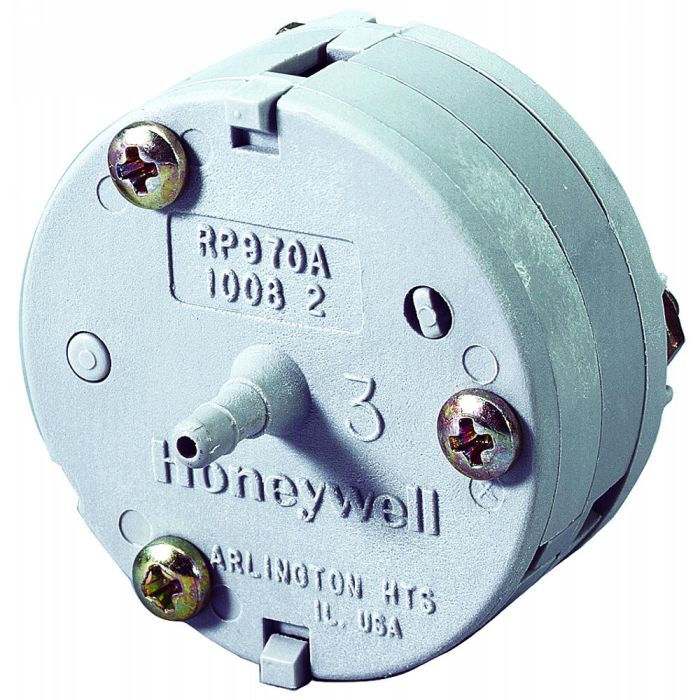

Honeywell RP970A1008/U Pneumatic Capacity Relay 0 to 20 psi

Product Description

The Honeywell RP970A1008/U is a pneumatic capacity relay designed to provide increased capacity of branch line pressure to the final control device. This relay can be mounted on a wall, in-line, or on a panel. It includes a mounting clip for easy installation. This product operates at a pressure range of zero to twenty psi.

• Sharp barb air connections
• Molded plastic construction with neoprene diaphragms
• Includes a one and a half-inch mounting clip

Product Highlights

This relay is ideal for pneumatics systems needing reliable pressure control, suitable for various applications across commercial buildings.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: RP970A1008/U

Technical Specifications

• Application: Pneumatic Capacity Relay
• Airflow Usage: 0.002 scfm (1.0 mL/s) maximum
• Dimensions: One and a half inches diameter, one and a half inches deep
• Maximum Safe Operating Pressure: 30 psi
• Temperature Range: 0 F to 140 F
• Includes: Mounting clip (14003030-001)
• Mounting: Wall or panel
• Operating Humidity Range: 5 to 95% RH
• Direct Acting Action
• Air Connections: Barb fittings
• Capacity: 0.039 scfm at 1 psi differential
