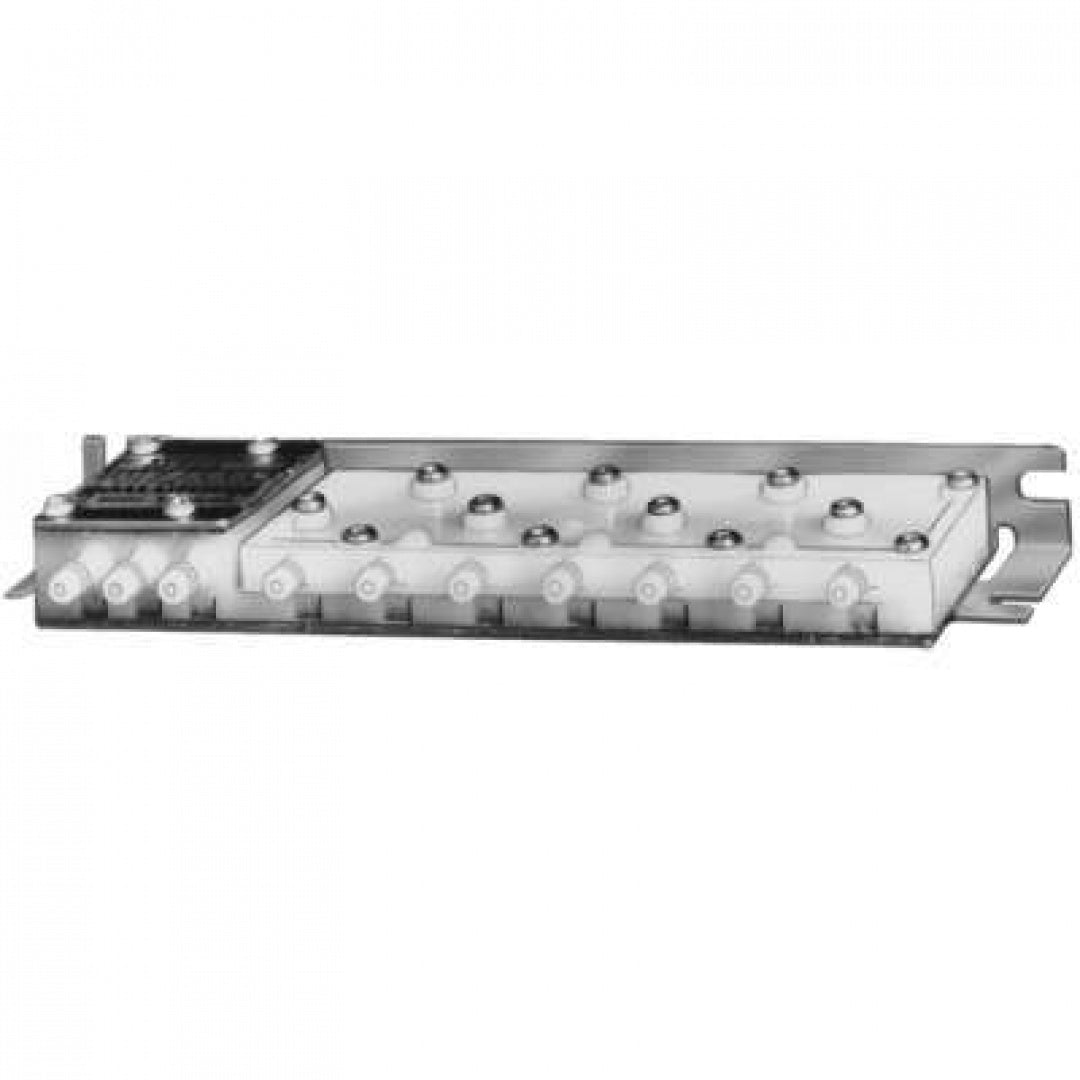

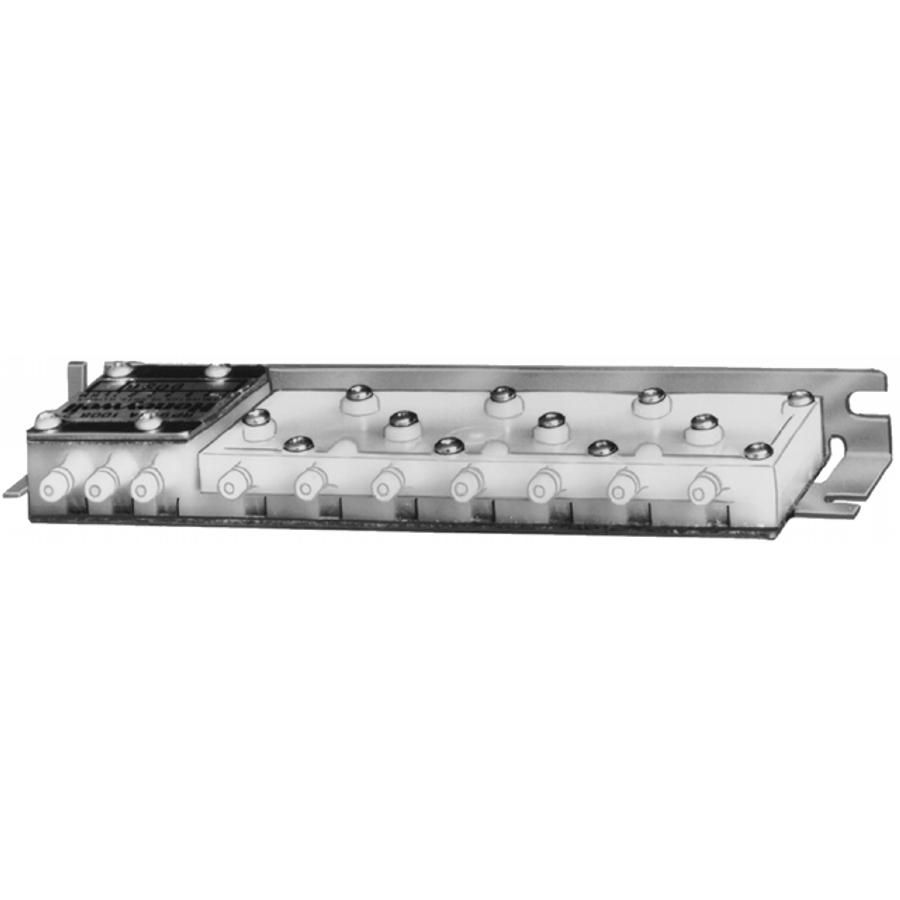

Honeywell RP913A1008/U Pneumatic Load Analyzer

Product Description

The Honeywell RP913A1008/U is a pneumatic load analyzer designed for optimal control in HVAC applications. This device effectively selects the highest and/or lowest branch pressure input to operate final control elements efficiently. It features seven input points and is compatible with 1/4 inch O.D. plastic tubing.

• Seven input manifold with a logic diaphragm
• Requires no field adjustment and minimizes maintenance
• Can connect two analyzers to increase inputs to twelve

Product Highlights

This unit is suitable for wall, inline, or panel mounting, making it versatile for various installations.

Product Information

Standard Information

• Application: Load Analyzer Relay, seven input
• Manufacturer: Honeywell

Technical Specifications

• Airflow Usage: 0.04 scfm (0.019 mL/s)
• Dimensions: Three-fourths inch high x six and one-half inches long x two and one-sixteenth inches deep
• Max Safe Operating Pressure: 25 psi (172 kPa)
• Temperature Range: 0°F to 140°F (-18°C to +60°C)
• Mounting: Wall, inline, or panel
• Operating Humidity Range: 5 to 95% RH
• Air Connections: Ten barb fittings for 1/4 inch O.D. plastic tubing
• Capacity: 0.039 scfm at 1 psi differential (18 mL/s at 5 kPa differential)
• Operation: Selects highest and/or lowest branch pressure input to operate final control elements
