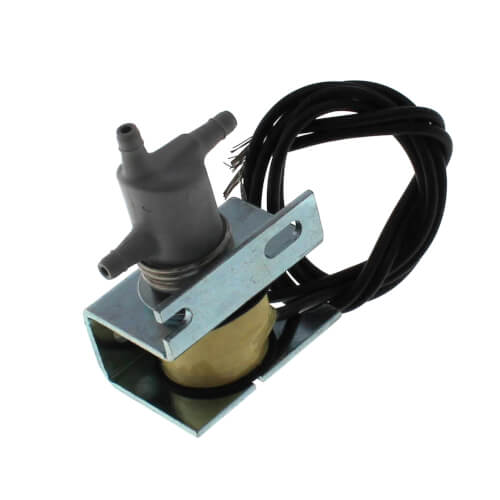

Honeywell RP819B1010 24v Pneumatic Relay

Product Description

The Honeywell RP819B1010 24v Pneumatic Relay is crafted for industrial automation purposes. It's suitable for a variety of pneumatic control systems thanks to its rugged construction and adjustable pressure settings.

• 24-volt operation
• Adjustable pressure settings
• High-flow capacity

Product Highlights

Honeywell's RP819B1010 24v Pneumatic Relay is built to ensure reliability in various industrial settings. Its compact design simplifies installation, while adjustable pressure settings make it ideal for multiple applications.

Product Information

Standard Information

• Brand: Honeywell
• MPN: RP819B1010

Technical Specifications

• Description: 24 Vac Surface Mounted Electric / Pneumatic Relay
• Type: Electric / Pneumatic Relay
• Operation: Energized: ports 1 and 3 connected, port 2 blocked; De-energized: ports 2 and 3 connected, port 1 blocked
• Airflow Usage: 0.42 scfm at 20 psi supply with 1 psi pressure drop
• Capacity (Cv): 0.075 Cv minimum
• Air Connections: Barb fittings for 1/4 in. plastic tubing
• Electrical Connections: 15 in. leads
• Frequency: 60 Hz
• Mounting: Panel
• Maximum Safe Operating Pressure: 50 psi
• Operating Humidity Range: 5 to 95% RH
• Temperature Range: 0 F to 100 F
• Voltage Rating at 60 Hz: 24 Vac
