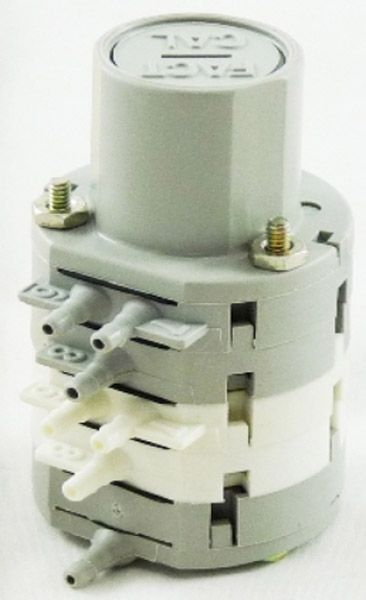

Honeywell RP670B1074 Pneumatic DPDT Relay 20-25 PSI

Product Description

The Honeywell RP670B1074 Pneumatic Relay is a reliable solution for controlling industrial applications. This DPDT relay with dual switching capabilities makes it ideal for managing solenoid valves, motors, and other pneumatic devices.

• Designed for demanding industrial applications
• Precise switching with 2-SPDT configuration
• Operates under pressure range of 20-25 PSI

Product Highlights

This relay blocks, bleeds, or diverts air lines when pilot pressure changes between 20 and 25 psi. Its robust construction ensures high performance even in harsh environments. Suitable for use in pneumatic heating and cooling control systems where circuit switching is required.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: RP670B1074

Technical Specifications

• Type: Pneumatic Switching Relay
• Operation: DPDT relay
• Capacity: 0.039 scfm at 1 psi differential
• Air Connections: Barb fittings 5/32 inches O.D. plastic tubing
• Maximum Safe Operating Pressure: 30 psi
• Differential Pressure Range: 1 psi maximum
• Nominal Switch Differential: 0.5 psi
• Setpoint Range: Adjustable between 3 to 15 psi
• Mounting: Wall or Panel
• Operating Humidity Range: 5 to 95% RH
• Dimensions: 1.5 inches diameter x 2.8 inches deep
• Temperature Range: 0 F to 140 F
• Includes: 14003030-001, 1.5 inches Mounting Clip
• Switching Occurs Between Pressures: 20 and 25 psi
