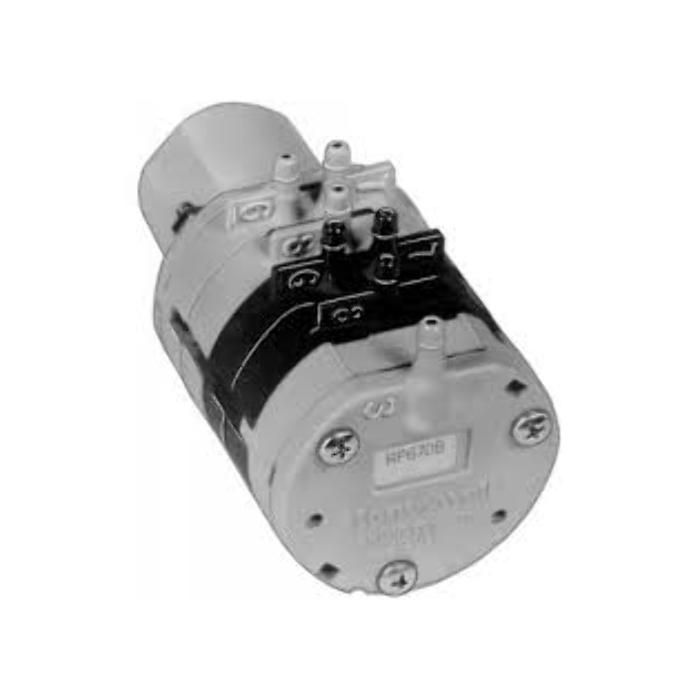

Honeywell RP670B1017/U Pneumatic Switching Relay

Product Description

The Honeywell RP670B1017/U is a pneumatic switching relay designed for effective pneumatic control. It operates using a double-pole double-throw (DPDT) system and is suitable for applications involving pressure switches. This relay facilitates actions such as blocking, diverting, or bleeding pneumatic air lines based on changes in pilot pressure.

• Durable molded plastic construction.
• Equipped with neoprene diaphragms and stainless steel lever.
• Includes a 1-1/2 inch mounting clip for diverse installation options.

Product Highlights

This switching relay offers reliable performance in various pneumatic applications, including commercial building controls.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: RP670B1017/U

Technical Specifications

• Application: Pneumatic Switching Relay
• Dimensions: 1 1/2 inches diameter x 2 13/16 inches deep
• Maximum Safe Operating Pressure: 30 psi
• Temperature Range: 0 F to 140 F
• Operating Humidity Range: 5 to 95% RH
• Pressure Range: Switching occurs between 13 and 17 psi
• Air Connections: Barb fittings for 5/32 inch tubing
• Capacity: 0.039 scfm at 1 psi differential
