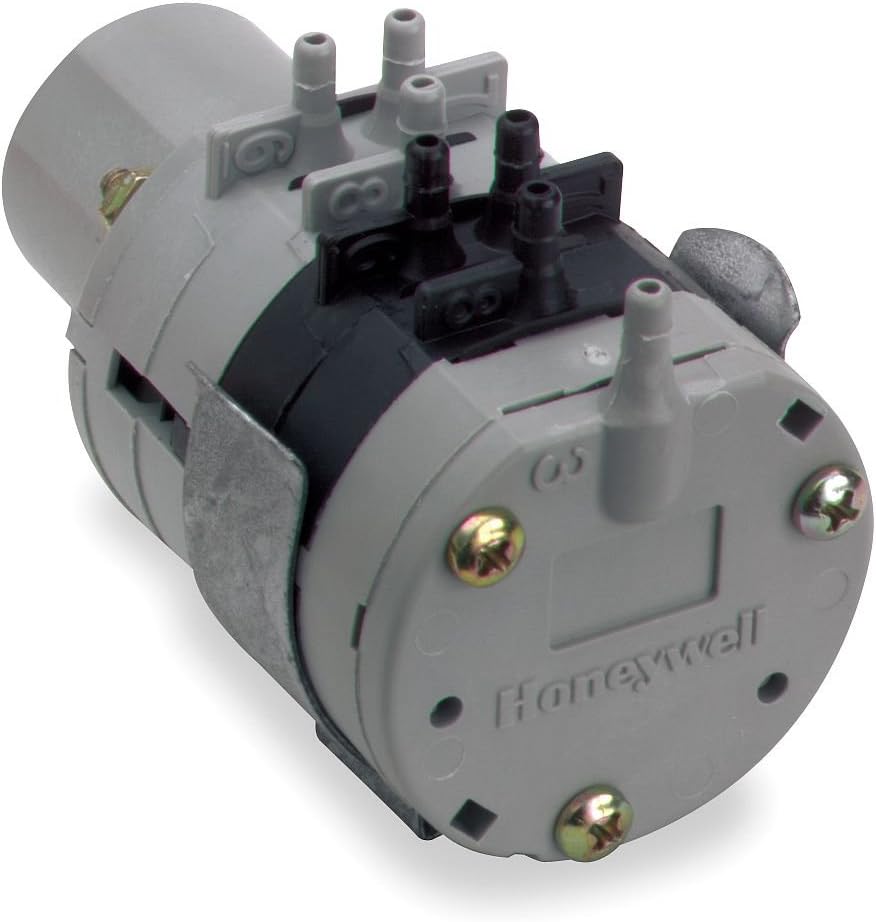

Honeywell RP670B1017 Pneumatic Switching Relay DPDT 13 and 17 PSI

Product Description

The Honeywell RP670B1017 is a robust pneumatic switching relay designed for rigorous conditions in HVAC control systems. It features a DPDT switching mechanism accommodating pressures between 13 and 17 psi. This device is essential for managing air flow and pressure within heating and cooling systems.

• DPDT switching action for reliable operation.
• Supports 13 to 17 psi for versatile use.
• Molded plastic construction with neoprene diaphragms and stainless steel lever.

Product Highlights

The RP670B1017 is notable for its durable construction and precise control, making it suitable for both commercial and industrial environments. It is engineered to function seamlessly within a wide temperature range from 0 to 140 degrees Fahrenheit and can handle a maximum safe operating pressure of 30 psi.

Technical Specifications

• Type: Pneumatic Switching Relay
• Operation: DPDT relay
• Capacity: 0.039 scfm at 1 psi differential
• Air Connections: Barb fittings for 5/32 inch O.D. plastic tubing
• Switching Range: 13 to 17 psi
• Mounting Options: Wall or panel mounting with provided metal spring clip
• Dimensions: 1-1/2 inches diameter x 2-13/16 inches deep
• Operating Humidity Range: 5 to 95% RH
