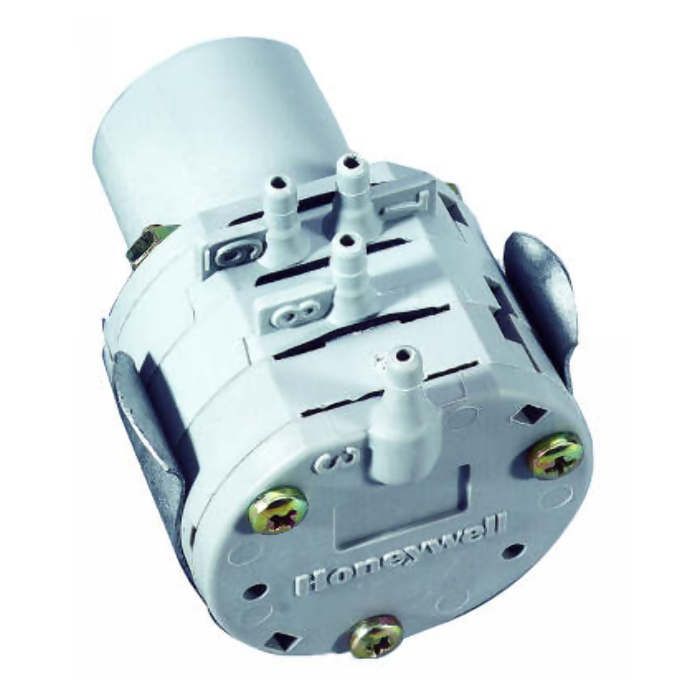

Honeywell RP670A1019/U Pneumatic Switching Relay 13-17 PSI

Product Description

The HONEYWELL RP670A1019/U is a pneumatic switching relay designed for SPDT operation. It functions by blocking, diverting, or bleeding pneumatic air lines when pilot pressure changes between 13 and 17 psi. This relay is suitable for wall, in-line, or panel mounting, and includes a 1-1/2 inch mounting clip for installation. It is commonly used in multiple condition systems such as Day-Night, Summer-Winter, and Start-Stop applications.

• SPDT relay operation with switching occurring between 13 and 17 psi.
• Features molded plastic construction with neoprene diaphragms and a stainless steel lever.
• Supports wall, in-line, or panel mounting, including a 1-1/2 inch mounting clip.

Product Highlights

SPDT pneumatic switching relay with 13-17 psi switchpoint, suitable for various mounting options.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: RP670A1019/U

Technical Specifications

• Application: Pneumatic Switching Relay
• Maximum Safe Operating Pressure (psi): 30 psi
• Maximum Safe Operating Pressure (kPa): 205 kPa
• Operating Temperature (F): 0 F to 140 F
• Operating Temperature (C): -18 C to +60 C
• Included Accessories: 14003030-001, 1 1/2 in. Mounting Clip
• Operating Humidity: 5 to 95% RH
• Switching Pressure Range (psi): 13 to 17 psi
• Switching Pressure Range (kPa): 90 to 120 kPa
• Air Connections: Barb fittings 5/32 in. (4 mm) O.D. plastic tubing
• Capacity: 0.039 scfm at 1 psi differential (18 mL/s at 5 kPa differential)
• Operation Type: SPDT relay
• Category: Commercial Building Controls
• Manufacturer: HONEYWELL
• Product Type: Pneumatic Products
• Product Subcategory: Pressure Switches
• Mounting Type: Wall, In-Line, Or Panel Mounting
• Mounting Clip Size: 1-1/2 in.
• Construction Material: Molded Plastic
• Diaphragm Material: Neoprene
• Lever Material: Stainless Steel
